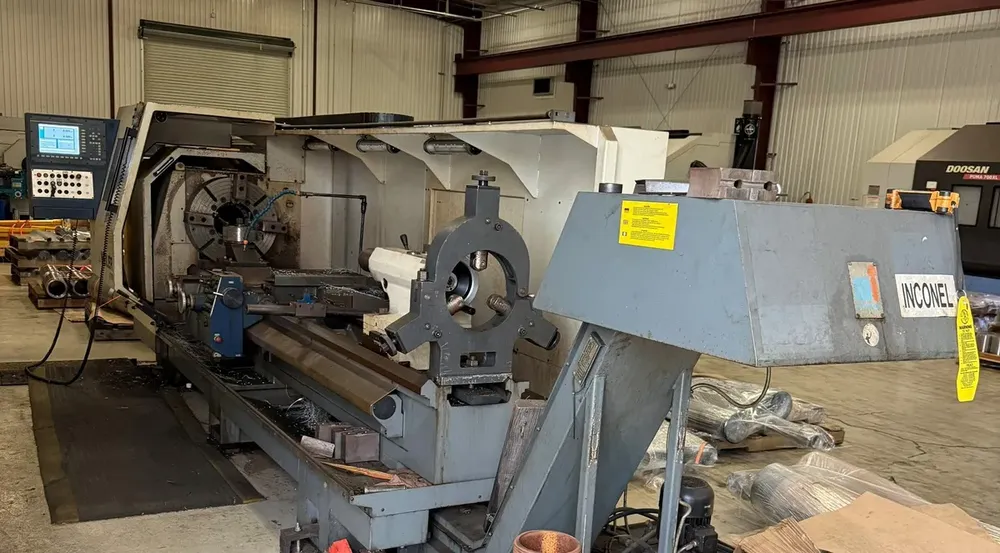

Weiler WEILER CNC 1200 rpm E70/3000

X Axis Travel: 16.1 in
Z Axis Travel: 118 in
Rapid Traverse Rate X Axis: 197 in/min
Rapid Traverse Rate Z Axis: 394 in/min
Control: WEILER CNC
Hand Held MPG
Swing Over Bed: 28.3 in
Machining Length: 118 in
Turning Diameter: 16.5 in
Spindle Bore: 8.5 in
Bar Capacity: 8.5 in
Spindle Speed: 1200 rpm
Spindle Motor: 50 hp
Spindle Nose: DIN ISO 702 Size 15
Spindle Torque: 2331
Gear Ranges: 2
24 in Front 4 Jaw Chuck
24 in Rear 4 Jaw Chuck
10.5 in Through Hole
Tailstock
Tailstock Quill Diameter: 4.5 in
Tailstock Taper: MT 6
Tailstock Quill Travel: 8.85 in
2 Axis
Threading Capability
Metric Thread Range: 0.1 – 2000 mm
Inch Thread Range: 112 – 1/64 TPI
Modular Thread Range: 0.05 – 56 mm
Diametral Thread Range: 448 – 0.05 DP
Maximum Thread Courses: 360
Steady Rest
Chip Conveyor
All Available Tool Holders
All Available Manuals
