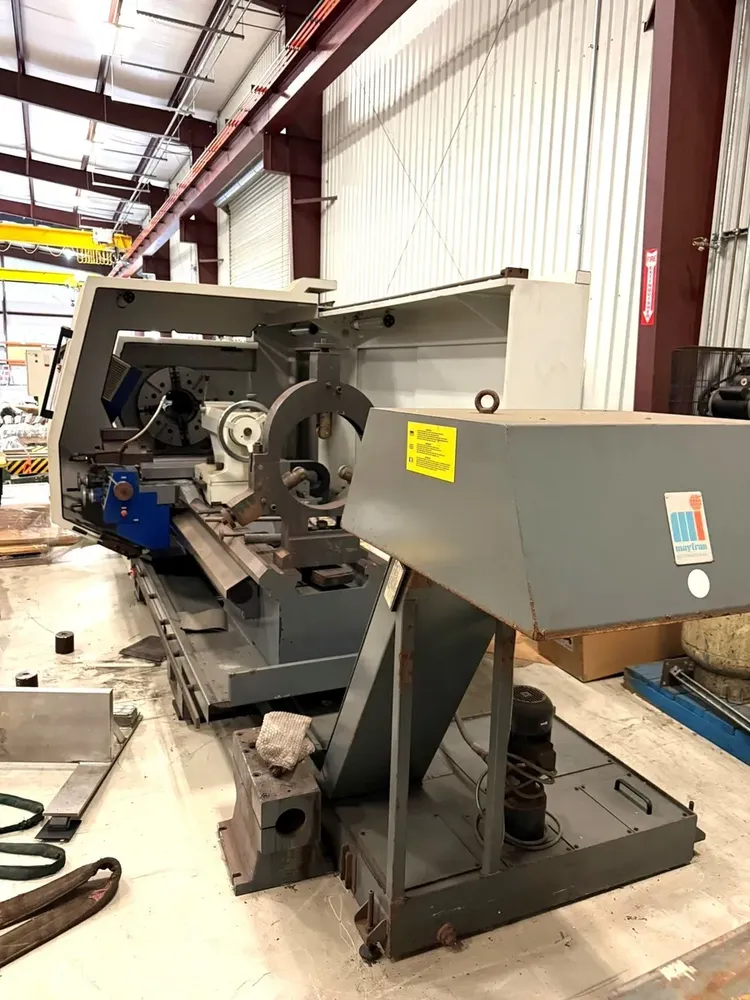

Weiler WEILER Teach In / Cycle Control 700 rpm E90 3000 2 Axis

X Axis Travel: 23.23 in
Z Axis Travel: 230 in
Rapid Traverse Rate X Axis: 197 in/min
Rapid Traverse Rate Z Axis: 394 in/min
Control: WEILER Teach In / Cycle Control
Hand Held MPG
Swing Over Bed: 35.43 in
Machining Length: 118.11 in
Turning Diameter: 23 in
Spindle Bore: 10.3 in
Bar Capacity: 10.3 in
Spindle Speed: 700 rpm
Spindle Motor: 60 hp
Spindle Nose: DIN ISO 702-1 Size 20
Spindle Torque: 4400
Gear Ranges: 2
32 in Front 4 Jaw Manual Chuck
32 in Rear 4 Jaw Manual Chuck
12.5 in Chuck Hole
10.3 in Through Bore
Tailstock
Tailstock Quill Diameter: 5.51 in
Tailstock Taper: MT 6
Tailstock Quill Travel: 11.81 in
2 Axis
Manual Turning
Threading Cycles
Metric Thread Range: 0.1 – 2000 mm
Inch Thread Range: 112 – 1/64 TPI
Modular Thread Range: 0.05 – 56 mm
Diametral Thread Range: 448 – 0.05 DP
Maximum Thread Courses: 360
Manual Steady Rest
Boring Bar Cross Slide Attachment
Chip Conveyor
Power Requirements: 400 – 480V / 3 Phase
AC Vector Drive with Gearbox
Machine Weight: 24250 lb
