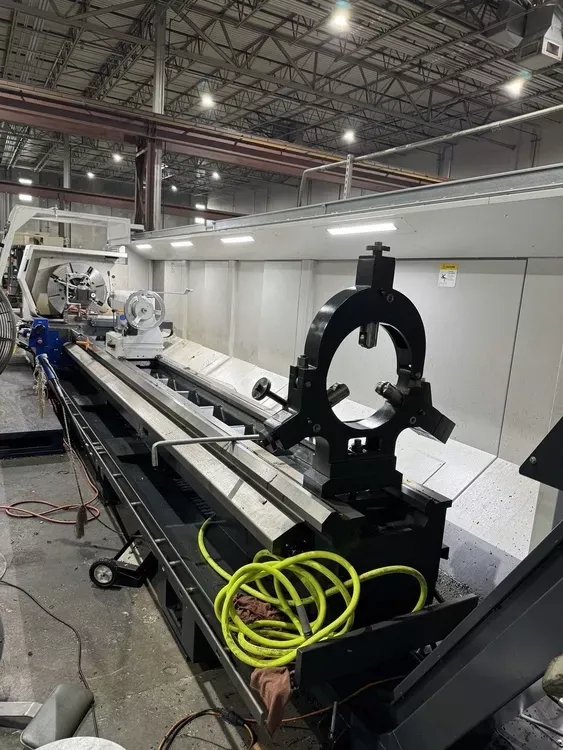

Weiler WEILER ONE1 CNC color control 500 rpm E90 6000 2 Axis

X-axis travel: 23.23 in
Z-axis travel: 230 in
Rapid traverse X-axis: 197 in/min
Rapid traverse Z-axis: 394 in/min
Number of axes: 2
Control: CNC
Control system: WEILER ONE1 CNC color control
Siemens CNC platform
CAD/CAM DXF import
External G-code capability
Simulation
USB interface
Network interface
Handheld MPG
22 in TFT color screen
Graphical user interface
Tool management database: 300 tools
Manual machinist operation mode
Grooving and part-off cycles
Drilling cycle
Thread cutting and re-cutting cycle
Swing over bed: 35.43 in
Machining length: 236 in
Distance between centers: 236 in
Spindle speed: 500 rpm
Spindle horsepower: 60 hp
Spindle torque: 4400
Spindle nose: DIN ISO 702-1 size 20
Spindle bore diameter: 14.25 in
Spindle bar capacity: 14.25 in
Gear ranges: 2
Live tooling: No
Sub-spindle: No
Chuck size: 32 in
Second chuck size: 32 in
4-jaw manual chuck
Quick-change indexable tool post size 4
Turret and facing holders: 4
Boring bar holders: 2
Tailstock: Yes
Tailstock quill diameter: 5.51 in
Tailstock taper: MT 6
Tailstock quill travel: 5.51 in
Rear quill adjustable from front
Steady rest with roller jaws: 8.6–15.75 in diameter
Extended quills for roller jaws: 0.787–8.66 in diameter
Removable boring bar block: 4 in diameter
Chip conveyor
Increased coolant capacity
Weight: 0.00
