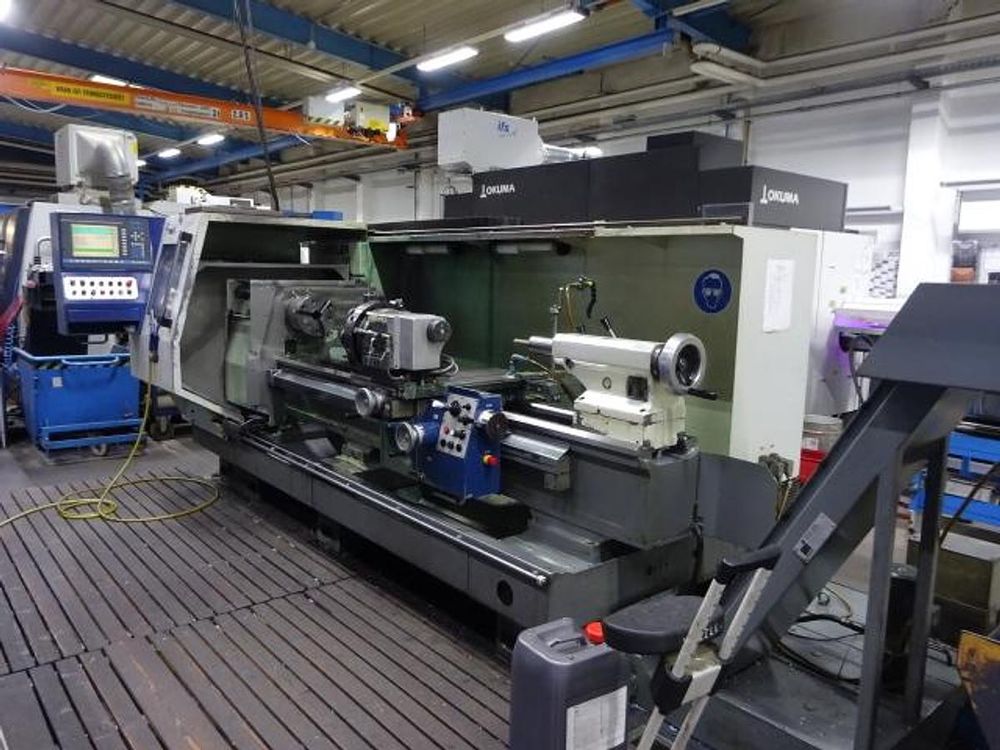

Weiler CNC control WEILER SIEMENS 810D 2500 rpm E50 - 2000 2 Axis
Ref :
2761721-3-GO
Condition :
Used
Manufacturer :
Weiler
Controller :
CNC control WEILER SIEMENS 810D
Spindle Speed :
2500 rpm
Model :
E50 - 2000
Nb Of Axis :
2 Axis
Year(s) :
2002
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X travel (via slide gate circulation diameter) 340 mm
Center distance 2000 mm
Swing over bed 570 mm
Tip height 280 mm
Spindle bore 83 mm
Main motor 20/17 kW
Spindle speed range 1–2500 rpm
Maximum torque 1300–1600 Nm
Turret 8 stations VDI40
Tailstock quill diameter 80 mm
Tailstock taper MK5
Machine dimensions 3850 × 1850 × 1750 mm
Machine weight 4200 kg
