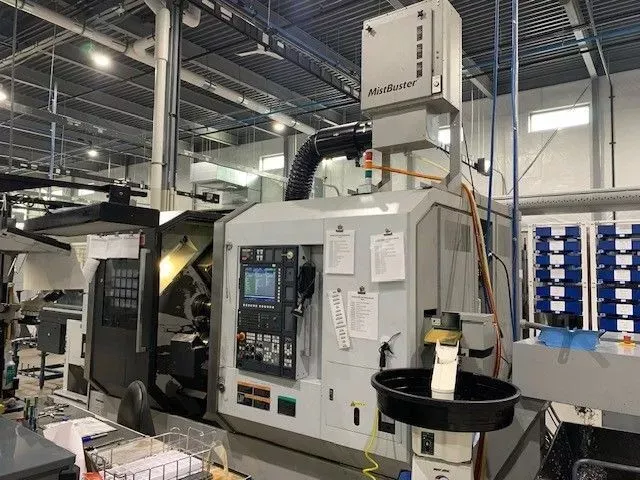

Mori Seiki MSX 701III / FANUC 31IB CNC CONTROL WITH MAPPS III 5,000 RPM NZ2000 T3Y3 9 Axis

X1 - Axis Travel: 8.3"
X2 - Axis Travel: 8.3"
X3 - Axis Travel: 8.3"
Y1 - Axis Travel: 4.3"
Y2 - Axis Travel: 4.3"
Y3 - Axis Travel: 4.3"
Z1 - Axis Travel: 11.8"
Z2 - Axis Travel: 31.9"
Z3 - Axis Travel: 3.9"
Rapid Traverse Rate - X1: 1181 ipm
Rapid Traverse Rate - X2: 1181 ipm
Rapid Traverse Rate - X3: 1181 ipm
Rapid Traverse Rate - Y1: 787 ipm
Rapid Traverse Rate - Y2: 629 in/min.
Rapid Traverse Rate - Y3: 787 in/min.
Rapid Traverse Rate - Z1: 1968 ipm
Rapid Traverse Rate - Z2: 1968 ipm
Rapid Traverse Rate - Z3: 1968 ipm
C - Axis Indexing 1: 0.00
C - Axis Indexing 2: 0.00
W - Axis Travel Sub Spindle: 36.2"
MSX 701III / FANUC 31IB CNC CONTROL WITH MAPPS III
3 Turrets
3 Y-Axis
BMT type rotary turrets
Tool presetters (L/R)
LNS Quick Load Servo S3 short magazine barfeed
Program restart / inverse time feed
Auto power off
Coolant thru spindles Chip Blaster 1000 PSI
Mist collect system
Chip conveyor
Swing Over Bed: 31.5 mm
Turning Diameter: 12.6 mm
Turning Length: 10.2"
Distance Between Spindles: 44.5"
Bar Capacity: 12.5 mm
Spindle Nose 1: A2 - 6
Spindle Bore Diameter 1: 2.9"
Spindle Speeds 1: 5,000 RPM
Spindle Horsepower 1: 33.3 kW
Spindle Nose 2: A2 - 6
Spindle Bore Diameter 2: 2.9"
Spindle Speeds 2: 5,000 RPM
Spindle Horsepower 2: 33.3 hp
Turret Rotary Tool Speeds 1: 6,000 RPM
Turret Rotary Tool Horse Power 1: 10 hp
Turret Rotary Tool Speeds 2: 6,000 RPM
Turret Rotary Tool Horse Power 2: 10 hp
Turret Rotary Tool Speeds 3: 6,000 RPM
Turret Rotary Tool Horse Power 3: 10 hp
Turret Tool Positions 1: 16 station
Turret Tool Positions 2: 16
Turret Tool Positions 3: 16
