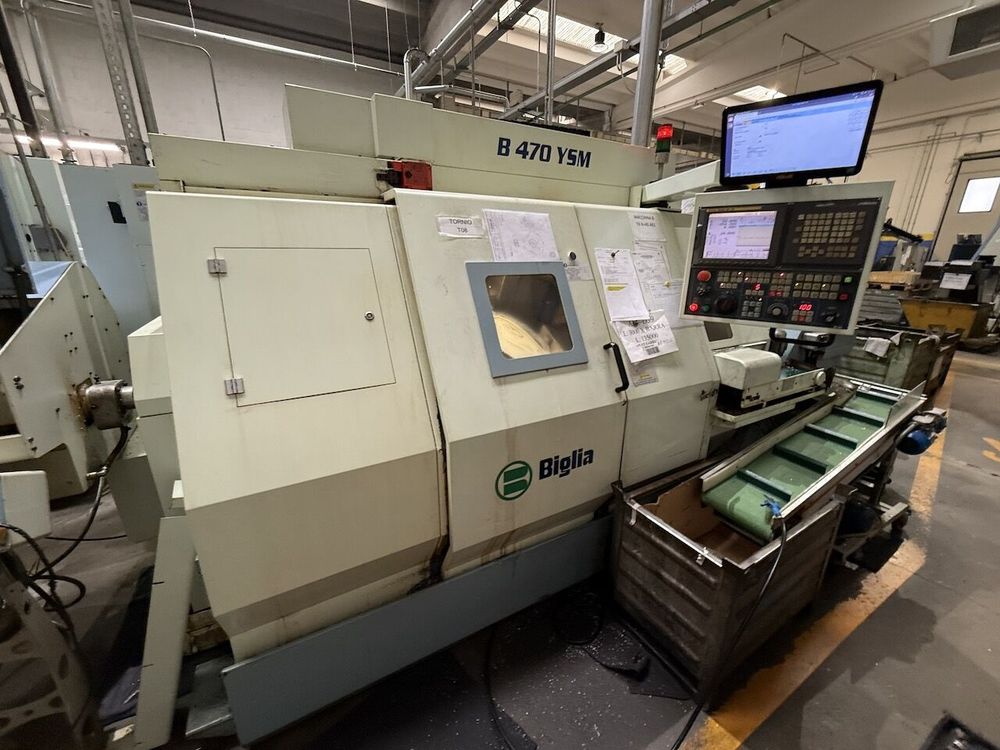

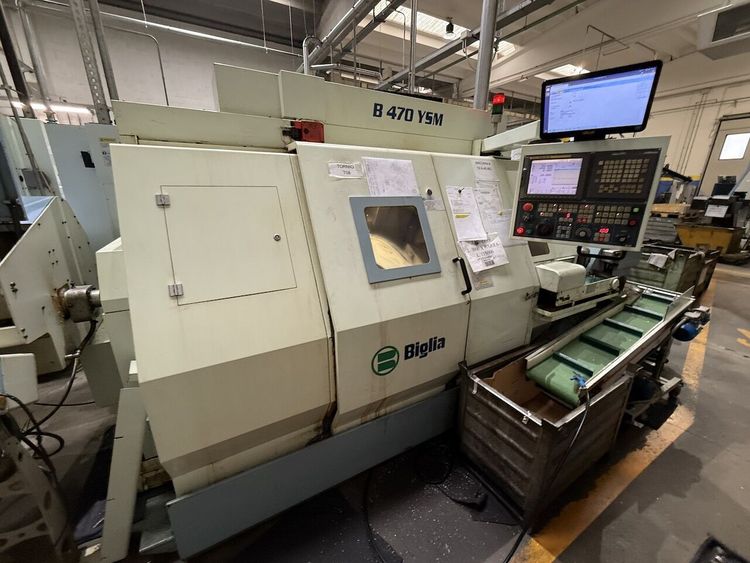

Biglia Fanuc 18i-TB 4000 rpm B470 YSM 2 Axis

CNC Turning Machine
Max turning diameter: 520 mm
Max bar working diameter: 68 mm
Max working length: 250 mm
CNC control: Fanuc 18i-TB
Main spindle max rotation speed: 4000 rpm
Main spindle nose: ASA 6”
Main spindle hole: 80 mm
Main spindle internal bearing diameter: 110 mm
Main spindle max power: 26 kW
Main spindle C-axis accuracy: 0.001°
Subspindle max rotation speed: 4000 rpm
Subspindle nose: ASA 5”
Subspindle hole: 55 mm
Subspindle internal bearing diameter: 80 mm
Subspindle max power: 11 kW
Subspindle C-axis accuracy: 0.001°
Rapid feed B-axis: 30 m/min
Turret 1 rotation time (1 position): 0.15 sec
Turret 1 driven tools speed: 4000 rpm
Turret 1 driven tools power: 3.7 kW
Turret 1 X1 axis stroke: 160 mm
Turret 1 X1 rapid feed: 20 m/min
Turret 1 Z1 axis stroke: 390 mm
Turret 1 Z1 rapid feed: 24 m/min
Turret 1 Y1 axis stroke: 100 mm
Turret 1 Y1 rapid feed: 6 m/min
Turret 2 positions number: 12
Turret 2 rotation time (1 position): 0.15 sec
Turret 2 number of driven stations: 12
Turret 2 driven tools speed: 4000 rpm
Turret 2 driven tools power: 3.7 kW
Turret 2 X2 axis stroke: 160 mm
Turret 2 X2 rapid feed: 12 m/min
Turret 2 Z2 axis stroke: 240 mm
Turret 2 Z2 rapid feed: 20 m/min
Machine total weight: 6,900 kg
Floor space: 4150 × 2100 × 2200 mm
