Biglia FANUC series 32i-B 3500 B750-YS

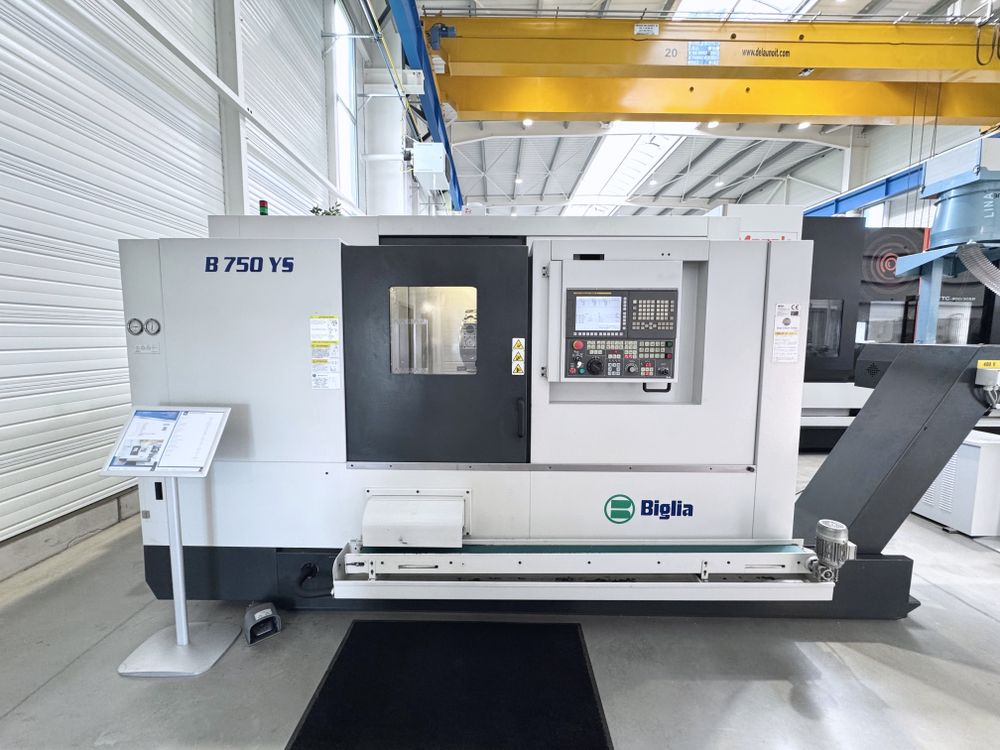

CNC Lathe BIGLIA B750 YS



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2015

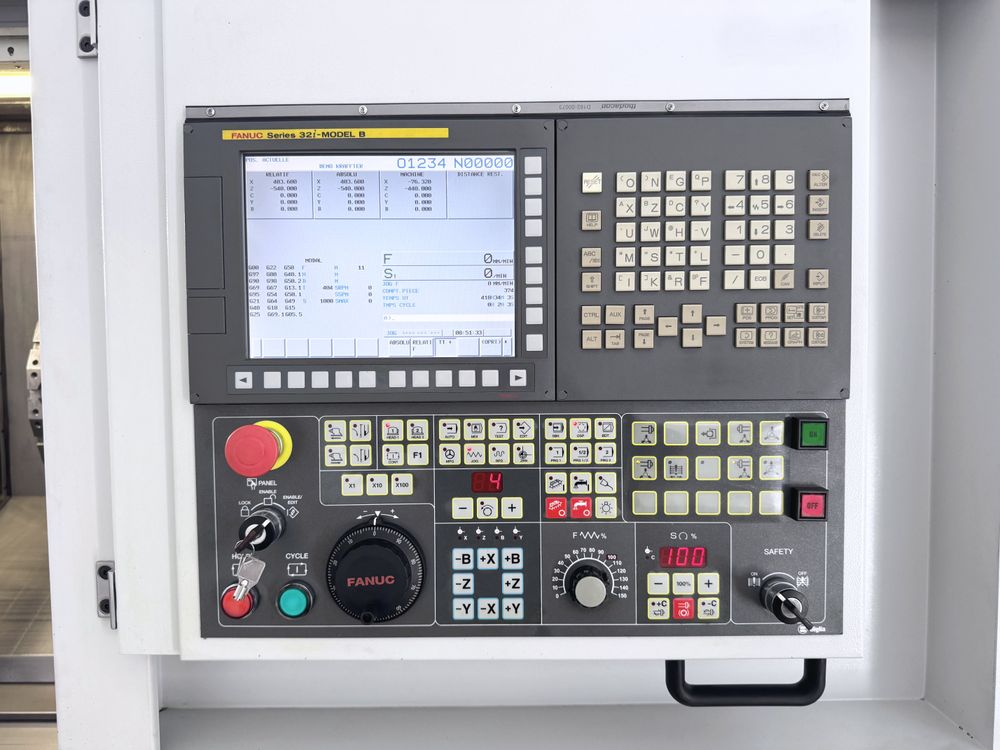

CNC control: FANUC series 32i-B
Max. turning diameter in rotation: 680 [mm]
Stroke X axis: 305 [mm]
Stroke Y axis: 140 [mm]
Stroke Z axis: 860 [mm]
Rapid traverse rate X axis: 18000 [mm/min]
Rapid traverse rate Z axis: 24000 [mm/min]
Rapid traverse rate Y axis: 7500 [mm/min]
Spindle nose: ASA 8"
Max. bar diameter: 80 [mm]
Spindle throughbore: 91 [mm]
Max. spindle speed: 3500 [rpm]
Increment C-axis: 0.001 [°]
Spindle power: 22 [kW]
Spindle torque: 700 [Nm]
Counter spindle nose: ASA 5"
Counter spindle throughbore: 55 [mm]
Counter spindle stroke: 895 [mm]
Max. counter spindle speed: 5000 [rpm]
Counter spindle increment C-axis: 0.001 [°]
Counter spindle power: 25 [kW]
Counter spindle torque: 159 [Nm]
Max. tool holder cross-section: 25 x 25 [mm]

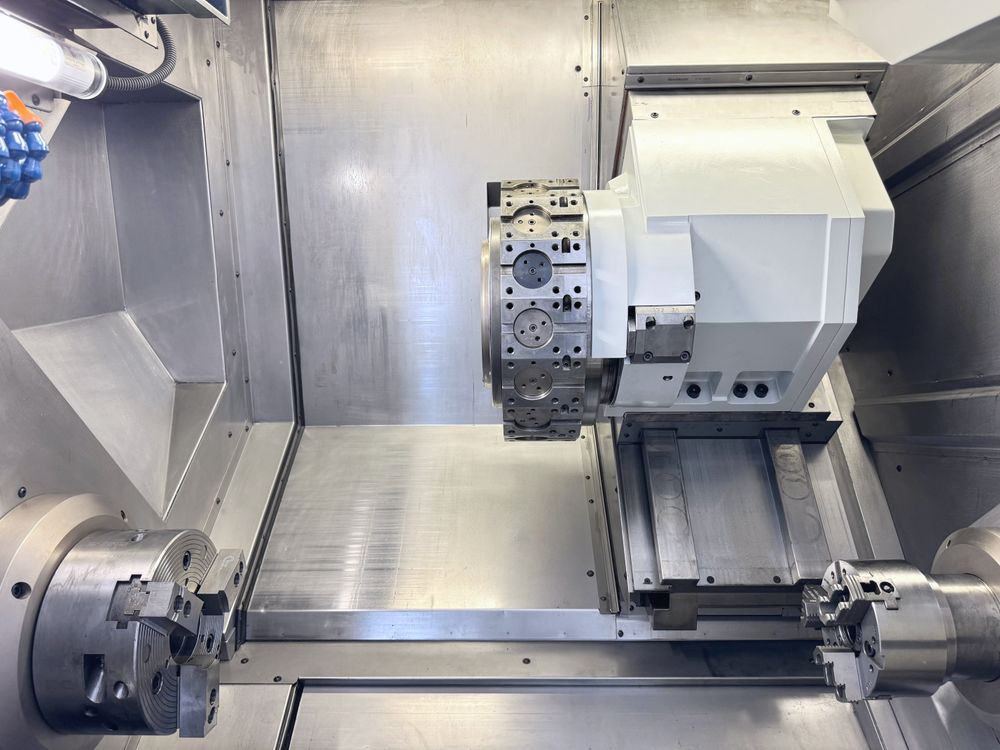

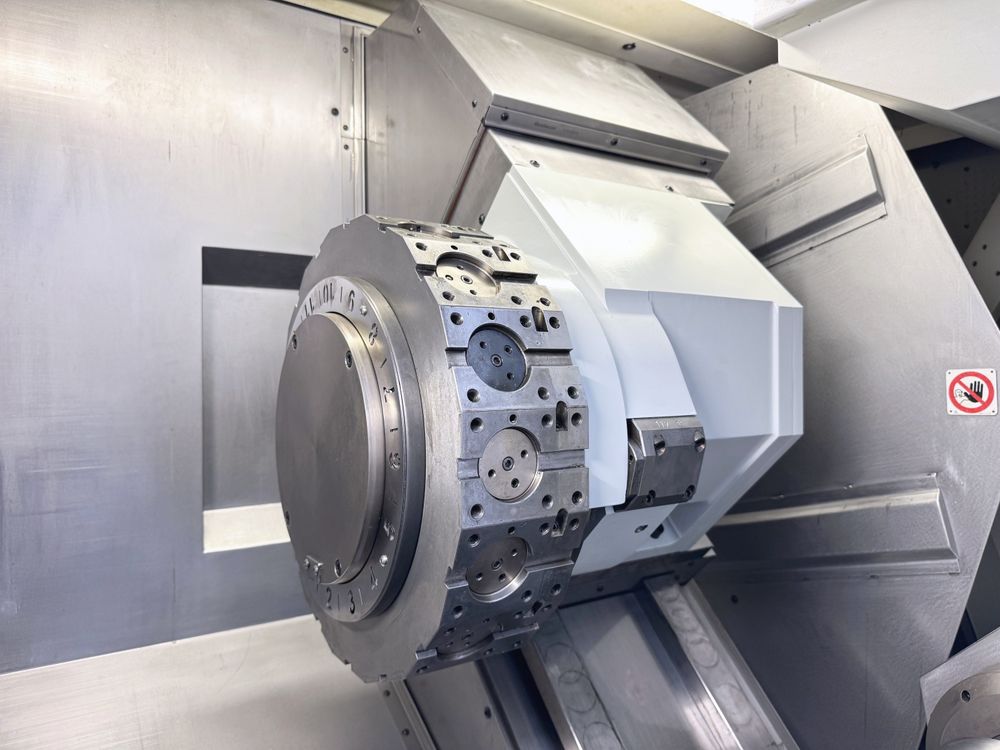

Number of tool stations: 16
Turret indexing time: 0.3 [s/pos]
Number of tool stations driven: 16
Max. speed driven tools: 6000 [rpm]
Live tools power: 17.5 [kW]
Lubrication tank capacity: 300 [l]
Collant pump flow rate: 60 [l/min]
Rated current: 60 [A]
Supply voltage: 400 [V]
Number of cutting hours: 5674 [h]
Dimensions: 5070 x 2030 x 2220 [mm]
Weight: 7600 [Kg]


INCLUDED EQUIPMENT:

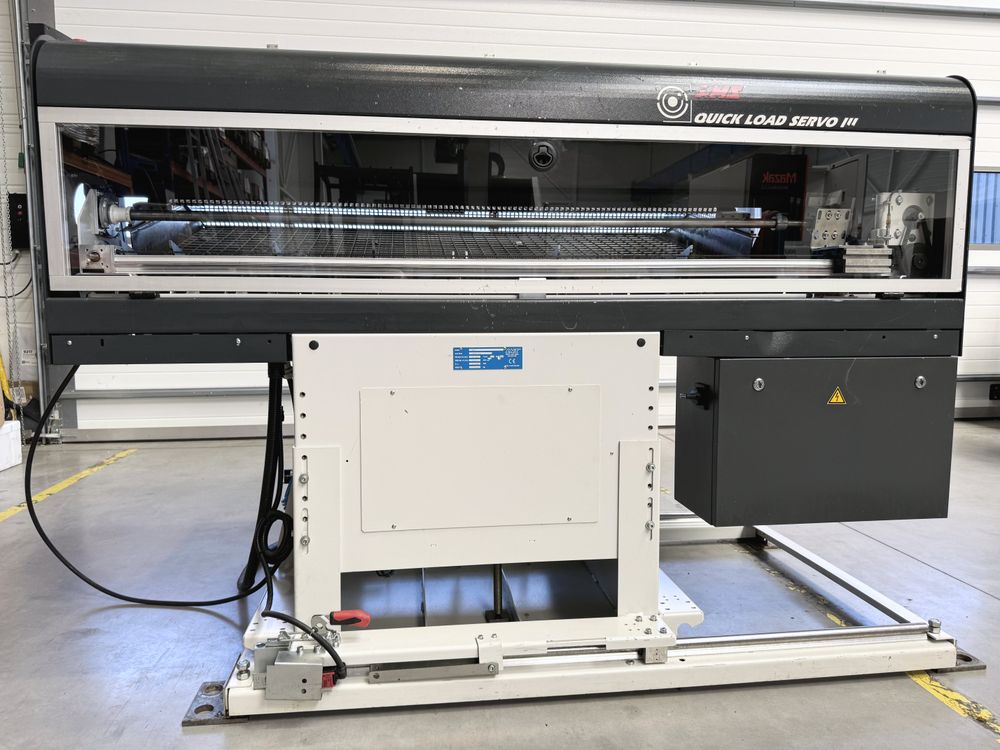

1 LNS bar feeder, Quick Load Servo III type
1 three-jaw chuck Ø250 mm

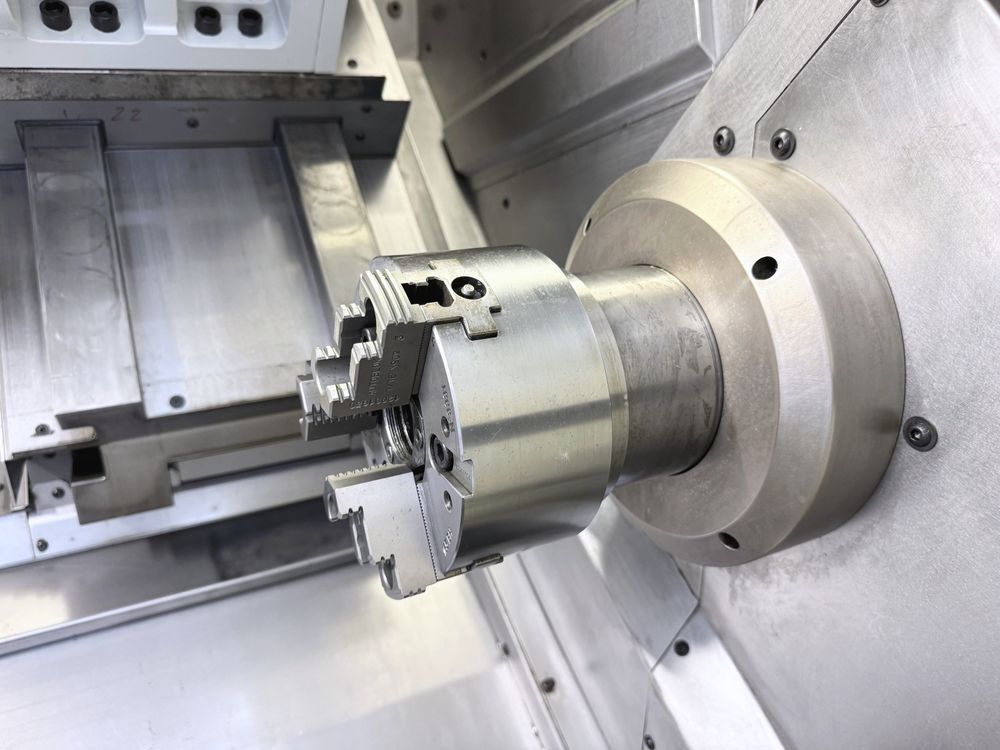

1 three-jaw chuck Ø165 mm

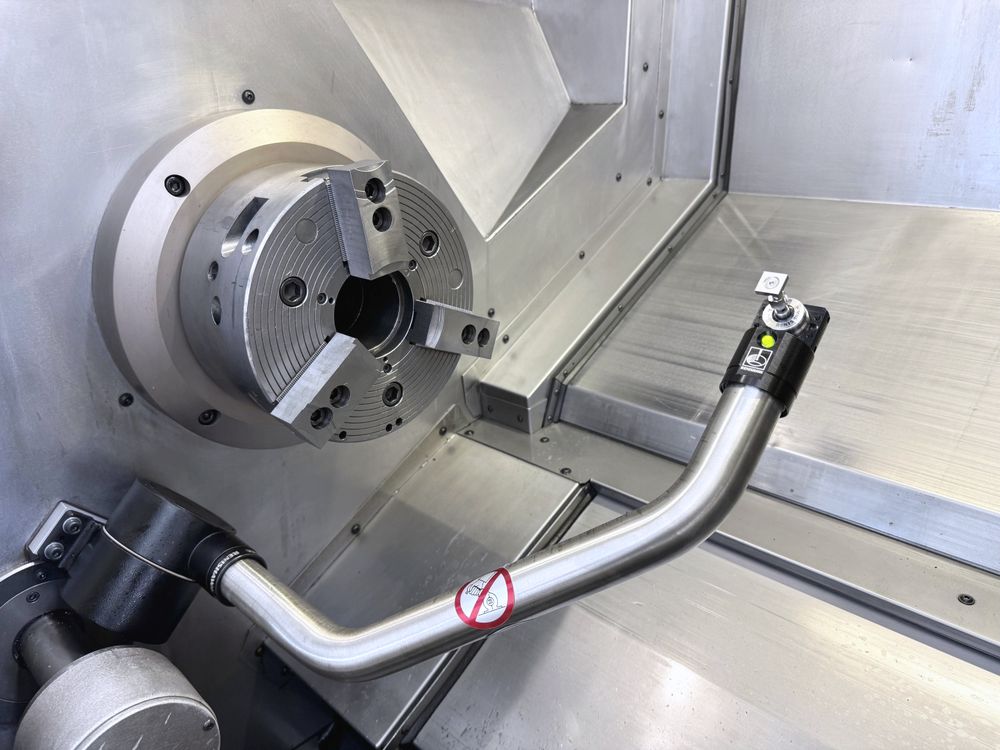

1 automatic RENISHAW tool probe
2 live axial tool holders
1 live radial tool holder
11 static tool holders
1 high-pressure coolant pump (20 bar)
1 chip conveyor
1 parts catcher
1 parts conveyor belt



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
