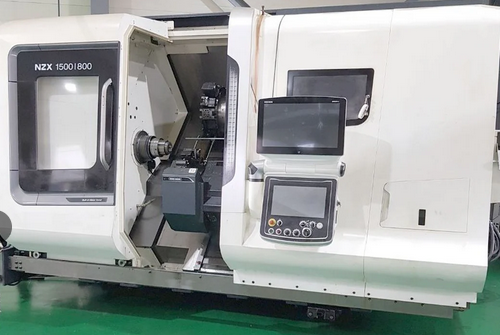

DMG FANUC 31iB 6000 rpm MORI NZX 1500/800SY 4 Axis

X-Axis Travel: 210 mm
Y-Axis Travel: 110 mm
Z-Axis Travel: 810 mm
Rapid Traverse X: 30 m/min
Rapid Traverse Y: 20 m/min
Rapid Traverse Z: 50 m/min
C-Axis Indexing: 0.001 Degree
Control: FANUC 31iB
Bar Capacity: 52 mm
Swing Diameter: 800 mm
Max Turning Diameter: 320 mm
Spindle Speed: 6000 rpm
Spindle Motor: 22 / 18.5 kW
Spindle Nose: JIS A2-5
Spindle Bore: 61 mm
Milling Motor: 7.5 / 5.5 kW
Turret Positions: 16
Tool Size: 20 mm
Machine Dimensions: 4396 x 2835 x 2320 mm
Machine Weight: 8100 kg

2 Turning Spindles
2 Revolvers
Driven Tools Turret
Direct Measuring System X Axis
Lamp
Coolant System
Coolant Through Counter Spindle
Loader Interface
Parts Catcher
Workpiece Conveyor
Chip Conveyor
