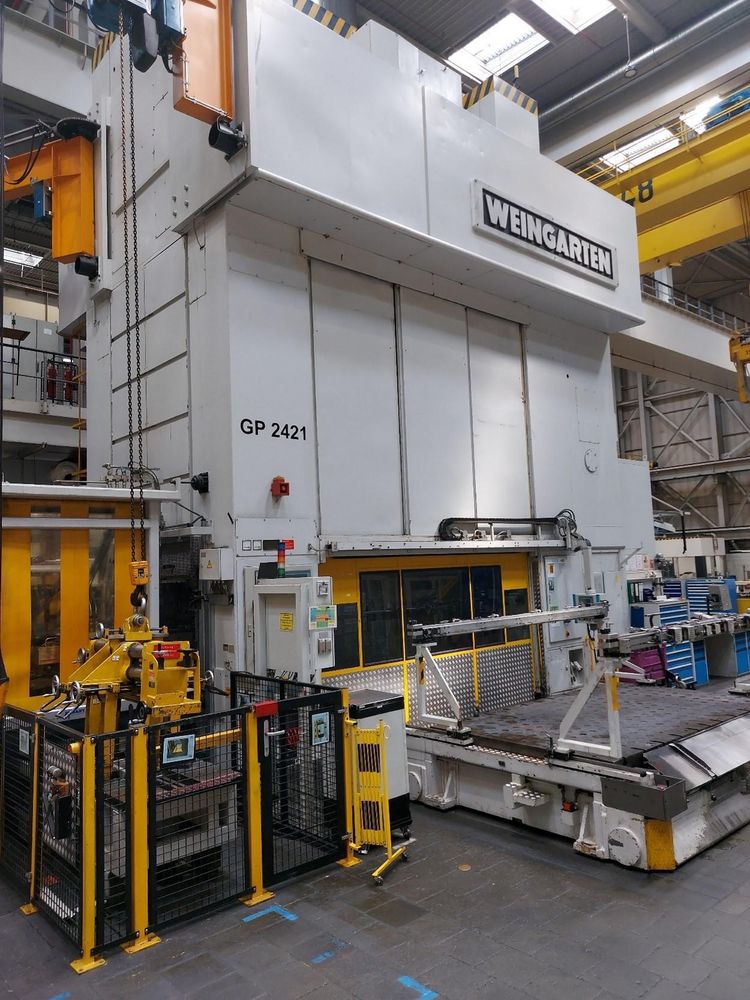

Weingarten S1000-04-75 1000 tons at 20 mm

Ref : 2738123-3-AW

Condition : Used

Manufacturer : Weingarten

Model : S1000-04-75

Pressure : 1000 tons at 20 mm

Year(s) : 1982

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Press capacity 1000 tons at 20 mm
Drive kinematics eccentric link drive
Slide stroke 700 mm
Shut height from top of bolster SDAU 1400 mm
Slide adjustment 400 mm
Slide dimensions (L-R x F-B) 3150 x 1900 mm
Bolster dimensions (L-R x F-B) 3150 x 1900 mm
Number of moving bolsters 2
Moving bolster exit front-back
Continuous speed (variable) 8–22 spm
Side window 2200 x 2150 mm
Front passage 3600 mm
Cushions 4 x 50 ton stroke 250 mm
