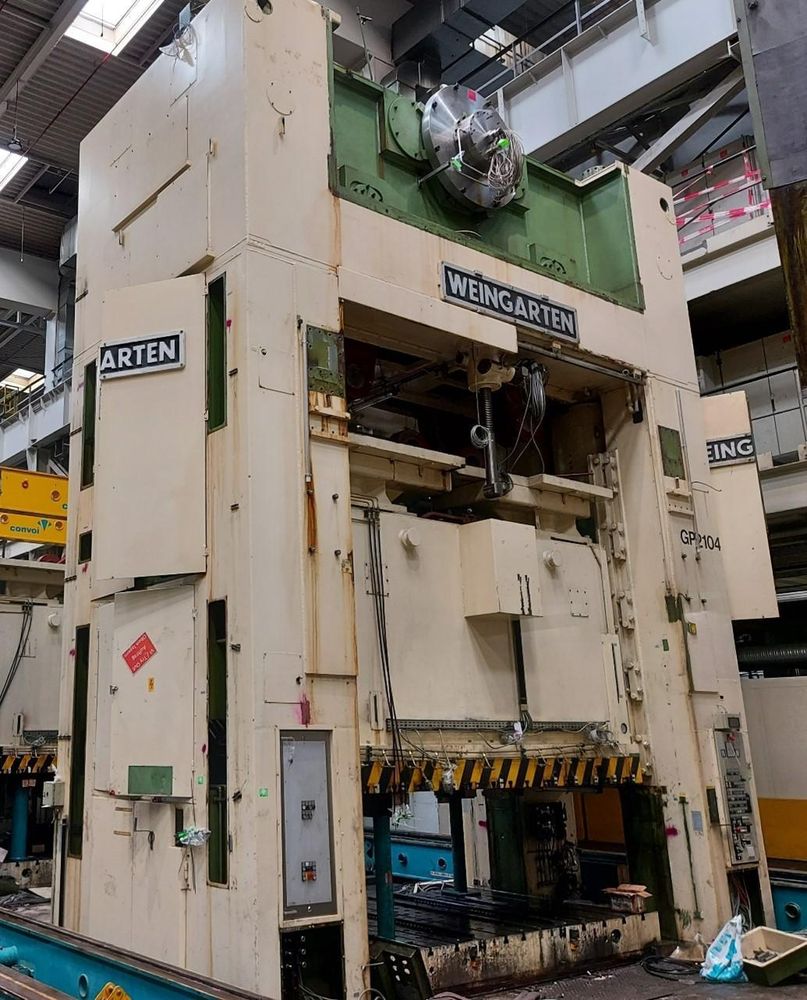

Weingarten VK 1000 . 40 . 80 1200 tons

Press capacity at 20 mm to dsp 1000 tons
Press capacity at 12 mm to dsp 1200 tons
Link drive kinematics eccentric
Number of connecting rods 4
Slide stroke 800 mm
Shut height from top of bolster SDAU 1400 mm
Slide adjustment 500 mm
Slide dimensions (L-R x F-B) 4000 x 2200 mm
Bolster dimensions 4000 x 2200 mm
Bolster height 300 mm
Continuous speed (variable) 10–22 spm
Set up speed 3 spm
Maximum height from floor level 9500 mm
Clearance between uprights (L-R) 4400 mm
Clearance between uprights (F-B) 1900 mm
Maximum press weight approx. 300000 kg
