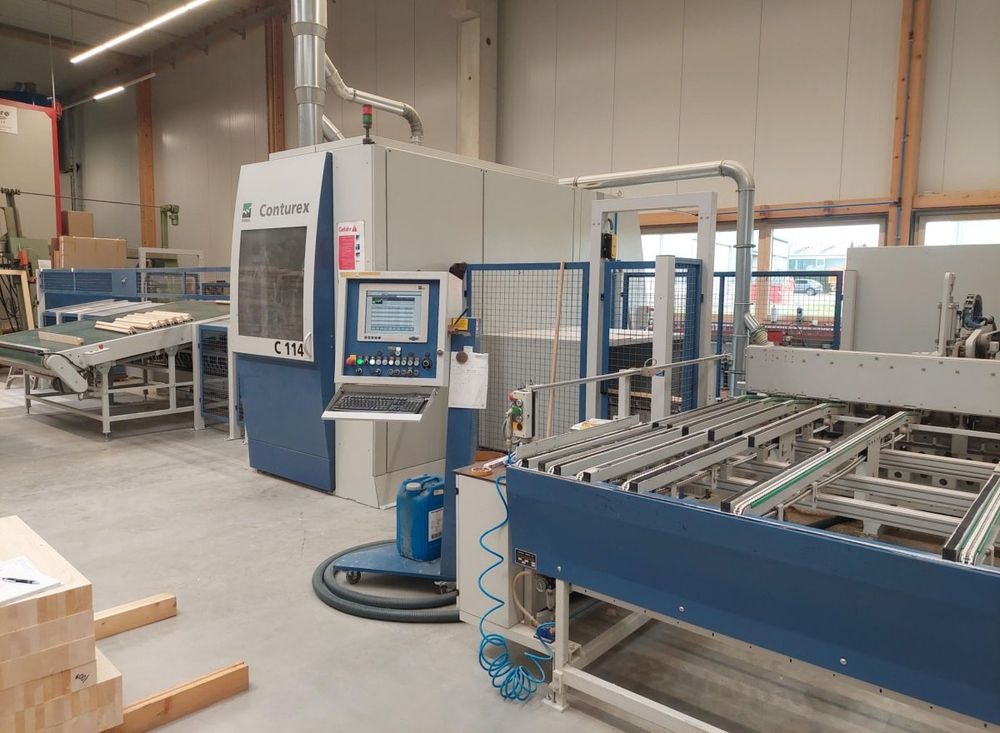

Weinig Conturex 2 C 114

Working width: 40-260 mm
Working height: 25-110 mm

2 x PowerGrip clamp tables, 2 x 2280 mm
Workpiece length 200 - 4,500 mm
Workpieces over 2,700 mm in length are machined using a repositioning cycle.

Main spindle 1:
Motor with brake 20 kW
HSK 63F
Electronically adjustable speed 2,000-18,000 rpm
Maximum tool length from flat surface HSK 63 F: 290 mm
With C-axis

Tool magazine:
Number of pockets: 30 mm
Pitch between pockets: 100 mm

Permanently installed multi-spindle drilling head
For horizontal and vertical drilling and milling work without tool changes

Prices for disassembly and loading onto customer trucks
Transport within Germany and abroad as well as reassembly
Commissioning and, if required, new profiles are available upon request!

Used tools included (drawings available upon request):
Wood: IV 68, 78, 88, opening inside and out, with hinged weatherboard
Wood-aluminum: IV 68/68, 78/78, 87/68, 97/78
Lift-and-slide doors IV 68 and 78
Front doors IV 68 and 78
Pivot windows
Corner connection: counter/dowel
