Weinig Conturex
EUROPE (Western and Northern)

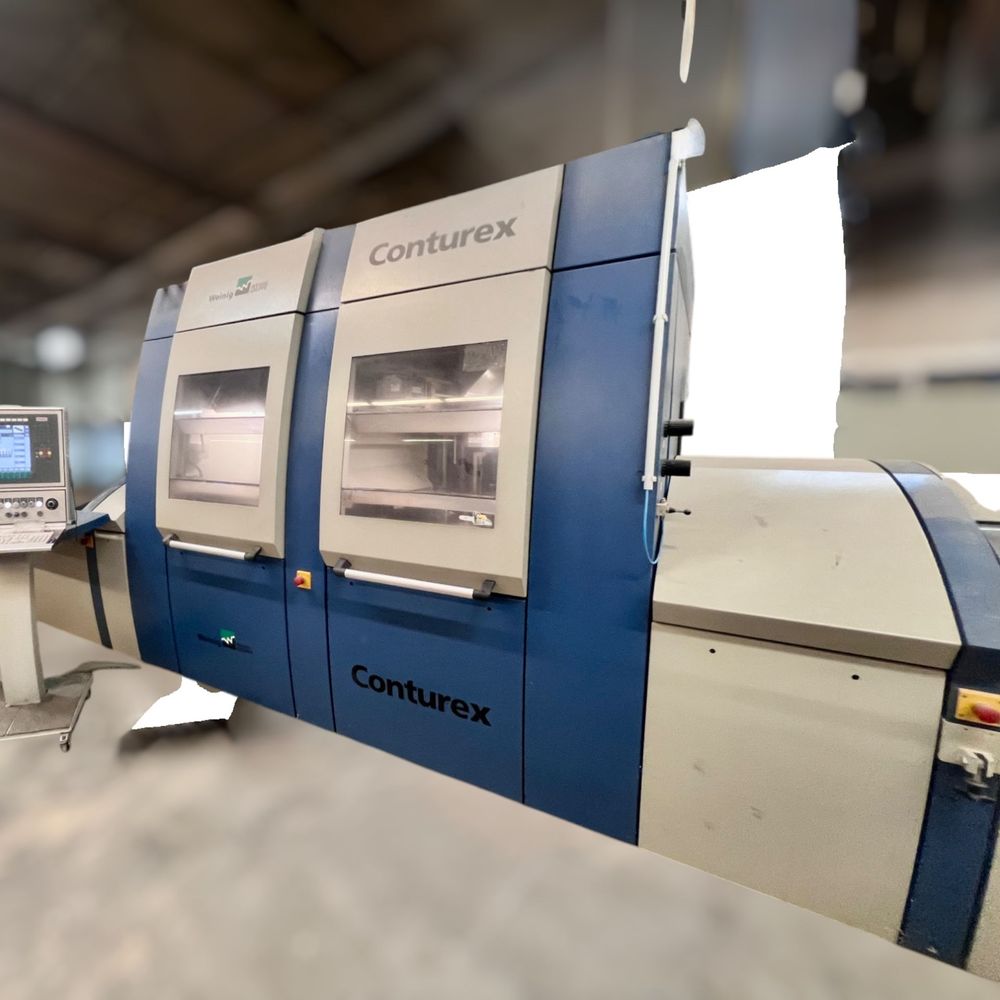

CNC Profiling Center
2 milling spindles
Weight: approx. 13,000 kg
Condition: Used
Working width: 25-260 mm
Working height: 10-100 mm
Spindle power: 2 x 10.5 kW
Power Grip: Infeed
Power Grip: Outfeed
Technical specifications:
What it does:
• Complete processing of individual parts in a continuous process
• Example of a frame front with 4 individual parts:
• The 4 different parts of the frame are processed in direct sequence from one plank.
• Milling, drilling, and sawing in every plane
• High machining accuracy for small and large dimensions
• WEINIG Power Grip for mechanical workpiece clamping (patent pending)
• Tool change during machining
• Easy-to-understand operator guidance via interactive screen control and graphical support
• Online help and error diagnostics (as text output)
• Operating instructions integrated into screen menus
• High occupational safety thanks to full encapsulation
• Modern, ergonomic design, CE-compliant, noise-reduced, and dust-protected
• Minimal setup times and high performance for small batch sizes
• Fast processing of all batch sizes with a high part variety
• Reduction of capacity bottlenecks
• Reduction in manufacturing costs
Some application examples:
• WEINIG Conturex CNC profiling center for milling, drilling, and sawing in cross- and longitudinal machining
Technical specifications:
Working areas:
• Working width: 25 - 260 mm
• Working height: 10 - 100 mm
• Ratio of wood height to width: Max. 2:1
• Power Grip table length: 1,500 mm
• Workpiece length: 180 - 1,500 mm
• Input material: Straight and parallel material at right angles (other geometries available upon request)
PowerGrip system:
• Infeed: Manual part loading
• Stops: Length and width stops individually programmable via control system
• Clamping elements: Pneumatic, individually controllable
• Distances:
• From the 1st to the 2nd clamping element: 60 mm
• All additional clamping elements: 150 mm
• Adjustment speed VX: Up to 110 m/min
• Workpiece overhang in width after processing: Max. 130 mm
1st processing unit:
• Motor: With brake, 10.5 kW (14 HP) S1
• Tool holder: HSK F63
• Speed: Electronically adjustable, 0 - 18,000 rpm (right/left)
• Maximum tool travel radius: 330 mm
• Maximum saw blade travel radius: 280 mm
• Maximum tool length: 290 mm (from flat surface of HSK F63)
• Adjustment speeds:
• VZ: Up to 60 m/min
• VY: Up to 120 m/min
• VC: Up to 450°/sec
• Tool magazine:
• Number of tool positions: 18
• Distance between tool positions: 100 mm
2nd machining unit:
• Motor: With brake, 10.5 kW (14 HP) S1
• Tool holder: HSK F63
• Speed: Electronically adjustable, 0 - 18,000 rpm (right/left)
• Maximum tool travel radius: 330 mm
• Saw blade tool radius max.: 280 mm
• Tool length max.: 290 mm (from flat support HSK F63)
• Adjustment speeds:
• VZ: Up to 60 m/min
• VY: Up to 120 m/min
• VC: Up to 450°/sec
• Tool magazine:
• Number of tool positions: 18
• Tool position spacing: 100 mm
Caution! According to the previous owner, one unit occasionally malfunctions!!
However, both units worked during the test run. We were unable to precisely locate the fault before dismantling.
Workpiece ejection:
• Automatic workpiece transfer to the PowerGrip outfeed
• On the outfeed device with an inclined chute up to the end stop
• Buffer length: Approx. 800 mm
Waste management:
• Two conveyor belts for removing machining residues
• Integrated room extraction system for the cabin and conveyor belts
Machine body:
• The machine body is made of heavy, torsion-resistant, and vibration-damping cast parts.
Machine operation:
• Operation is computer-assisted via a convenient on-screen menu.
• User-friendly operator guidance with online help and graphical display.
• Built-in error diagnostics and instructions directly in the control interface.
Software:
• Includes powerful CAD/CAM software:
• AlphaCAM with 3D functionality and collision avoidance
• Direct connection to tool management
• Compatible with common file formats (e.g., DXF, DWG)
Safety and sound insulation:
• Full safety enclosure with hinged hood
• Electromagnetic hood lock (only opens when the tools are stopped)
• Dust and soundproof with interior lighting
Connection data:
• Total connected load: Approx. 40 kW (depending on configuration)
• Air requirement: Min. 6 bar
• Extraction diameter: 150 mm (multiple connections possible)
