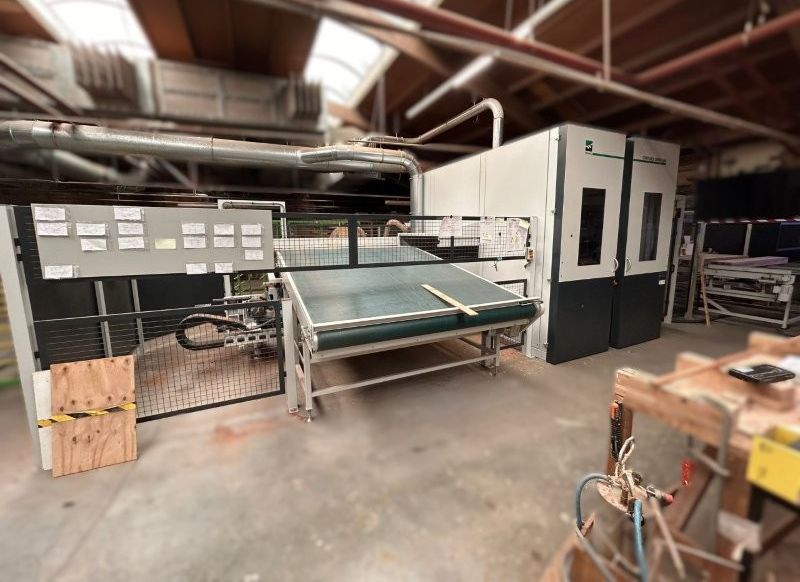

Weinig Conturex Greenline Plus 5-axis

Working width: 40–260 mm
Working height: 25–150 mm

2 x PowerGrip clamping table (2 x 2280 mm)
Workpiece length: 175–4,500 mm
Processing of workpieces longer than 2,700 mm is performed using a repositioning cycle

Main spindle 1:
Motor with brake: 20/30 kW
HSK 63F
Electronically variable speed: 0–18,000 rpm
Max. tool length from HSK 63F contact face: 290 mm

Tool magazine:
Number of positions: 35
Position spacing: 142 mm

Compact universal spindle with 5-axis technology (fifth axis as positioning axis)
Motor with brake: 10/12.5 kW
HSK 63F
Electronically variable speed: 2,000–24,000 rpm
Max. tool length from HSK 63F contact face: 220 mm

Tool magazine:
Number of positions: 17
Position spacing: 100 mm
