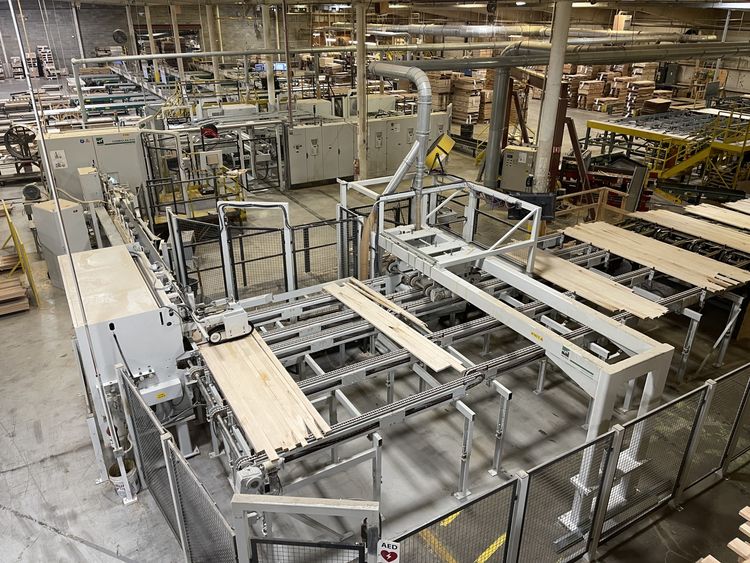

Dimter, Weinig Optisaw System with Luxscan Combiscan and 3 Opticut 450 Quantum

This Line was Designed by Weinig to process up to 67 boards per minute
The Example Presents is 8’ Long Material 3” x 1” with 6 Cuts Per Board
This Line will Cut Multiple Widths with a Separate Cutting Bill for Each Width
Incoming Lengths 4’ – 12’
Incoming Widths 1.5” – 6.5”
Incoming Thickness 1” – 2”
Line Consists of:
Cross Conveyor 60" Long with Trim Saw for Speared Ends Before Scanner Infeed, Includes Approx 24 ft. of Infeed Transfer Chain
Accelerator A4 with Top and Bottom Rollers to Minimize Board Gap
Scanner Luxscan Combiscan Evo C600.
Includes 4 Side Detection with Laser Cameras, 4 Side Detecton of Color Defects, 4 Side Detection with Dot Laser,
4 Side Scatter, Angle Cracks Detection on Top/Bottom Side, Optimizing Software
Transfer Station and Board Distriburtion: 5 Compartment Cross Conveyor with Rollers to Change Even End for Feeding Saws
Boards are then Collected Together to one Layer for transfer to each Saw
Cross Conveyor C1-2000 Lateral Feeder for Opticut #1
Transfer Station from Distributor to Cross Conveyor 2 with Lateral Feeder for Opticut #2 and #3
Three (3) OptiCut 450 Quantum Optimizing Saws
Right Hand Version, Servo Controlled Saw Stroke for Short Cutting Cycle Times
OptiCom 7” Control Panel
Integrated Waste Gate for Sorting Belt Width 250mm
Maximum Waste Length approximately 200mm
Outfeed Conveyor Belt/Sorting Stations 10” Wide x 65’ Long with 10 Kickers for each saw
8 Sort Belts 36" Wide and 1 Sort Belt 60" Wide
Built in Late 2017, Installed Spring of 2018
