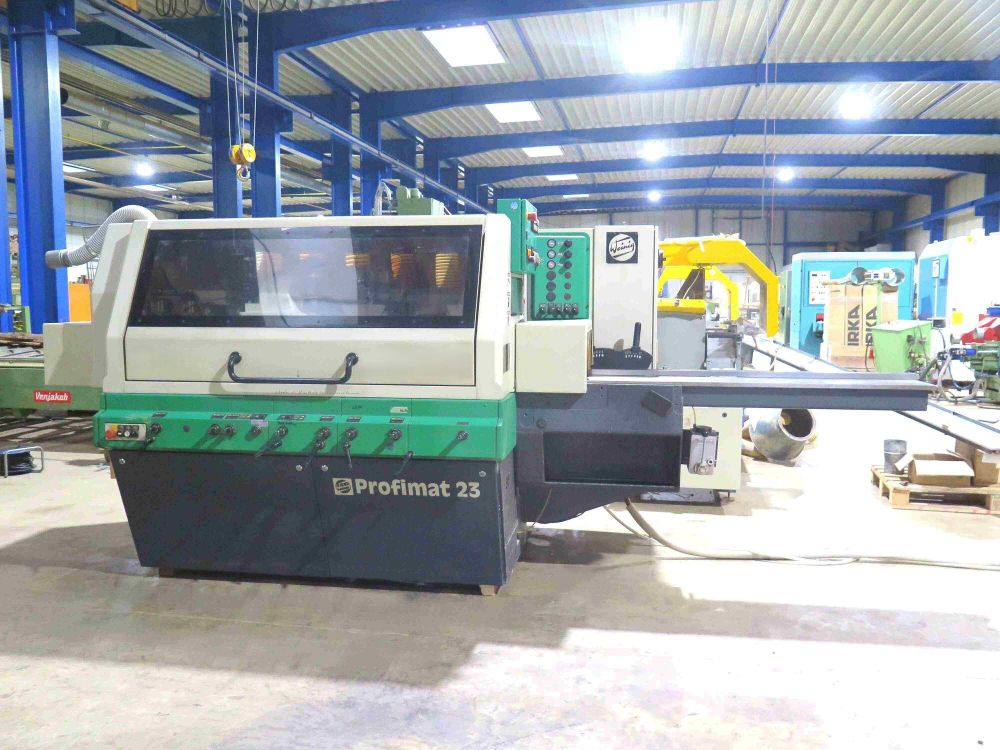

Weinig P 23

Four-sided planer with glass bead saw
Planing width: 230 mm
Planing height: 130 mm

6 cutterheads + glass bead saw
Cutter arrangement:
1 Bottom 4 kW
2 Right stroke spindle, indexed with
3 Left 7.5 kW
4 Top indexed cutterhead, 5.5 kW
5 Bottom 5.5 kW
Glass bead saw 3 kW
Infeed table length: 1750 mm
Flow speed continuously variable from 6.7 – 25.1 m/min.

Feed motor 3 kW
Height adjustment motor 0.75 kW
Spindle diameter 40 mm
Right and left shafts are driven by one motor
with manual Waxilit pump
with manifold for extraction pipes
fully equipped with planer heads
Centrofix cutterhead
including the following planer heads:
3 pieces, 240 mm long with 2 knives,
2 pieces, 130 mm long with 2 knives,
1 piece, 210 mm long with 4 knives
2 profile heads, 130 mm long
1 glazing bead saw
Good, ready-to-use condition

Dimensions: 4000 mm x 1600 mm x H 1700 mm,
Height (hood open): 2000 mm
Weight: approx. 3,500 kg
