Weinig P 23

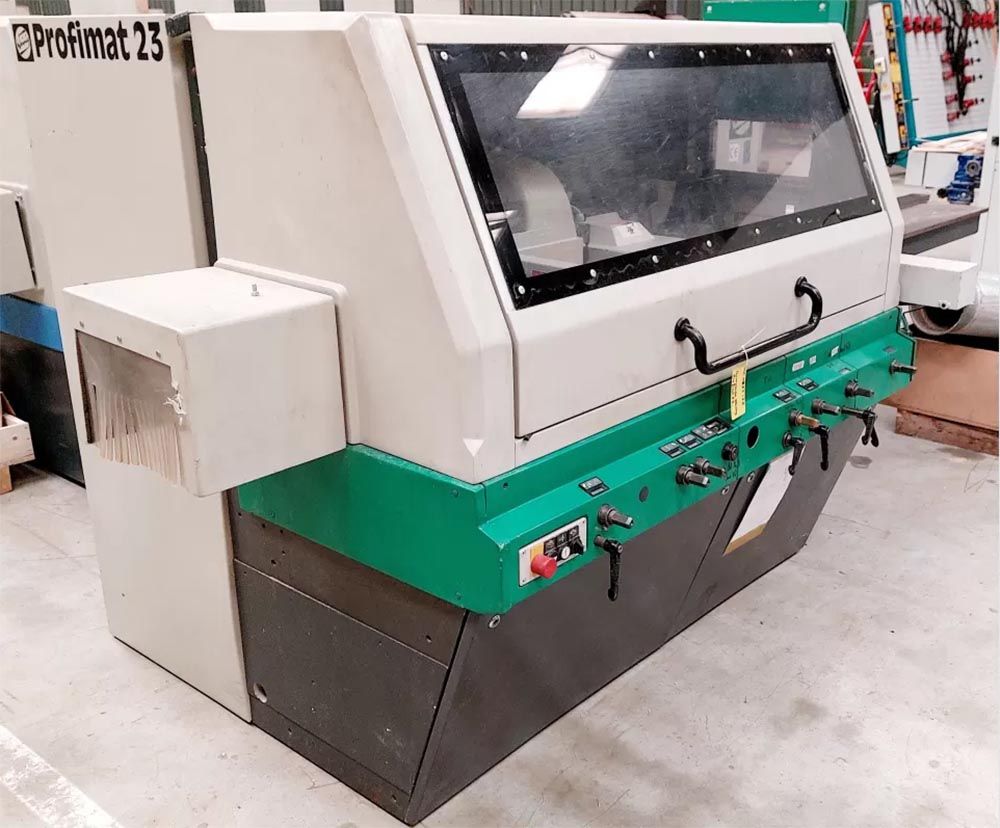

4-Sided Moulding and Grinding Machine with Grooving Table & All Widths Device
1 Digital Axis: Width & Electric Thickness Adjustment

MACHINING CAPACITIES:
- 4-sided planer and moulder
- Maximum finished section: 120 x 230 mm
- Widths: 10 to 230 mm
Variable infeed width possible
- Thicknesses: 4 to 120 mm
- Minimum workpiece length: 350 mm
Module for short workpieces (slightly curved or angled): 280 mm
- Adjustable depth of cut: maximum 10 mm
- Spindle speed: 6000 rpm

PLANER COMPONENTS:
- Robust welded frame
- Secure, fully panoramic enclosure on gas springs
- Digital counters (Siko type) for precise manual adjustment of each operation
- Elevated control panel facing the operator
- Digital depth of cut indicators
- Hardened steel infeed table (L x W): 2000 x 260 mm, table height: 890 mm mm

Lubrication (manual pump)
Grooves used for optimal guidance
- Width detector for mobile left-hand spindle moulder
- Infeed side pressure plate
1) Lower jointer shaft and guide groove creation 4 kW
Acceptable tools Ø125 - 145
2 & 3) Right & left vertical shafts 7.5 kW
Acceptable tools Ø100 - 200
- Vertical pressure plate with idler wheel
4) Upper horizontal shaft 7.5 kW
Acceptable tools Ø100 - 200 L250 mm
- Adjustable outfeed pressure shoe
5) Lower horizontal shaft 4 kW
Acceptable tools Ø100 - 200 L250 mm

DRIVE:
- Feed with variable speed drive 4 to 24 m/min
4 kW drive motor
Cardan shaft drive
- 5 pneumatically pressure-sprung toothed steel wheels including 1 retractable front wheel Planer
- 3 rubber-coated wheels at the outfeed
1 of which is retractable

OTHER FEATURES:
- 400V power supply. Three-phase + Earth 50Hz
- Installed power 78.5kW (106.7 hp) In max 65A
- Automatic star-delta start
- Beam lift/lower motor for thickness adjustment 0.37 kW
- Vertical shaft axial adjustment 60 mm
- Horizontal shaft axial adjustment 40 mm
- Shaft diameter Ø40 mm
- Minimum pneumatic working pressure 6 bar
- Dust extraction 5x Ø140 mm
Recommended flow rate 9000 m³/h, Minimum speed 30-34 m/sec
- CE marking, Brake motors, Thrust limiter, Lockable contactor, Emergency stop buttons
Workshop dimensions: 2.85 x 1.85 x 1.75 m (2.10 m with hood open)
