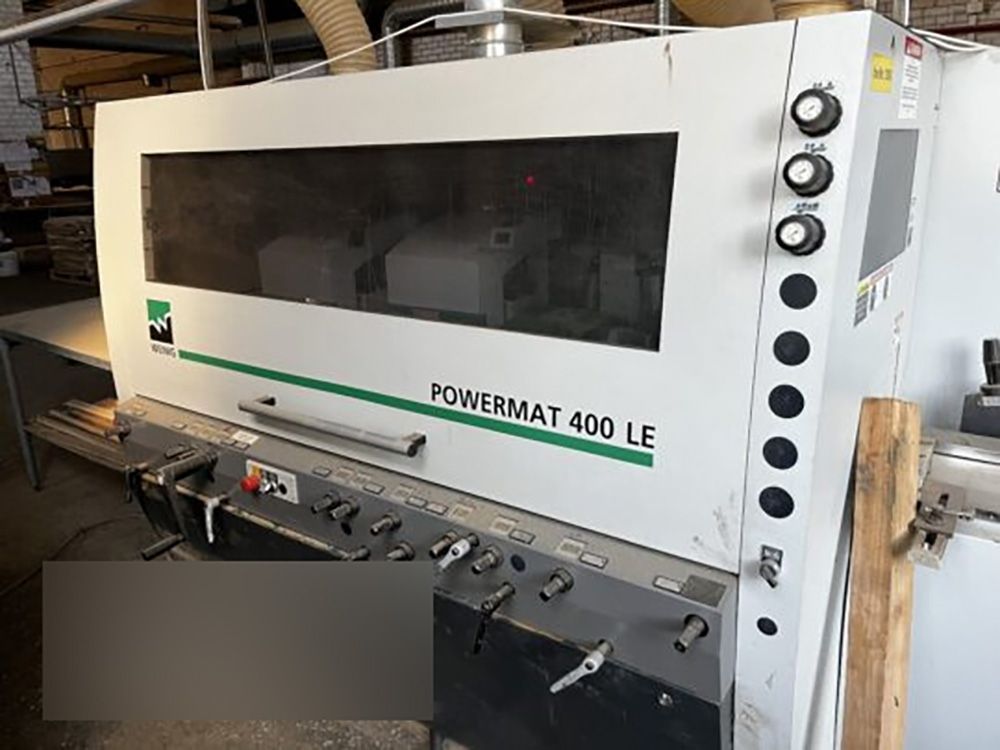

Weinig Powermat 400 LE

Four side moulding machine
Positions of moulding shafts:
I. Bottom, horizontal
II. Right side, vertical
III. Left side, vertical
IV. Top, horizontal
V. Top, horizontal
VI. Bottom, horizontal.
Maximal crossection of wooden element: 230×120 mm.
Shaft adjustment levers with digital position display.
Shafts‘ postions are adjustable with 0,1 mm precision.
Rotations of shafts n – 8000 rev/min.
Diameter of shafts’ d – 40 mm.
Feeding speed 6,5 – 36 m/min., adjustable via frequency converter.
Feeding with fool cardan gear.
Pneumatic pushing of feeding rollers.
Pushing force adjustable via pneumatic, separately for steel and rubber rollers.
First infeed table 2000 mm long.
Compressed air required 6 – 8 bar. Consumption of compressed air about 90 l/min.
Minimal air extraction capacity:
Vertical shafts – 1000-1200 m3/h, minimal air speed 25 m/s;
Horizontal shafts – 1350-1650 m3/h, minimal air speed 25 m/s;
Total extraction air capacity – 7100-8000 m3/h.
PowerLock planer heads.
All moulding shafts are for working with Power Lock tools, which as seen in photo, are included into the price.
CE safety regulations.
