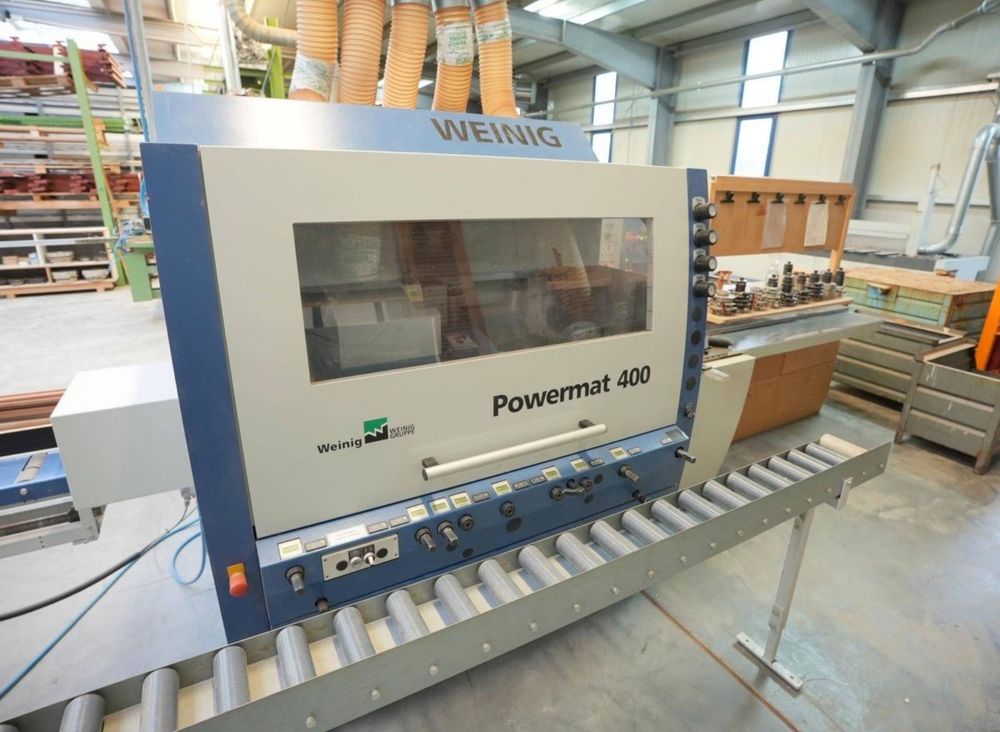

Weinig Powermat 400 with RF 15

Powermat 400 with HSK/Powerlock, axial/radial CNC controlled
5 spindles with 8,000 rpm
4 x HSK/Powerlock
Axially and radial CNC adjustments of the spindles via control
CNC-controlled adjustment and positioning of the feed
Includes Weinig/Neumann RF 15 return conveyor system

Detailed Description:
Technical Data:
Working width: 20-230 mm
Working height: 8-120 mm

1st tool holder - bottom
Motor with brake: 5.5 kW
Spindle diameter: 40 mm
Speed: 6,000 rpm
Tool swing diameter: 93 - 145 mm
Axially travel: 5 mm
Folding device
MarathonCoatin for table insert in front of 1st lower Tool Holder

2nd Tool Holder - PowerLock - Right
Motor with brake: 7.5 kW
Shared motor with left tool holder
Speed ??incl. high-performance ball bearings: 8,000 rpm
Tool swing diameter 40 mm below table level: 93 - 200 mm
Tool swing diameter 55 mm below table level: 93 - 180 mm
Tool swing diameter for straight cutter heads max. 163 mm
Max. tool diameter behind stop plane: 180 mm
Max. groove depth: 35 mm
Axially travel: 55 mm
Spindle: CNC controlled axially

3rd Tool Holder - PowerLock - Left
Motor with brake: Shared motor with the 2nd spindle
Speed ??incl. high-performance ball bearings: 8,000 rpm
Tool swing diameter 40 mm below table level: 93 - 180 mm Table surface: 93 - 200 mm
Tool swing diameter 55 mm below table surface: 93 - 180 mm
Tool swing diameter for straight cutter heads max. 163 mm
Max. groove depth: 35 mm
Axially travel: 55 mm
Spindle axially and radially CNC controlled

4. Tool holder - PowerLock - top
Motor with brake: 7.5 kW
Speed ??incl. high-performance ball bearings: 8,000 rpm
Tool swing diameter: 93 - 200 mm
Tool swing diameter for straight cutter heads max.: 180 mm
Max. groove depth: 35 mm
Axially travel: 40 mm
Split pressure shoe in front of upper tool holder, adjustable and pivoting away from the tool, spring-loaded.
Pressure shoe in front of, and discharge after, the upper tool holder with electronic digital displays, integrated into memory functions CNC-controlled radial spindle

5. Tool holder - PowerLock - bottom
Motor with brake: 7.5 kW
Speed ??incl. high-performance ball bearings: 8,000 rpm
Tool swing diameter: 93 - 200 mm
Max. throat depth: 15 mm
Axially travel: 35 mm

Feed system
Frequency-controlled feed, infinitely variable with brake: 4 kW, 5 - 30 m/min
Infeed roller in front of the first lower tool, pneumatically controlled up/down.
Durofer pointed tooth rollers (Weinig patent) with depth limiter and self-cleaning.
Adjustment range of the feed rollers relative to the left tool holder, axial 35 mm

Machine Electrical Systems :
Operating voltage 400 V (voltage range 380 - 420 volts), 50 Hz.
Electrical design according to DIN VDE 0113, electrical equipment of industrial machines EN60204, IEC-204-1.
Other electrical regulations are not considered.

Machine Stand, Tables and Stops
Infeed table: 2500 mm long (including jointing guide)
Manual lubricant pump for table degreasing

One driven rubber roller in the outfeed table - 50 mm wide
Pressure Elements and Guides
One lateral pressure roller in front of the left tool holder, rotating and spring-loaded.
Side pressure roller on the infeed table, spring-loaded

Machine operation
Control: Memory function
For saving the setting values ??of profiles.
Tool holder axes with electronic digital displays.

Function:
Save the setting values ??of the manufactured profile at the touch of a button under a profile number.
When the profile number is selected again, the electronic dual displays show the setting values.
By manually adjusting the tool holders, the displays are brought into conformity. 99 memory locations.
Basic equipment for the installation of CNC-controlled adjustment and positioning
2 x axial CNC-controlled adjustment and positioning of the tool holders in conjunction with the memory function for tool holders 2 and 3
2 x radial CNC-controlled adjustment and positioning of the tool holders in conjunction with the memory function for tool holders 3 and 4
CNC-controlled adjustment and positioning of the feed (up/down) in conjunction with the memory function
Lubrication points for the axial tool holder adjustment.
Central position of lubrication points on the front of the machine.

Safety and sound insulation
Full safety enclosure
Electromagnetic locking of the safety hood
Interior light
Machine including machining tools already on the machine
