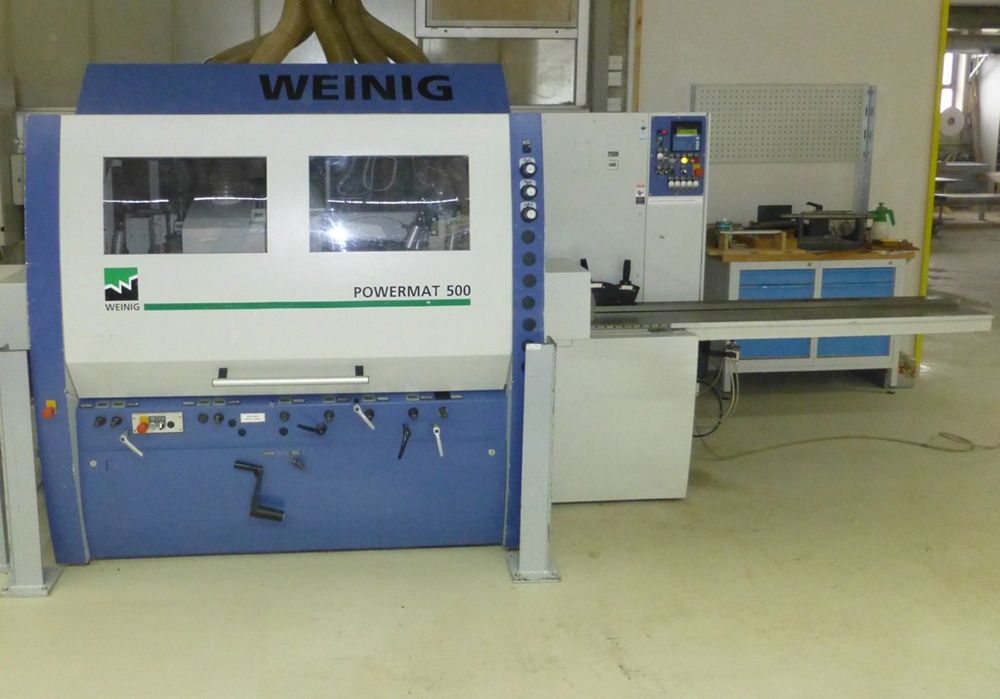

Weinig Powermat 500 with T-slot table

The machine arrives at the warehouse and is cleaned and fully inspected.
Brief Summary:
- 5 Spindles
- 8,000 rpm
- Grooved table for short or difficult-to-guide workpieces, coated with Marathon PowerCoating
- One driven roller in the outfeed table, hardened: 210 mm wide
- Left and top spindles controlled for width and height
- Quick-release spindle nut

Detailed Description:
Technical Data:
Working width: 20-230 mm
Working height: 8-120 mm
Number of spindles: 5

1st Spindle - bottom
Motor with brake: 7.5 kW
Spindle diameter: 40 mm
Speed: 8,000 rpm
Tool circle: 125-180 mm
Tool circle for rebate cutter: 130-160 mm
Travel Axial: 17 mm
Folding attachment
MarathonCoatin for table insert in front of 1st lower tool holder

2nd Spindle - right
Motor with brake: 5.5 kW
Spindle diameter: 40 mm
Speed: 8,000 rpm
Tool swing diameter: 93 - 200 mm
Max. groove depth: 35 mm
Axially travel: 80 mm
Radial travel:

Min. tool diameter at stop level: 93 mm
Max. tool diameter behind stop level: 200 mm

3rd Spindle - left
Motor with brake: 7.5 kW
Spindle diameter: 40 mm
Speed: 8,000 rpm
Tool swing diameter: 93 - 200 mm
Tool swing diameter for straight cutter heads: max. 163 mm
Max. Groove depth: 35 mm
Axially travel: 55 mm
Pressure shoe in front of left spindle, including 2 lateral
pressure rollers, spring-loaded
Spindle radially CNC-controlled

4th Spindle - top
Motor with brake: 11.0 kW
Spindle diameter: 40 mm
Speed: 8,000 rpm
Tool swing diameter: 93 - 200 mm
Maximum tool swing diameter for straight cutter heads: 180 mm
Maximum groove depth: 35 mm
Axially travel: 40 mm
Spindle radially CNC-controlled
Split pressure shoe in front of upper tool holder, adjustable to the tool swing diameter and pivoting away from the tool, spring-loaded.


5. Spindle - Lower
Motor with brake: 5.5 kW
Spindle diameter: 40 mm
Speed: 8,000 rpm
Tool swing diameter: 93 - 225 mm
Max. throat depth: 15 mm
Axially travel: 35 mm
Radial travel:
Min. tool diameter to table level: 93 mm
Max. tool diameter 6 mm below table level: 225 mm

Feed system
Frequency-controlled feed, infinitely variable with brake: 4 kW, 5 - 30 m/min
Infeed roller in front of the first lower tool, pneumatically controlled up/down.
Durofer pointed tooth rollers with depth limiter and self-cleaning.
Feed roller adjustment travel relative to the left tool holder, axial 35 mm
Reduced roller spacing relative to the right tool

Machine electrical system
Operating voltage 400 V (voltage range 380 - 420 V), 50 Hz.

Machine stand, tables, and stops
Infeed table: 2500 mm long (including jointing guide)
Slotted guide for short or difficult-to-guide workpieces, coated with Marathon PowerCoating. Table tops are not removable. Includes
Insert rail for transporting narrow workpieces on the slotted guide.
(Minimum working width 25 mm, maximum chip removal on the first lower spindle 7 mm)
Manual lubricant pump for removing resin from the groove guide, including lubricant
One driven, hardened roller in the outfeed table: 210 mm wide

Pressure elements and guides
Spring-loaded pressure rollers from above

Machine operation
Control: Memory function
For saving the setting values ??of profiles.
Tool holder axes with electronic digital displays.

Function:
Saving the setting values ??of the machined profile at the touch of a button under a profile number.
When the profile number is selected again, the electronic dual displays show the setting values.
By manually adjusting the tool holders, the displays are brought into conformity. 99 memory locations.
Basic equipment for installing CNC-controlled adjustment and positioning
2 x radial CNC-controlled adjustment and positioning of the tool holders in conjunction with the memory function for tool holders 3, 4
CNC-controlled adjustment and positioning of the feed (up/down) in conjunction with the memory function
Central position of lubrication points on the front of the machine.

Safety and noise reduction
Full safety enclosure
Includes existing tools
