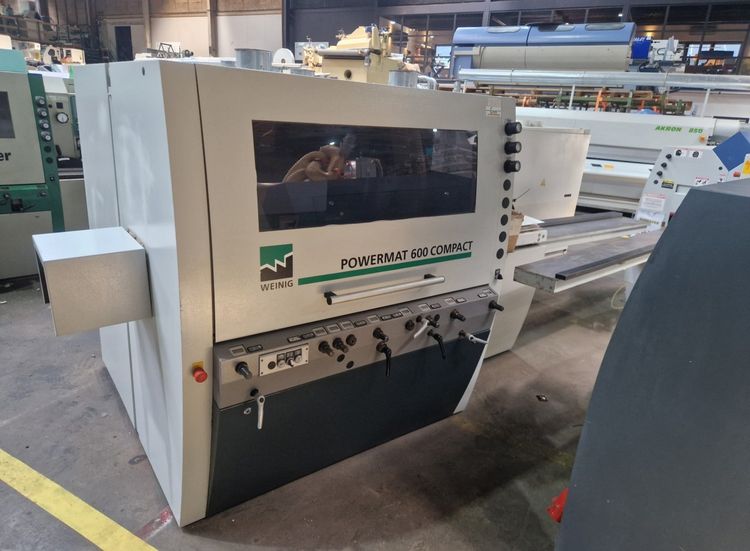

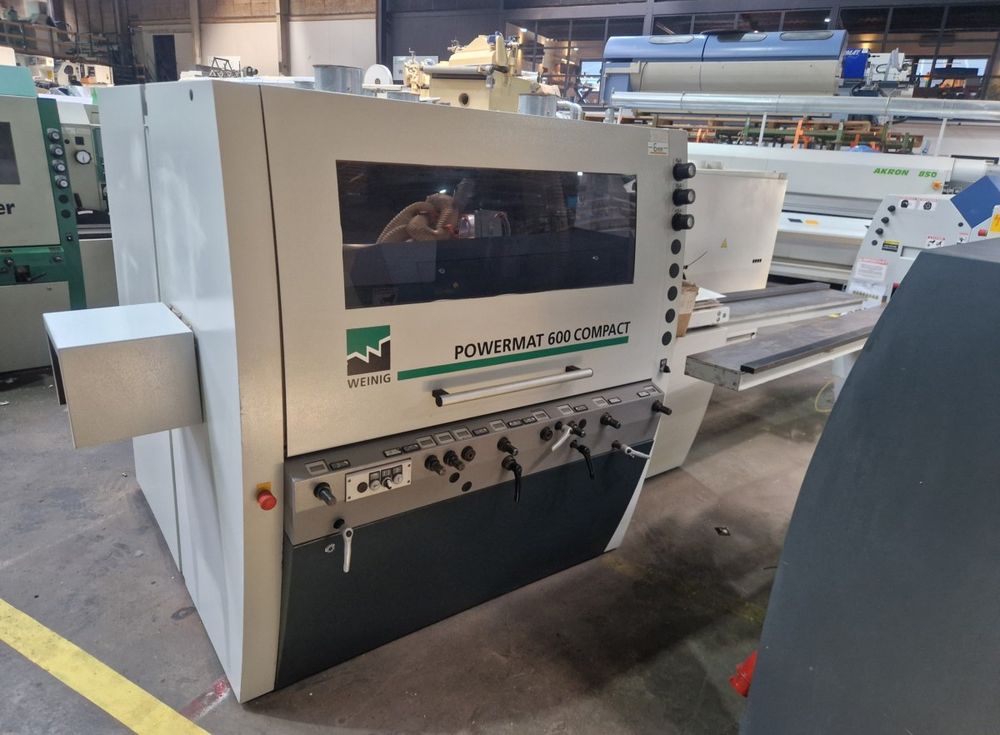

Weinig Powermat 600 Compact

Four-side moulder
Brief Summary:
- 5 spindles
- Powerful motors
- Left and upper spindles controlled for width and height

Detailed Description:
Technical Specifications:
Working width: 20-230 mm
Working height: 10-120 mm
Number of spindles: 5

1st spindle - bottom
Motor with brake: 7.5 kW
Spindle diameter: 40 mm
Speed: 6,000 rpm
Tool travel radius: 125-145 mm
Tool travel radius for rebate cutter: 130-160 mm
Axis adjustment range: 5 mm
Rebate device
MarathonCoatin for table insert in front of the 1st lower tool holder
Electronic digital display for wheel adjustment

2nd spindle - Right
Motor with brake: 11.0 kW
Shared motor with left-hand tool holder
Spindle diameter: 40 mm
Speed: 6,000 rpm
Tool cutting radius 40 mm below table level: 93 - 200 mm
Tool cutting radius 55 mm below table level: 93 - 180 mm
Tool cutting radius for straight cutter heads max. 163 mm
Max. tool diameter behind stop level: 180 mm
Max. throat depth: 35 mm
Axis adjustment range: 55 mm

3rd spindle - left
Motor with brake: Shared motor with the 2nd spindle
Spindle diameter: 40 mm
Speed: 6,000 rpm
Tool cutting radius 40 mm below table level: 93 - 200 mm
Tool cutting radius 55 mm below table level: 93 - 180 mm
Tool cutting circle for straight cutter heads max. 163 mm
Max. throat depth: 35 mm
Axial adjustment range: 55 mm
Radial CNC-controlled spindle

4th spindle - top
Motor with brake: 11.0 kW
Spindle diameter: 40 mm
Speed: 6,000 rpm
Tool cutting circle: 93 - 200 mm
Tool cutting circle for straight cutter heads max.: 180 mm
Max. throat depth: 35 mm
Axial adjustment range: 40 mm
Radial CNC-controlled spindle

Split pressure shoe in front of the upper tool holder, adjustable to the tool cutting circle and pivoting away from the tool, spring-loaded.
Pressure shoe before and discharge after the upper spindle with electronic digital displays, integrated into the memory function.

5th spindle - lower
Motor with brake: 7.5 kW
Spindle diameter: 40 mm
Speed: 6,000 rpm
Tool cutting radius: 93 - 200 mm
Max. groove depth: 15 mm
Axis adjustment range: 35 mm

Feed system
Electronic feed, continuously adjustable with brake: 4 kW, 5 - 30 m/min
Feed roller in front of the first lower tool, pneumatically controlled up/down.
Durofer pointed tooth rollers with depth gauge and self-cleaning.
Adjustment range of the feed rollers relative to the left tool holder, axial: 35 mm

Machine electrical system:
Operating voltage 400 V (voltage range 380 - 420 V), 50 Hz.
All spindles are IE 2 version.
Electrical design according to DIN VDE 0113, electrical equipment for industrial machines EN60204, IEC-204-1.
Other electrical regulations are not taken into account.

Machine stands, tables, and stops
Surface table: 2500 mm long (including jointing ruler)
Manual lubricant pump for resin removal
One driven rubber roller in the outfeed table - 50 mm wide

Pressure elements and guides
One lateral pressure roller in front of the left tool holder, revolving and spring-loaded.

Machine operation:
Control system: MemoryPlus
For saving profile settings.
Spindle axes with electronic dual displays.
Graphic display enables intuitive operation
2 x radial CNC-controlled spindle adjustment and positioning in conjunction with the memory function for spindles 3 and 4
CNC-controlled adjustment and positioning of the feed (up/down) in conjunction with the memory function
Lubrication points for the axial tool holder adjustment.
Centrally located lubrication points on the front of the machine.

Safety and sound insulation:
Full safety enclosure
Option: Used planing tools as available
