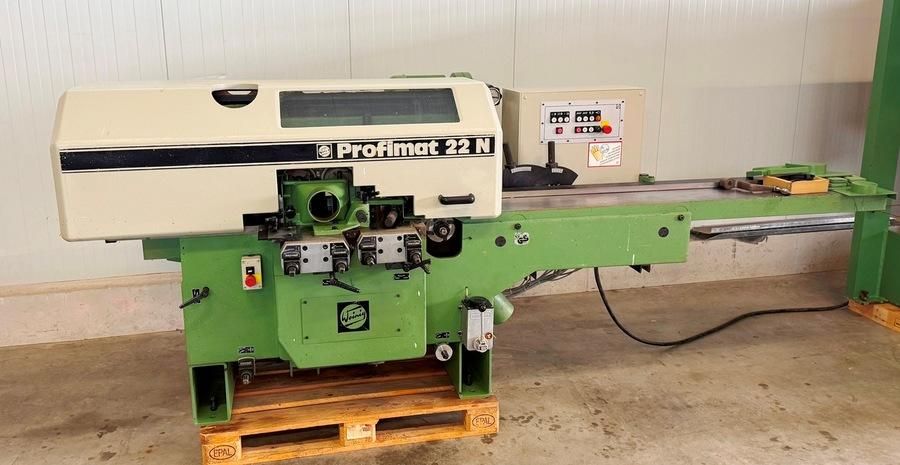

Weinig Profimat 22 N

Four-sided planing machine Used
Spindle arrangement: 1st spindle under table (planer), 2nd spindle right (jointer), 3rd spindle left, 4th spindle top
Infinitely variable chainless cardan feed

Technical data:
- Working width 220 mm (with tool diameter 125 mm)
- Working height 120 mm (with tool diameter 125 mm)
- Motor power of the feed 2.2 kW
- Motor power of the 1st spindle at the bottom 4 kW
- Motor power of left and right spindle together 5.5 kW
- Motor power of 4th spindle top 5.5 kW
- Speed of the spindles 6000 rpm
- Diameter of the spindles 40 mm
- Smallest tool diameter 125 mm
- Largest tool diameter of the 1st lower spindle 125 mm
- Largest tool diameter of the right-hand spindle 125 mm
- Largest tool diameter of the left-hand spindle 125 mm
- Largest tool diameter of the upper spindle 200 mm
- Feed speed, infinitely variable 5 - 22 m/min
- Diameter of the feed rollers 140 mm
- Width of the feed rollers 50 mm
- Length of the dressing table 2000 mm
- Inching switch for feed forwards / backwards
- Fold-up safety cover for the feed rollers
- Driven roller in the outfeed table
- Pneumatic pressure for feed rollers with water separator
- Brake system for mechanical feed, short roller distance

Planing table and jointing fence adjustable for chip removal via parallelogram
Spring-loaded pressure beams in front of left and top spindle

Profiling package, consisting of:
- Axial adjustment of the right, left and top spindles, 20 mm each
- Min. tool diameter for upper and 2nd lower spindle 100 mm
- Machine stop after right spindle adjustable to the tool diameter
- Guide ruler to left spindle adjustable to tool diameter
- Link pressure bar and discharge before and after upper spindle, height-adjustable to the tool diameter
- Max. Tool diameter right 195 mm to 15 mm under table
- Max. Tool diameter right and left 180 mm to 20 mm under table

- Removal for cut-out glazing bead after upper spindle
- Roller contact pressure (1 roller) opposite 1st right spindle telescopically sprung
- Waxilite pump for table resin removal manually operated
- 2 pressure rollers from above
- Spindle adjustment according to mechanical numerical display for spindle no. 3 - forwards / backwards
- Spindle adjustment according to mechanical numerical display for spindle no. 4 - up / down
- 3 Spindle braking mechanical up to 22 kW for spindle no. 1, 2/3, 4
4 cutter heads, tool length at bottom and top 225 mm, right and left 130 mm
Left spindle manually adjustable in width
Transport dimensions approx. 3500 x 1500 x 1600 mm, LWH
Weight approx. 2000 kg
