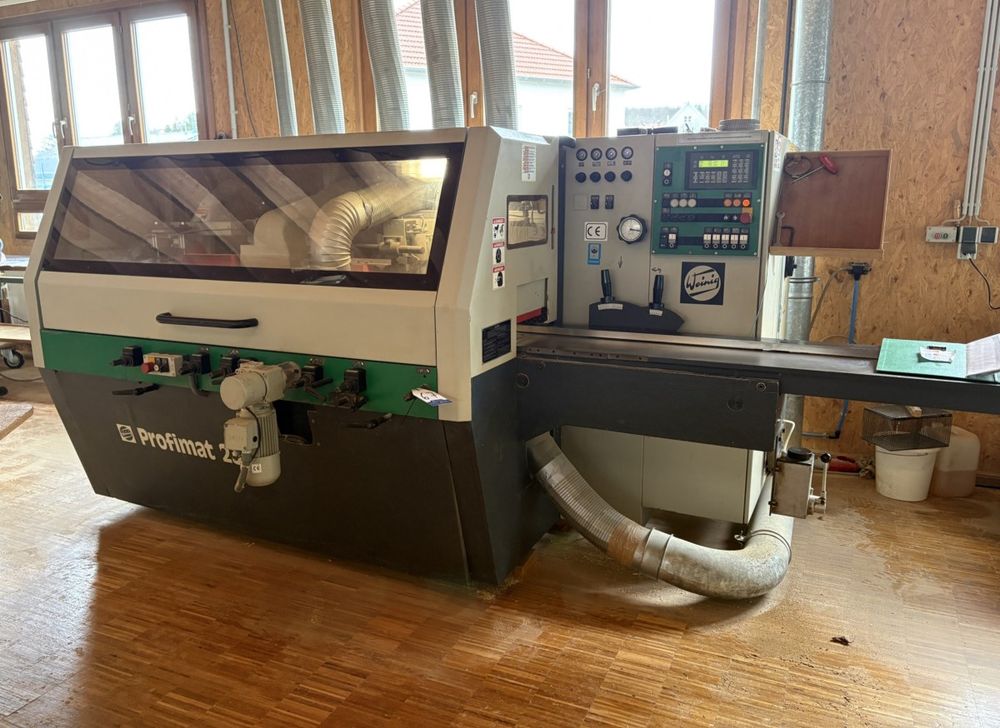

Weinig Profimat 23 E_window

Four-Sided Planer – Window Version
(With glazing bead separation feature, or usable as a grooving spindle)
ATS Control and Program Control

Technical Specifications Summary :
General:
> Working width: 230 mm
> Working height: 120 mm
> Number of spindles: 6
> Infeed table length: 2500 mm
> Feed motor: 3 kW
> Feed speed: 5–24 m/min
> Total power requirement: 27 kW
> Dimensions: 3900 x 2200 x 2000 mm
> Machine weight (approx.): 2500 kg

Spindle Arrangement :
> Spindle 1: Bottom
> Spindle 2: Right (pneumatically actuated: up/down)
> Spindle 3: Left
> Spindle 4: Top
> Spindle 5: Bottom
> Spindle 6: Glazing bead saw (pneumatically actuated: up/down)

Spindle Specifications:
> Spindle 1: 4 kW, 6000 rpm, 40 mm diameter
> Spindle 2: 7.5 kW, 6000 rpm, 40 mm diameter
> Spindle 3: 6000 rpm, 40 mm diameter
> Spindle 4: 5.5 kW, 6000 rpm, 40 mm diameter
> Spindle 5: 4 kW, 6000 rpm, 40 mm diameter
> Spindle 6: Glazing bead saw (2.2 kW, 6000 rpm, 40 mm diameter)

Additional Features:
> Glazing bead separation feature (or usable as a grooving unit)
> ATS Control (automatic) 2-axis positioning for width and height (left and top spindles) with program memory (99 programs)
> Machine operation: Window package
Joint control of the right spindle and the glazing bead outfeed via manual selector switch on the control panel
> Spindles with mechanical digital displays

Option:
Used planer heads
