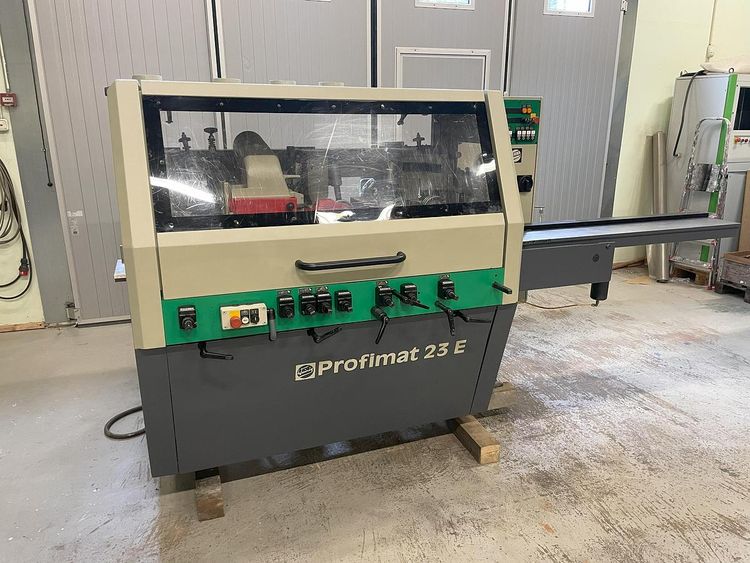

Weinig PROFIMAT 23 E

Four-sided planer
Maximum working width: 230 mm
Maximum working height: 120 mm
infinitely variable Kardang feed 5-24 m/min
Feed motor: 2.2 kW
1st spindle below: 4.0 kW
2nd spindle right – motor for the 2nd and 3rd spindle: 7.5 kW
3rd spindle left
4th spindle above: motor 5.5 kW
5th spindle below: motor 4.0 kW
Electric height adjustment: 0.25 kW
All spindles with brake motors
Spindle speed: 6,000 RPM
Spindle diameter: ø 40 mm
Planing table: 2,000 mm with geared fence edges and matching fence rail
Feed rollers with pneumatic pressure
Feed rollers diameter: 140 mm
Conveying rollers opposite the left spindle
Infeed roller in front of the planing unit pneumatically clocked
SICO counters
Manual wax pump
Central lubrication points
1 set of planer heads
Total power connection: 25 kW
Machine dimensions: L=3400 mm, W=1800 mm, H=1610 mm
Weight: 2500 kg
