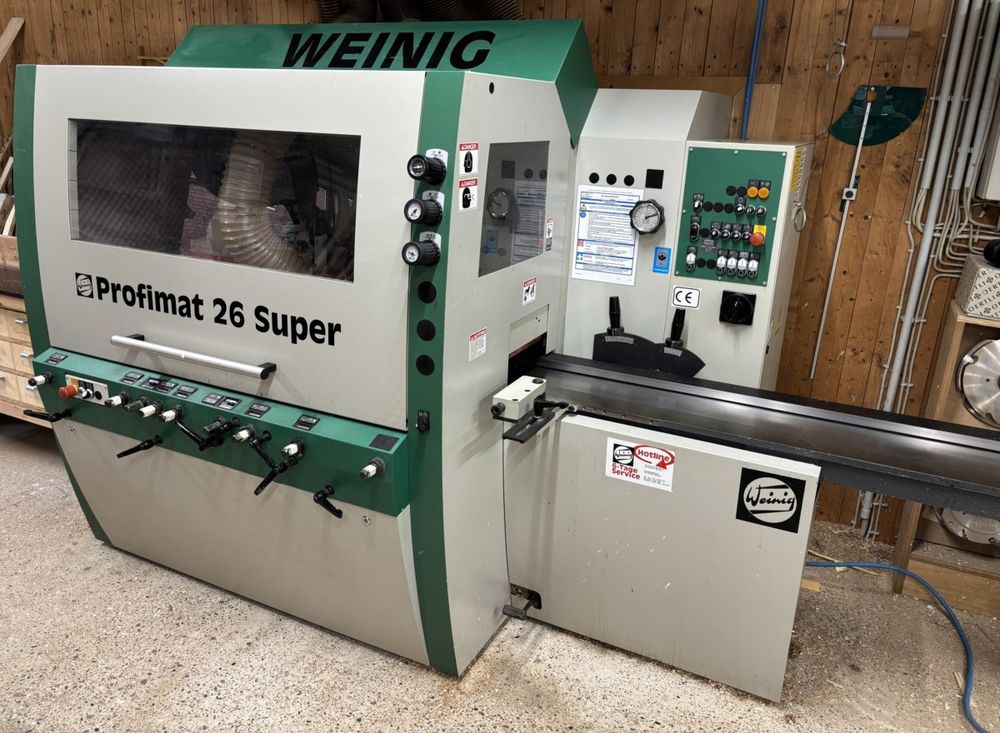

Weinig Profimat 26 Super_Window

Four-Sided Planer
Summary:
- 5 spindles (bottom, right, left, top, bottom)
- Common control of the right spindle (axial), top spindle (axial), and glass bead discharge.
- Working width (with a 125 mm tool circle) 20 - 230 mm
- Working height (with a 125 mm tool circle) 8 - 120 mm

Detailed description:
1. SPINDLE
- First lower horizontal spindle
- Motor with brake 5.5 kW
- Diameter 40 mm
- Speed ??6,000 rpm
- Tool circle 125 - 145 mm
- Axial travel 5 mm
- Rebating device
- Hardened table insert in front of the 1st lower spindle

2. SPINDLE
- First right vertical spindle
- Motor with brake 7.5 kW
Shared motor with left vertical spindle
- Diameter 40 mm
- Speed ??6,000 rpm
- Tool circle 15 mm below table level 100 - 200 mm
- Tool circle 40 mm below table level 100 - 180 mm
- Max. tool diameter behind stop level 180 mm
- Max. groove depth 35 mm
- Axial travel 40 mm
- Right spindle pneumatically controlled axially (40 mm) via selector switch, max. saw blade diameter 180 mm
- Insertion segment 125 mm

3. SPINDLE
- First left vertical spindle
- Shared motor with 1st right vertical spindle
- Diameter 40 mm
- Speed ??6,000 rpm
- Tool swing circle 15 mm below table level 100 - 200 mm
- Tool swing circle 40 mm below table level 100 - 180 mm
- Max. Tool diameter behind stop plane 180 mm
-Maximum groove depth 35 mm
-Axially travel 40 mm
-Insert segment 125 mm

4. SPINDLE
-First upper horizontal spindle
-Motor with brake 7.5 kW
-Diameter 40 mm
-Speed ??6,000 rpm
-Tool swing circle 112 - 200 mm
-Maximum groove depth 35 mm
-Axially travel 40 mm
-Upper horizontal spindle pneumatically controlled axially (40 mm)
via selector switch, Max. saw diameter 200 mm
-Split pressure shoe in front of upper spindle, adjustable to the
tool swing circle and pivoting away from the tool, spring-loaded.
- Pneumatically adjustable up/down glazing bead discharge to the upper spindle

5. SPINDLE
- Second lower horizontal spindle
- Motor with brake 4.0 kW
- Diameter 40 mm
- Speed ??6,000 rpm
- Tooling circle 112 - 200 mm
- Maximum groove depth 15 mm
All groove spindles dynamically balanced for high concentricity
Common control of the right spindle (axial), upper spindle (axial) and glazing bead discharge

FEED SYSTEM
- Mechanical feed, infinitely variable 5 - 24 m/min. With brake – 2.2 kW
-Feed roller in front of the first lower tool, pneumatically
controlled "up-down"
-Durofer pointed tooth rollers (Weinig patent) with depth limiter and self-cleaning
-Adjustment travel of the feed rollers relative to the left spindle, axial 35 mm

MACHINE ELECTRICAL TECHNOLOGY
-Operating voltage 400 volts (voltage range 380–420 volts), 50 Hz
-Electrical design according to DIN VDE 0113, electrical equipment of industrial machines EN 60204, IEC 204-1
Other electrical regulations are not considered.

MACHINE STANDS, TABLES, STOPS
- 2 m long jointer table (incl. jointing guide)
- Stops on the right spindle recessed by 35 mm for square strip cutting
- Manual Waxilit pump for table resin removal

PRESSURE ELEMENTS AND GUIDES
- Spring-loaded side pressure roller on the infeed table
Spring-loaded top pressure rollers

MACHINE OPERATION
- Both axes of all spindles - except the first lower spindle - are equipped with mechanical digital displays.
- Pressure guard in front of and discharge after the upper spindle with mechanical digital display
- DigiSet (digital dual display) for left and upper spindles
(Set tool radius - read wood dimension)
- Lubrication points for axial spindle adjustment
- Central position of lubrication points on the front of the machine

SAFETY AND SOUND INSULATION :
- Full safety enclosure. Easily hinged safety hood with window
covers the entire working area (feed and spindles) and protects against mechanical hazards.
When the safety hood is raised, the spindles and feed are automatically switched off. Machine with CE marking.
Machine without machining tools.
Extraction port diameter: 5 x 140 mm
