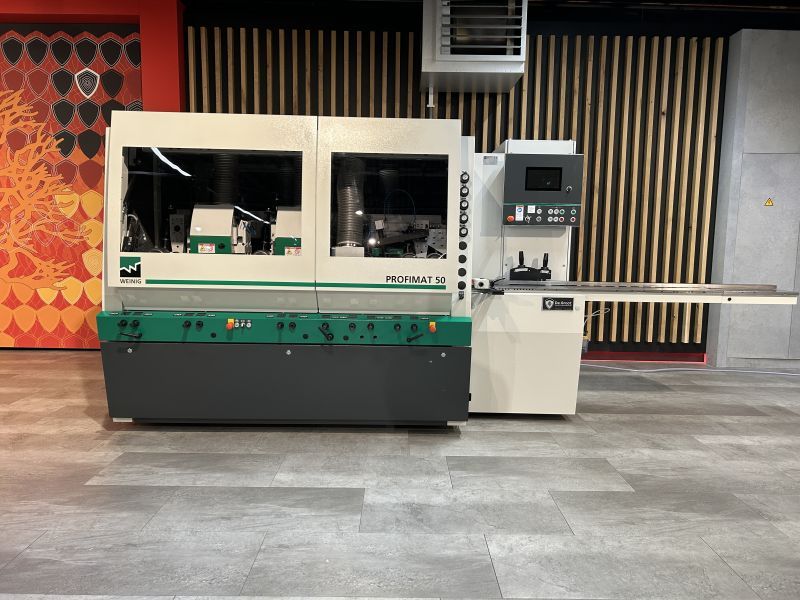

Weinig Profimat 50

Four-sided planer (Demo model)
Number of spindles: 6
Front planer table size: 2,000 mm
Feed speeds: 5 - 40 m/min
Electric high/low: Yes
Motor power: 53 kW
Planing heads: No
Spindle arrangement: Bottom / right / left / top / top / bottom
Waxilite pump: Yes, manual
Working width min/max: 20 - 230 mm
Working height min/max: 10 - 160 mm

5-axis sequence: bottom - right - left - top - bottom
Working width: 20 - 230 mm
Working height: 10 - 160 mm
Motor power: 45 kW
Axle speed: 7000
Feed rate: 5 - 30 m/min
Axle diameter: 40 mm
Operating voltage: 400V, 50 Hz
Dimensions: 3,820 x 1,540 x 1,900 mm
Memory-plus control system
Electronic axis position indicators
Front surface table 2,500 mm
Lateral pressure roller infeed
Lateral pressure roller for left axis
Pneumatic feed roller, up-down
Pneumatic, swing-away pressure roller from above (left and right axis)
Split pressure shoe for top axis, mechanical digital readout
Split pressure shoe for top axis, swing-away (spring-loaded)
Protective cover with interior lighting
Central Front lubrication
Waxilite pump (manual)

Advantages of the Weinig Profimat 50 Four-Sided Planer:
Short setup times thanks to intuitive operation
Durable
Safe working
Profiling
6-40 meters/minute
