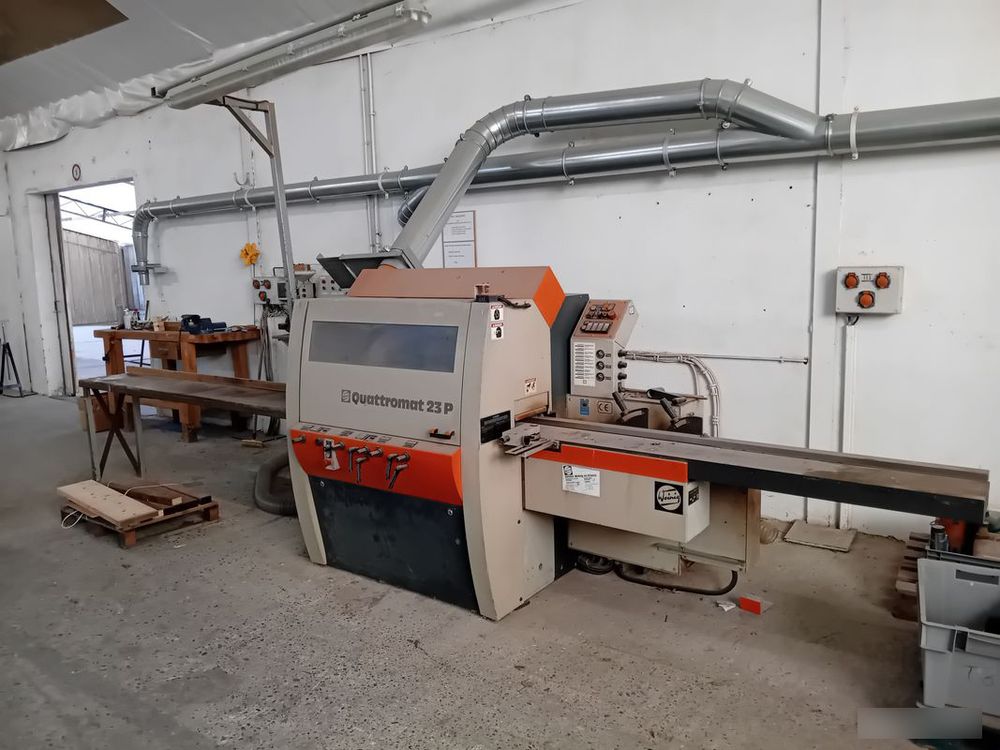

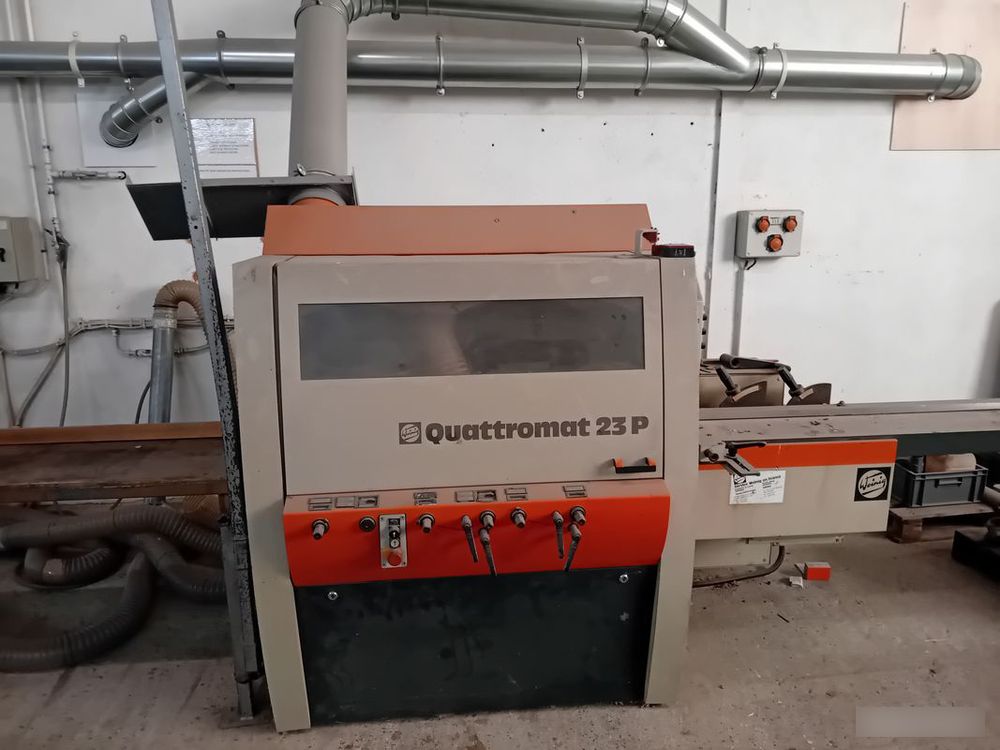

Weinig Quattromat 23P
EUROPE (Western and Northern)
The Weinig Quattromat 23P industrial machine is designed for planing and profiling wood on all four sides in a single pass.
Ideal for producing joinery parts, moldings, profiles, cladding, paneling, and other wooden components.
This robust, reliable machine is easy to integrate into a professional production or joinery workshop.
Main Technical Specifications :
* Working width: 13 to 230 mm
* Working height: 6 to 120 mm
* Number of spindles: 4 spindles/motors
* Spindle diameter: 40 mm
* Spindle speed: approx. 6,000 rpm
* Feed speed: variable up to approx. 20 m/min depending on configuration
* Infeed table: length 1800 to 2500 mm (depending on the version)
* Pneumatic roller pressure: yes, for stable workpiece support
* Power supply: three-phase, powerful motor for intensive machining
* Structure: heavy cast iron base for stability and vibration absorption
**Features and Benefits**
Four-sided machining in a single pass – significant time savings compared to a simple planer.
Multi-axis spindle adjustment – flexibility for complex machining and profiles.
Feed system with pneumatic pressure – constant support for even small workpieces.
Compact and robust design – highly reliable European machine.
Compliant with CE standards (safety belt, guards, interlock) depending on the version.
Integrated chip extraction – only one dust extraction hose connection required.
Practical Details:
* Suitable for woodworking shops, furniture manufacturers, production workshops & SMEs.
* Suitable for straight and profile planing of workpieces up to 230 mm wide.
* Compact machine despite its industrial capacity.
* Easily integrated into an existing production line.
