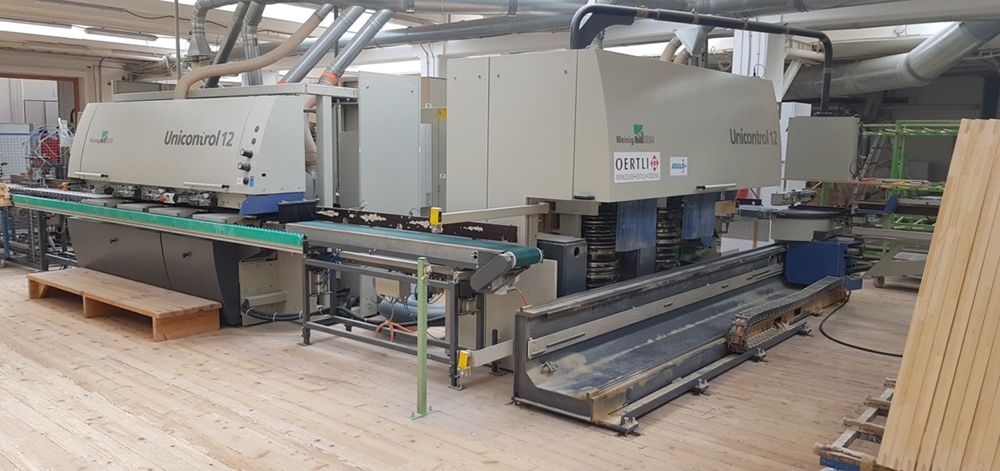

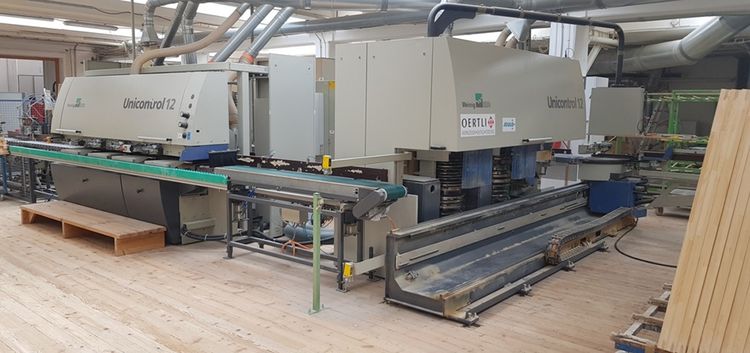

Weinig Unicontrol 12 CNC

Brief Summary:
- 2 x tenoning spindles each 640 mm length, CNC controlled
- "Vario-Table"
- 3 x profile spindles each 400 mm length, CNC controlled
- FItting spindle + grooving units (top and bottom)
- Includes used window tools for Unicontrol 12, OERTLI
programmed and set up for various wood thicknesses and systems (see pdf attached).

Detailed Description:
Crosscut saw
Crosscut saw electronically, horizontally infinitely adjustable
Number of tools: 1 pc.
Spindle speed: 3000-6000 rpm
Spindle diameter: 40mm
Tool diameter max.: 400 mm
Motor power: 3 kW
Laser guide light to identify the saw section

Rounding aggregate
Position: horizontally below
Motor power: 1 kW
Spindle diameter: 20mm
Spindle speed: 9000 rpm
Tool flight circle max.: 130 mm
electronic length stop, length: 3500 mm

1. tenoning Spindle
Number of tools: variable, CNC-controlled
Tool clamping length: 640 mm
Vertical spindle stroke: variable, CNC-controlled
Spindle speed: 2800-4000 rpm
Spindle diameter: 50mm
Tool diameter max.: 380 mm
Motor power: 15 kW

2. Tap and Slot Spindle
Number of tools: variable, CNC-controlled
Tool clamping length: 640 mm
Vertical spindle stroke: variable, CNC-controlled
Spindle speed: 2800-4000 rpm
Spindle diameter: 50mm
Tool diameter max.: 380 mm
Motor power: 15 kW

1. Profiling spindle
--------------------------------------------------------
Position: vertical right
Number of tools: variable, CNC-controlled
Tool clamping length: 400 mm with upper bearing
Vertical spindle stroke: variable, CNC-controlled
Horizontal spindle stroke: variable, CNC-controlled
Spindle speed: 6000 rpm
Spindle diameter: 50mm
Tool flight circle max.: 232 mm
Motor power: 11 kW

2. Profiling spindle
Position: vertical right
Number of tools: variable, CNC-controlled
Tool clamping length: 400 mm with upper bearing
Vertical spindle stroke: variable, CNC-controlled
Horizontal spindle stroke: variable, CNC-controlled
Spindle speed: 6000 rpm
Spindle diameter: 50mm
Tool flight circle max.: 232 mm
Motor power: 11 kW

3. Profiling spindle
Position: horizontally above
Tool clamping length: 40 mm
Spindle speed: 9000 rpm
Spindle diameter: 40mm
Tool flight circle max.: 130 mm
Motor power: 3.7 kW

4. Profiling spindle
Position: vertical right
Number of tools: variable, CNC-controlled
Tool clamping length: 400 mm with upper bearing
Vertical spindle stroke: variable, CNC-controlled
Horizontal spindle stroke: variable, CNC-controlled
Spindle speed: 6000 rpm
Spindle diameter: 50mm
Tool flight circle max.: 232 mm
Motor power: 11 kW

5. Profiling spindle
Position: vertical right
Tool clamping length: 160 mm
Spindle speed: 5850 rpm
Spindle diameter: 40mm
Tool flight circle max.: 210 mm
Motor power: 3.7 kW

6. Profiling spindle
Position: vertical top right
Tool clamping length: 40 mm
Spindle speed: 5850 rpm
Spindle diameter: 40mm
Tool flight circle max.: 180 mm
Motor power: 3 kW

7. Profiling spindle
Position: horizontally below
Tool clamping length: 125 mm
Spindle speed: 5850 rpm
Spindle diameter: 40mm
Tool flight circle max.: 200 mm
Motor power: 3 kW

Other features :
online enabled
Folding device for tear-free folding
double part package
Return conveyor device for 1-man operation
screen controls
Pitched window facility
electronic angle indicator for pitched windows
Control: PC control, Nexus
Vario table for single part production (horizontal NC axis for slot table)

Including
used window tools for Unicontrol 12, OERTLI programmed and run-in for various timber thicknesses and systems.
