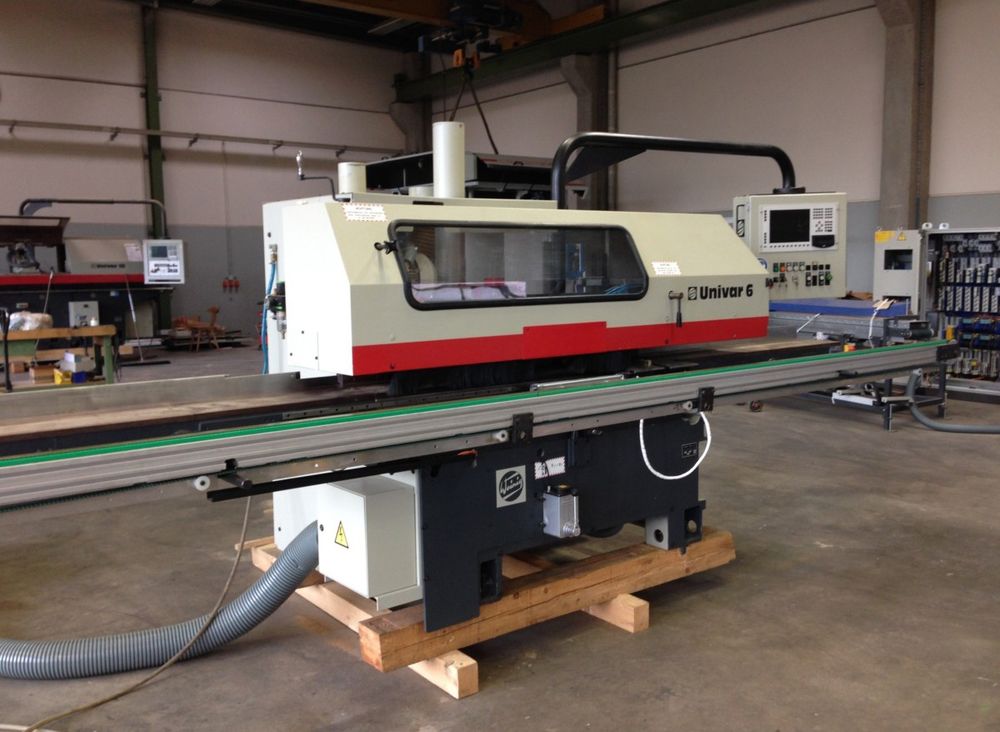

Weinig Univar 6

CNC Spindeln
1st profiling spindle:
> spindle rotation direction: clockwise and reverse for rip-off free outside profiling of sashes
> position: vertical right
> number of tools: 1 pcs.
> length of spindle: 120 mm
> number of revolutions: 6000 rpm
> spindle diameter: 50 mm
> tool diameter max.: 232 mm
> engine: 11 kW

2nd profiling spindle:
> position: vertical right
> number of tools: variabel, CNC
> length of spindle: 320 mm
> spindle stroke vertical: variabel, CNC
> number of revolutions: 6000 rpm
> spindle diameter: 50 mm
> tool diameter max.: 232 mm
> engine: 11 kW

3rd profiling spindle:
> position: vertical right
> length of spindle: 160 mm
> number of revolutions: 5850 rpm
> spindle diameter: 40 mm
> tool diameter max.: 210 mm
> engine: 3 kW

More features:
> possible to work online:
> monitor control:
> Equipment for profiling small sashes: min. 500 mm
> Control: PC-Nexus
