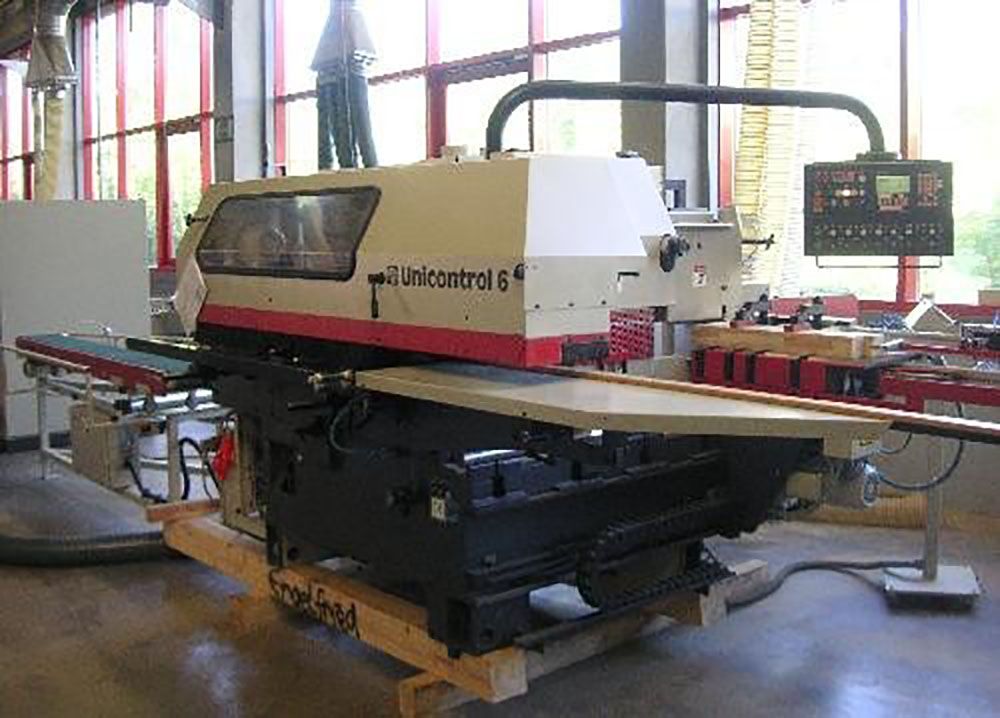

Weinig Unicontrol 6 Ultra

Unicontrol 6 with electric length stop and swivel belt
Crosscut Saw
> Pneumatic crosscut saw, against turret stop:
> Spindle speed: 2,800 rpm
> Spindle diameter: 40 mm
> Maximum tool diameter: 350 mm
> Motor power: 3 kW
> Laser guide light for identifying the saw cut:

Length Stop
> Electronic length stop

1. Tenoning and Mortising Spindle
> Number of tools: 3/4 pcs.
> Tool clamping length: 320 mm
> Pneumatic vertical spindle stroke: 240 mm for wood thicknesses IV 68-92
> Spindle speed: 3,500 rpm
> Spindle diameter: 50 mm
> Maximum tool diameter: 320 mm
> Motor power: 11 kW

1. Profiling spindle - Crank-and-turn spindle (co-rotation and conventional rotation)
> Position: vertical right
> Number of tools: 1
> Tool clamping length: 120 mm
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Maximum tool swing diameter: 232 mm
> Motor power: 7.5 kW

2. Profiling spindle
> Position: vertical right
> Number of tools: 3/4
> Tool clamping length: 320 mm
> Pneumatic vertical spindle stroke: 240 mm for wood thicknesses IV 68-92
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Maximum tool swing diameter: 232 mm
> Motor power: 11 kW

3. Profiling spindle (fitting spindle)
> Position: vertical right
> Number of tools: 3
> Spindle speed: 6000 rpm
> Spindle diameter: 40 mm
> Maximum tool swing diameter: 180 mm
> Motor power: 3 kW

4. Grooving unit, horizontal-vertical indexing
> Position: horizontal top
> Number of tools: 1
> Tool clamping length: 40 mm
> Spindle diameter: 40 mm
> Maximum tool swing diameter: 130 mm
> Motor power: 3 kW

Further features:
> Rebating device for tear-out-free rebating
> Double part package
> Return feeder for one-person operation
> Screen control
> Slanted window fitting
> Electronic angle indicator for slanted windows
> Clocked muntin bar support rail

Includes
Used Leitz 78/90 wood and wood/aluminum window tools
