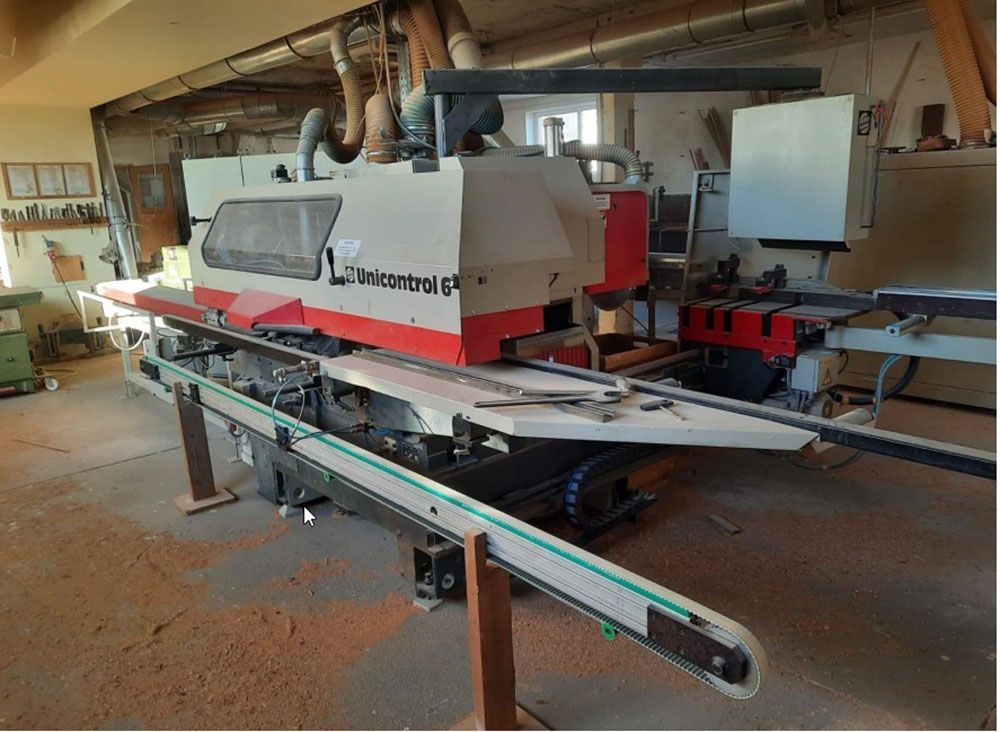

Weinig Unicontrol 6

Window production centre
Item 1: Crosscut Saw
> Number of tools: 1 pc.
> Spindle speed: 2,800 rpm
> Spindle diameter: 40 mm
> Maximum tool diameter: 400 mm
> Motor power: 3.7 kW
> Laser alignment light for detecting the saw cut

CNC-controlled length stop
> Length 3,500 mm
> Electronic length stop including positioned crosscut saw

Item 2: Tenon and slotting spindle
> Number of tools: 3 (stroke 2 x 100) mm) or 4 (stroke 3 x 80 mm)
> Tool clamping length: 320 mm
> Vertical pneumatic spindle stroke: 240 mm for wood thicknesses 68 - 92 mm
> Spindle speed: 3000 rpm
> Max. tool travel circle: 320 mm
> Spindle diameter: 50 mm
> Max. tool diameter: 360 mm
> Motor power: 11 kW

Item 3: 1st profiling spindle (straight and counter-rotating)
> Position: vertical right
> Number of tools: 1
> Tool clamping length: 120 mm
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Max. tool travel circle: 232 mm
> Motor power: 7.5 kW

Item 4: 2nd profiling spindle
> Position: vertical right
> Number of tools: 3 (stroke 2 x 100 mm) or 4 (stroke 3 x 80 mm)
> Tool clamping length: 320 mm
> Vertical pneumatic spindle stroke: 240 mm for wood thicknesses 68 - 92 mm
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Maximum tool travel: 232 mm
> Motor power: 11 kW

2 axially indexed feed rollers opposite the profiling spindle, for the production of narrow, short parts (e.g., glass-parted muntins)

Muntin guide consisting of:
Muntin support bar from above in the area of ??the profile milling unit vertically on the right and the profiling spindle.

Item 5: Profile milling unit, horizontal, top
> Clamping length: 40 mm
> Spindle diameter: 40 mm
> Motor power: 3.0 kW
> Speed: 5,850 rpm
> Tool travel radius max. 130 mm
> Axial adjustment range: 30 mm, 2 positions
> Radial adjustment range: 125 mm, 4 positions, manual

Item 6: 3rd profiling spindle (fitting spindle)
> Position: vertical right
> Tool clamping length: 160 mm
> Axial adjustment range: 115 mm, 8 positions via pneumatic turret
> Radial adjustment range: 110 mm, 8 positions via pneumatic turret
> Spindle speed: 5,850 rpm
> Spindle diameter: 40 mm
> Tool travel radius Max.: 210 mm
> Motor power: 3.8 kW

Other features:
> Electric feed height adjustment including mechanical digital display and manual feed bar clamp
> Rebating device for tear-free rebating
> Double parts package
> Return conveyor for one-person operation: swivel belt
> Screen control
> Sloped window device
> Electronic angle display for sloped windows
> Industrial PC, with Windows PC control/NEXUS

Extraction nozzle diameter:
Crosscut saw 80 mm
Slotting spindle 140 mm
Profile spindle 1 140 mm
Profile spindle 2 140 mm
Top grooving device 80 mm
Fitting spindle 120 mm

OPTION with additional charge:
Stock number #6959: Used Leitz tools, year of manufacture 2009:
- IV 68/78 wood (additionally prepared for IV 88, split bushings)
- and IV 68/78 wood-aluminum.
- Including extensive spare blades

Tools were used on a Weinig Unicontrol 6 with pneumatic fixed stroke adjustment.
The tools are sold in the condition, scope, and accessories as they are available in our stock.
Note regarding window diagrams, tool drawings, and tool system lists:
Engelfried assumes no liability that the actual tools available will match the systems mentioned and shown.
