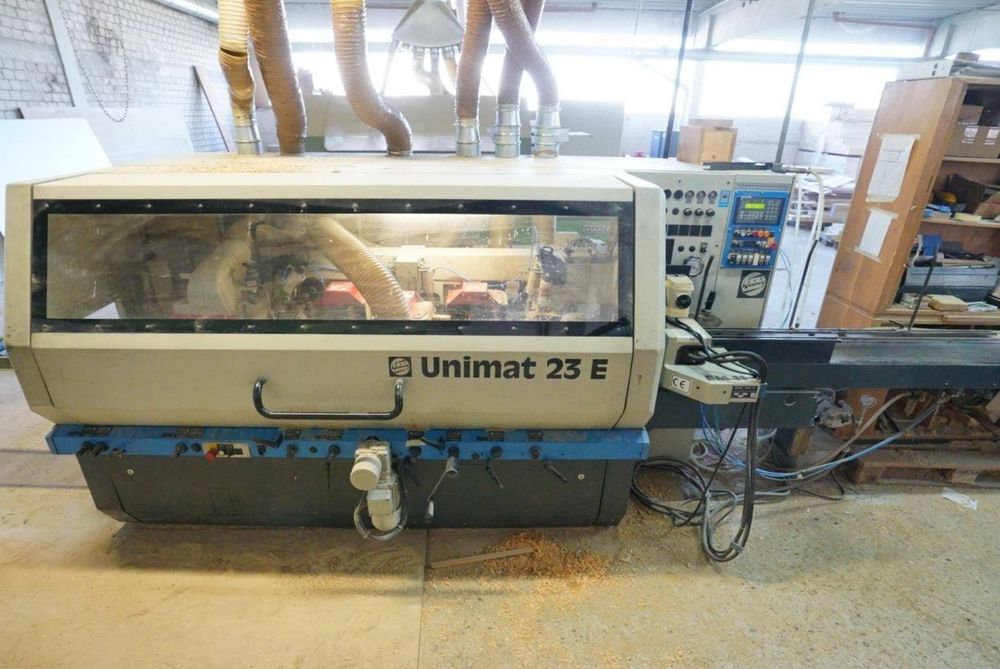

Weinig Unimat 23 E with EM11

4-side Planer and Moulder
6 spindles (2 on the right), powerful motors, EM 11 feed magazine available

Working width 20 - 230 mm
Working height 8 - 120 mm

1st spindle, bottom 7.5 kW
Diameter 40 mm
Speed ??6000 rpm
Tool travel radius 125 - 180 mm
Folding device including tool
Hardened table insert in front of 1st lower spindle

2nd spindle, right 11.0 kW
Shared motor with left vertical spindle
Diameter 40 mm
Speed ??6000 rpm
Tool travel radius 112-250 mm
Max. tool diameter behind stop plane 203 mm
Max. groove depth 35 mm
Axis adjustment range 80 mm

3rd spindle, left
Shared motor with 2nd spindle
Diameter 40 mm
Speed ??6000 rpm
Tool cutting radius 112-200 mm
Max. groove depth 35 mm
Axis adjustment range 80 mm
Pressure shoe in front of left spindle, including lateral roller pressure, spring-loaded

4th spindle, right 7.5 kW
Diameter 40 mm
Speed ??6000 rpm
Tool cutting radius 112-250 mm
Max. tool diameter behind stop plane 203 mm
Max. groove depth 35 mm
Axis adjustment range 80 mm

5th spindle, top 11.0 kW
Diameter 40 mm
Speed ??6000 rpm
Tool cutting radius 112-200 mm
Max. throat depth 35 mm
Axis adjustment range 45 mm
Split pressure shoe in front of the upper spindle, adjustable to the tool travel circle and pivoting away from the tool, spring-loaded.

6. Lower spindle 7.5 kW
Diameter 40 mm
Speed ??6000 rpm
Tool travel circle 112-250 mm
Max. throat depth 15 mm
Axis adjustment range 45 mm

Spindles in general:
All throat spindles with high concentricity.
Lubrication points for the axial spindle movement.
Spindle length of vertical spindles 170 mm

Feed system :
Motor with mechanical brake, 3 kW
Mechanical feed continuously adjustable 6 - 36 m/min.
Feed roller in front of the first lower tool pneumatically controlled up-down,
Durofer pointed tooth rollers (Weinig patent) with depth gauge and self-cleaning
Adjustment range of the feed rollers relative to the left spindle, axial: 35 mm
Extension of the oscillating axis relative to the left spindles to 150 mm

Machine electrical system:
Operating voltage: 380-400-415 volts, 50 Hz.

Machine stands, tables, and stops:
Surface table 2.5 m long (including jointing ruler)
Aluminum extension 0.5 m for surface table, including extension of the jointing ruler
Manual Waxilit pump for resin removal from the table
One driven rubber roller (spring-mounted in the outfeed table)

Pressure elements and Guides
Pneumatic pressure rollers from above
Pneumatic pressure rollers pivot away from above, opposite the right-hand spindles for easy tool changes

Machine Operation :
Pressure shoe in front of the upper spindle with mechanical digital display.
Discharge after the upper spindle with mechanical digital display.

ATS/E system, automatic 2-axis positioning for spindles 3 and 4
Min. working height 12 mm
Electric height adjustment of the upper spindles and the feed
Central position of lubrication points on the front of the machine

Safety and Soundproofing:
Full safety enclosure
Easily foldable safety hood with window.
Covers the entire work area (feed and spindles) and protects against mechanical hazards.
When the safety hood is raised, the spindles and feed are automatically shut off.
An interior light in the safety hood.
Option: EM 11 feed magazine, built in 2001
Option: existing tools
