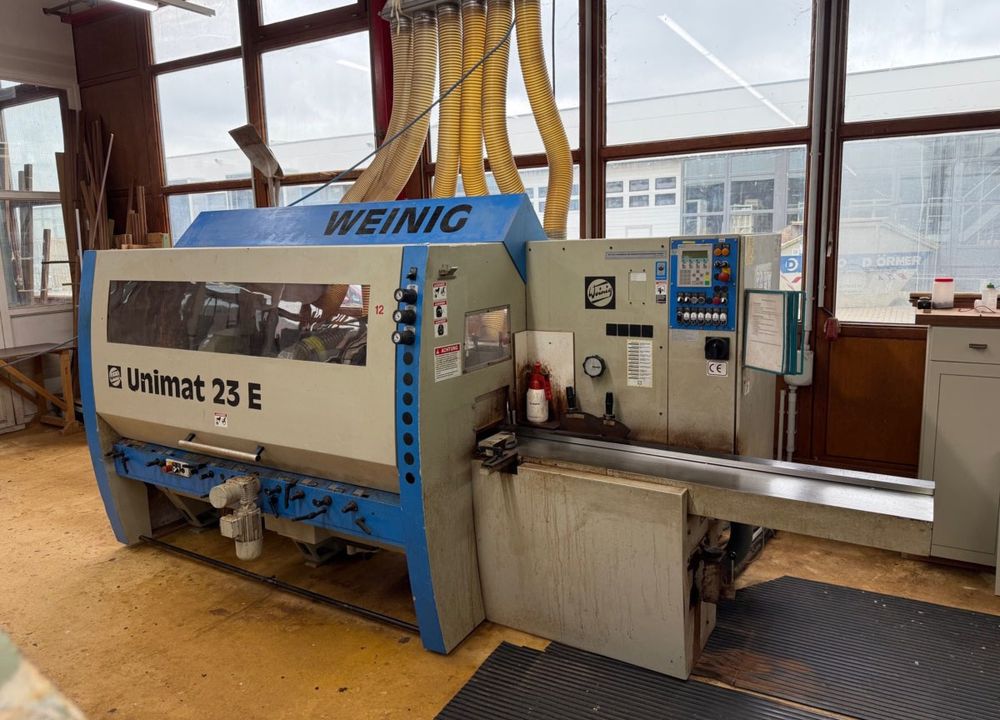

Weinig Unimat 23 E

Planer and moulder
6 spindles (with 2 rigth spindles, reinforced motors, 8,000 rpm, ATS control
Machine will be cleaned and functionally checked before delivery

Working width 20 - 230 mm
Working height 8 - 120 mm

1st spindle (bottom) 5.5 kW (motor replaced)
Diameter 40 mm
Speed ??6,000 rpm
Tool swing diameter 125 - 180 mm
Rebating unit including tool
Hardened table insert in front of 1st (bottom) spindle

2nd spindle (right) 12.1 kW (motor replaced)
Shared motor with left vertical spindle
Diameter 40 mm
Speed ??8,000 rpm
Tool swing diameter 112-250 mm
Max. Tool diameter behind stop plane 203 mm
Max. groove depth 35 mm
Axially travel 80 mm

3. Spindle, left
Shared motor with 2nd spindle
Diameter 40 mm
Speed ??8,000 RPM
Tool swing diameter 112-200 mm
Max. groove depth 35 mm
Axially travel 80 mm
Pressure shoe in front of left spindle, including
spring-loaded lateral roller pressure

4. Spindle, right 8.3 kW (motor replaced)
Diameter 40 mm
Speed ??8,000 RPM
Tool swing diameter 112-250 mm
Max. tool diameter behind stop plane 203 mm
Max. groove depth 35 mm
Axially travel 80 mm

5. Spindle, top 7.5 kW
Diameter 40 mm
Speed ??8,000 rpm
Tool travel 112-200 mm
Max. groove depth 35 mm
Axially travel 45 mm

Split pressure shoe in front of upper spindle, adjustable to the tool travel and pivoting away from the tool, spring-loaded.

6. Lower spindle 4.0 kW
Diameter 40 mm
Speed ??6,000 rpm
Tool travel 112-250 mm
Max. groove depth 15 mm
Axially travel 45 mm

Spindles in general
All groove spindles with high concentricity.
Lubrication points for the axial spindle movement.

Feed system
Motor with mechanical brake, 4 kW
Mechanical feed infinitely variable 5-24 m/min.

Feed roller in front of the first lower tool
pneumatically controlled up/down,
Durofer pointed tooth rollers (Weinig patent) with depth limiter and self-cleaning
Adjustment travel of the feed rollers relative to the left spindle, axial 35 mm

Machine electrical system
Operating voltage 440 V (voltage range 380 - 420 V), 50 Hz.
Machine frame, tables and stops
Infeed table 2.0 m long (incl. jointing guide)
Manual Waxilit pump for table de-resin removal
One driven rubber roller (spring-loaded in the outfeed table)
Two driven rollers in the machine table, hardened

Machine operation:
Pressure shoe in front of the upper spindle with mechanical digital display.
Extraction after the upper spindle with mechanical digital display.
ATS/System, automatic 2-axis positioning for spindles 3 and 5
Minimum working height 12 mm
Electric height adjustment of the upper spindles and the feed
Central lubrication points on the front of the machine
Electronic digital displays on spindles 3 and 5 (axial), spindle 6 (radial) and spindle 4 (axial and radial)

Safety and noise reduction
Full safety enclosure
Easily hinged safety hood with window. Covers the entire working area feed and spindles) and protects against mechanical hazards.
When the safety hood is raised, the spindles and feed are automatically switched off.
Interior light in the safety hood.
Includes 5 planer heads
