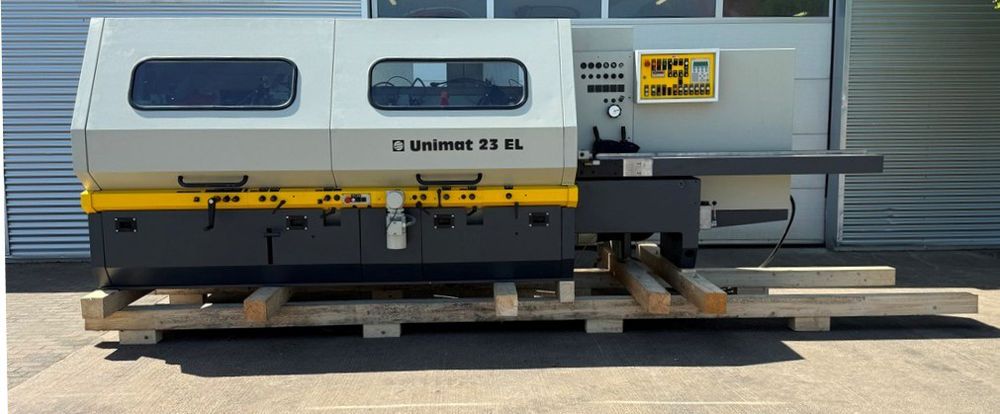

Weinig Unimat 23 EL

Four-sided planer
Number of spindles: 6
Working width 230 mm
Planing height 160 mm
ATS control
Powered Table Rollers 1
Feed 24 m/min
Feed motor 4 kW
Dressing table length 2,500 mm

Planing and profiling machine for four-sided planing and profiling of timber with ATS system,
reinforced Kaschwig soundproof booth and universal spindle.

Spindle 1: Bottom / 40 mm / 7.5 kW / 8,000 rpm
Spindle 2: Right / 40 mm / 7.5 kW / 8,000 rpm
Spindle 3: Left / 40 mm / 7.5 kW / 8,000 rpm
Spindle 4: Top / 40 mm / 7.5 kW / 8,000 rpm
Spindle 5: Bottom / 40 mm / 7.5 kW / 8,000 rpm
Spindle 6: Uni / 40 mm / 7.5 kW / 6,000 rpm
