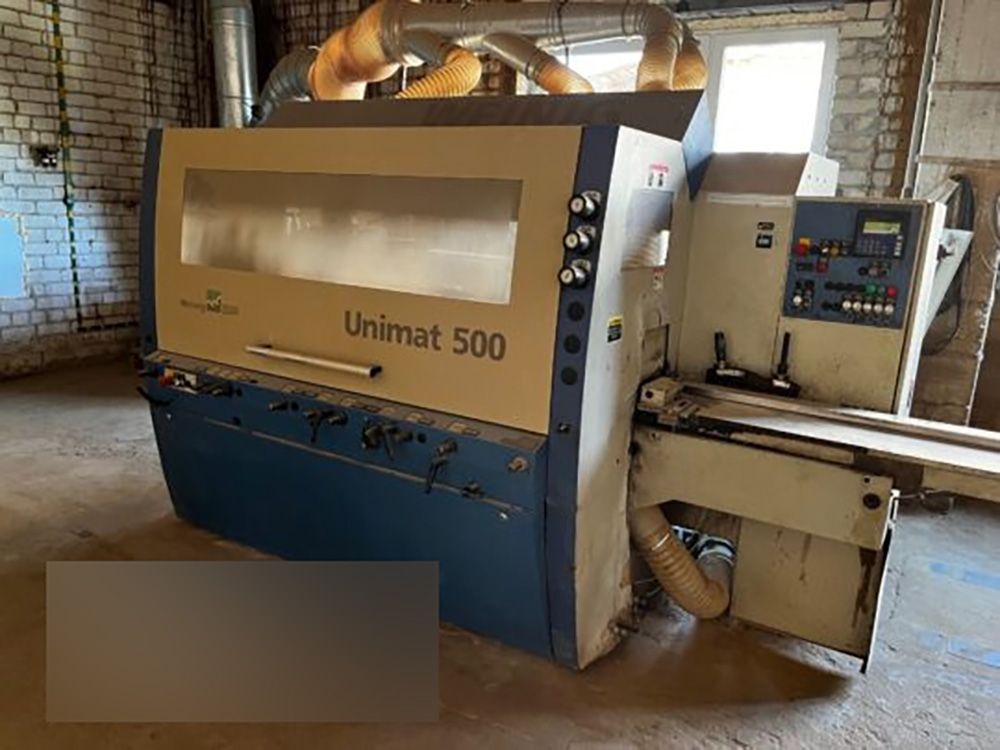

Weinig Unimat 500

Four side moulding machine
Package for planing short workpieces.
The working width of the workpieces is 20 – 230 mm, the height is 8 – 120 mm.
Positions of moulding shafts:
I. Bottom horizontal, 4 kW
II. Right side vertical, 7,5 kW
III. Right side vertical, capacity common with second shaft
IV. Top horizontal, 4 kW
V. Top horizontal, 5,5 kW
VI. Bottom horizontal, 4 kW.
Shaft adjustment levers with digital position display. Shafts‘ postions are adjustable with 0,1 mm precision.
Rotations of shafts n – 6000 rev/min. Diameter of shafts’ d – 40 mm.
Feeding speed 5 – 30 m/min., adjustable via frequency converter, motor 3 kW.
Feeding with fool cardan gear.
Pneumatic pushing of feeding rollers. Pushing force adjustable via pneumatic, separately for steel and rubber rollers.
First infeed table 2000 mm long.Groove guide table.
Compressed air required 6 – 8 bar.
Consumption of compressed air about 90 l/min.

Minimal air extraction capacity:
Vertical shafts – 1000-1200 m3/h, minimal air speed 25 m/s
Horizontal shafts – 1350-1650 m3/h, minimal air speed 25 m/s
Total extraction air capacity – 7100-8000 m3/h.
With tools.
CE safety regulations.
