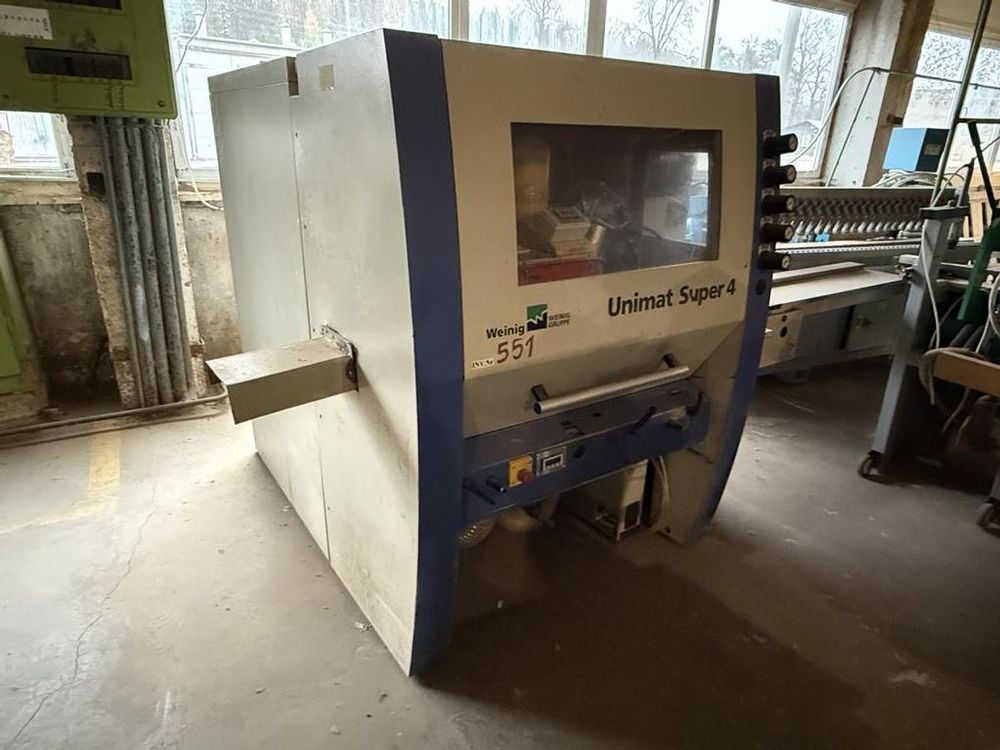

Weinig Unimat Super 4

- Working width: 25 - 150mm
- Working height: 15 - 50mm

- Spindle arrangement:
Spindle 1 bottom:
Planing and pre-milling of the guide groove
125x40x40mm, Z=2
125x120x40mm, Z=2

Spindle 2 top:
Combination tool, consisting of special-
planing head with guide groove and 2 plan-
cutters. Precise thickness planing and planing
of the veneering surfaces on the right and left.
Plan cutter right: 240x17x40mm, Z=8
Special planing head: 125x240x40mm, Z=4
Plan cutter left: 240x80x122mm, Z=8
Tool travel circles 125 and 250mm

Spindle 3 bottom:
Removal of the guide groove
and ready-made planing.
125x170x40mm, Z=4

- Spindle 1: 11 kW
- Spindle 2: 18.5 kW
- Spindle 3: 5.5 kW

- Feed: 2.2 kW
- Feed: 5-20 m/min.
- Spindle speeds: 1 and 3: 6,000 U/min
- Spindle speed 2: 7,000 U/min
- Transport rollers D (hardened): 140 mm
- Length of the infeed table: 2,000 mm
- Machine tables hardened
- Guide groove in the machine table
- Extraction nozzle 2x140mm, 1x160mm
- Volume flow: approx. 5,500 m³/h
- Volt/Hz: 400/50
