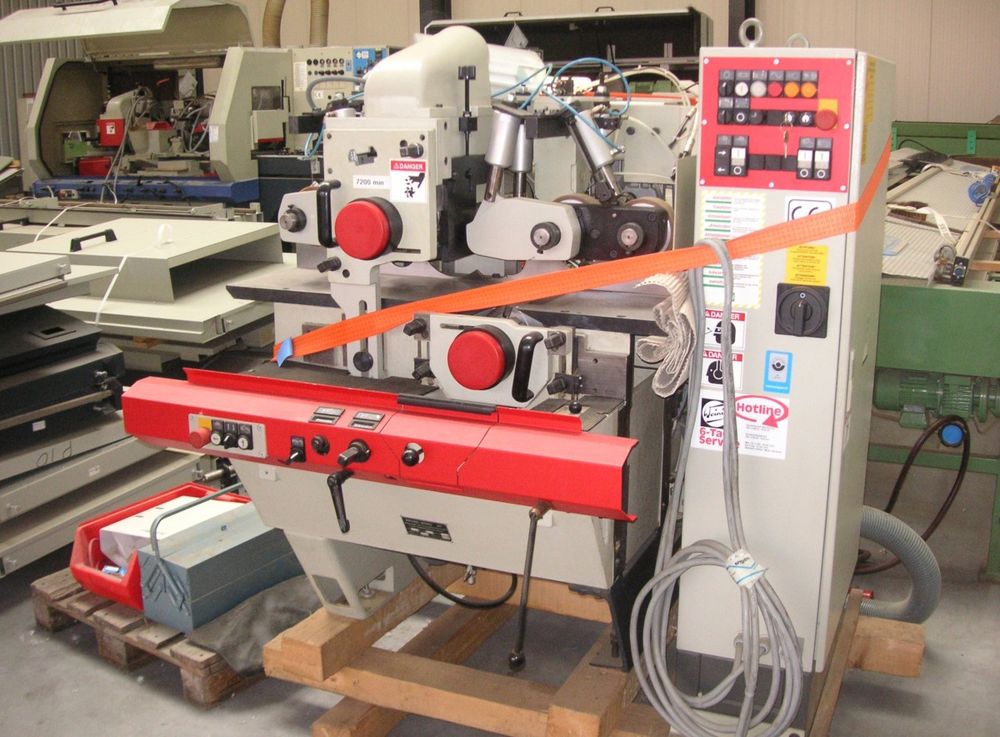

Weinig Uniplan 23

Hydro Planer
Machine was factory overhauled by Weinig in 2024.

Description:
For two-sided horizontal woodworking with two working spindles.
Spindle arrangement: horizontal, bottom and top.

The two horizontal spindles are equipped with hydraulically tensioned counterbearings
without axial adjustment. Built-in straight jointers on both spindles with automatic stone feed, remotely controlled with the hood closed.
Machine with continuous, chainless feed, equipped with rubber rollers.
Electric up/down adjustment of the spindles according to a mechanical digital display (SIKO).
On/off switch for limiting the up/down adjustment.
Feed roller pressure pneumatic.
Stops and table tops are not adjustable. Machine with steel table tops.
Machine with full enclosure and integrated sound and dust protection including interior lighting.
Electrical design according to DIN VDE 0113, electrical equipment of industrial machines EN 60204, IEC - 204 - 1.
Other electrical regulations are not taken into account.
Machine includes operating tools, but does not include machining tools.

The Weinig Uniplan spindles operate at a speed of 7200 revolutions per minute.
Before using existing tools, please check that they are suitable for the speed.
Please also consider this when ordering new tools.

Technical specifications:
Max. working width: 230 mm
Min. working height: 15 mm, max.: 120 mm
Feed: 3 kW (4 HP)
Horizontal spindles each: 7.5 kW (7.5 HP)
Infinitely variable feed speed: 6 - 36 m/min.
Spindle speed: 7,200 rpm
Spindle diameter: 50 mm
Tool clamping length: 240 mm
Maximum tool radius: 163 mm
Fixed clamping clearance at bottom: 0.5 mm
