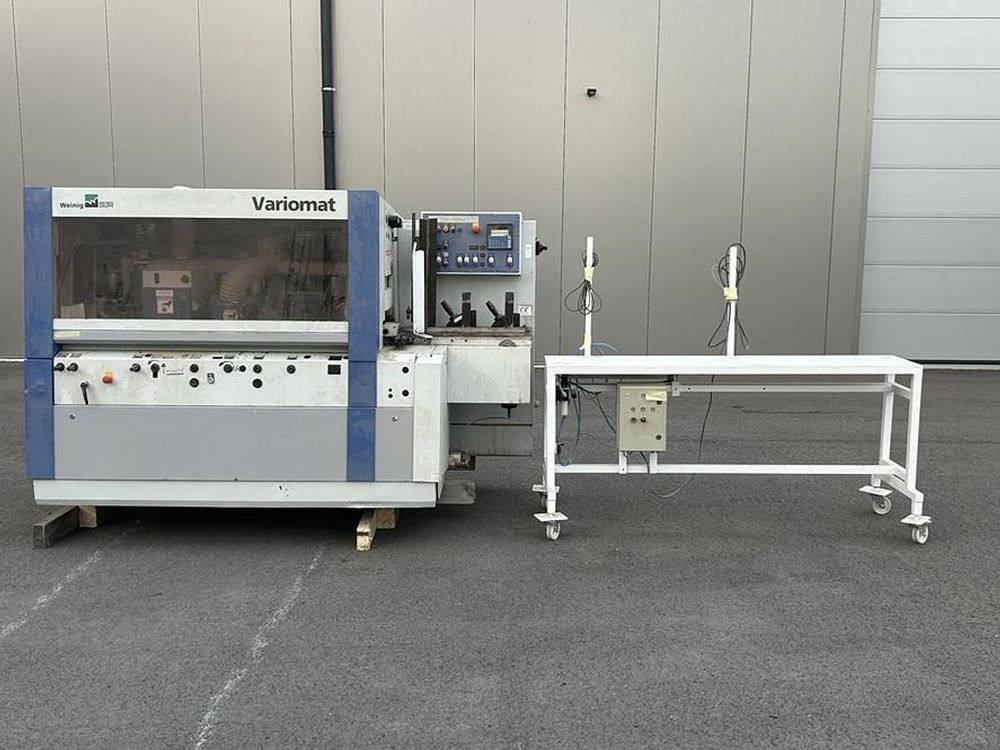

Weinig VARIOMAT

Mill:
5 stations / 4 tool holders for sharpening
Pin diameter: 40 mm
Digital positioning
Variable speed: 5 to 15 m/min
Liftable inlet roller
Pneumatic pressers
Electric display meter
Table lubrication via pedal
99 possible programs
Capacity: minimum width 20 mm / maximum width 230 mm - minimum height 8 mm / maximum height 120 mm
Hood opening safety feature
CE standards => OK
Tool holders: 125 mm diameter

Engine power:
Planer infeed = 5.5 KW
Spindle tops left and right = 11 kW
Upper planer = 7.5 kW
Lower planer = 5.5 kW
Total machine power = 32 kW
Suction diameter: 120 mm
Voltage: 380 V
Dimensions: 250 x 150 x H175 cm +/- 2.200 kg

Automatic charger:
Minimum piece length: 160 cm
Maximum piece length: +/- 400 cm
Loading height: 60 cm
Dimensions: 195 x 45 x H165 cm
