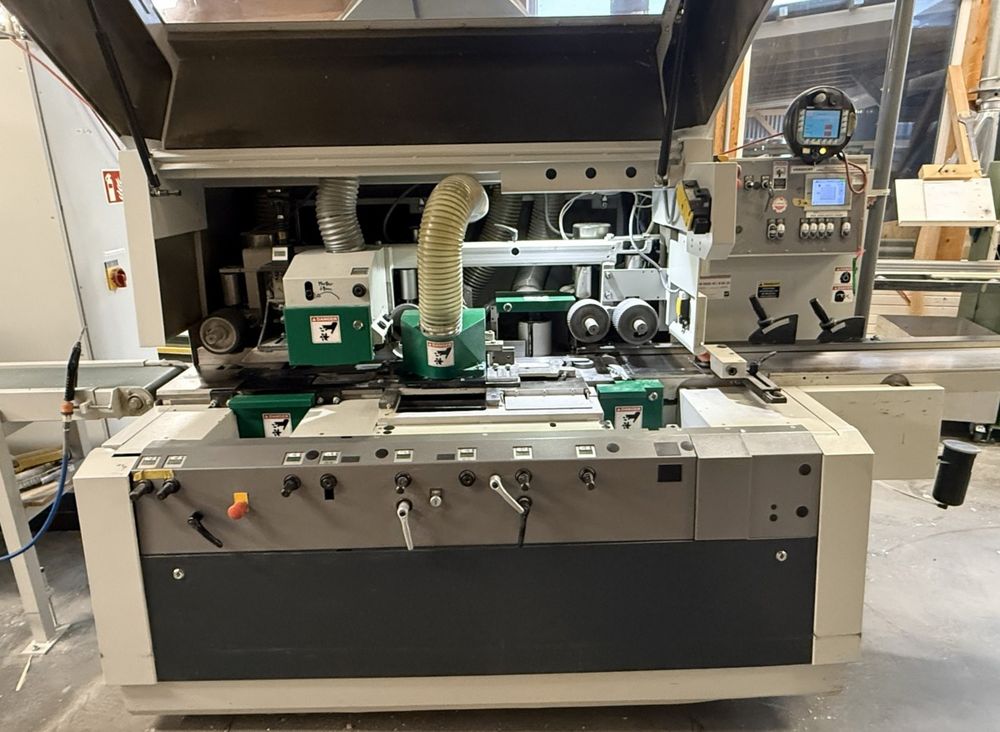

Weinig Variomat

Planing and Moulding Machine
Brief Summary:
- 5 spindles
- Powerful motors
- Cycle-controlled jointing
- MemoryPlus control system
- Option: Stähle-Hess Saturn single-piece sanding machine

Technical Manufacturer's Description:
Working width: 20 – 230 mm
Working height: 8 – 120 mm

1st Spindle: Horizontal Bottom
Motor with brake: 7.5 kW
Diameter: 40 mm
Speed: 6000 rpm
Tool cutting circle: 125 – 145 mm
Axial adjustment range: 5 mm
Rebating device incl. rebating cutters

2nd Spindle: Vertical Right
Motor with brake: 11.0 kW
Diameter: 40 mm
Speed: 6000 rpm
Tool cutting circle: 93 – 232 mm
Minimum tool diameter at fence level: 93 mm
Maximum tool diameter behind fence level: 180 mm
Maximum moulding depth: 45 mm
Axial adjustment range: 30 mm
Insert segment incl. additional fence lip: 125 mm
Insert segment incl. additional fence lip: 150 mm

3rd Spindle: Vertical Left
Shared motor with 1st right spindle
Diameter: 40 mm
Shared speed with right spindle
Tool cutting circle: 93 – 232 mm
Maximum moulding depth: 45 mm
Minimum moulding depth at 200 mm tool cutting circle: 20 mm
Axial adjustment range below table: 30 mm
Insert segment: 125 mm
Insert segment: 150 mm

4th Spindle: Horizontal Top
Motor with brake: 11.0 kW
Diameter: 40 mm
Speed: 6000 rpm
Tool cutting circle: 125–200 mm
Maximum rebate depth: 30 mm
Minimum rebate depth (for tool cutting circle up to 200 mm): 20 mm
Axial adjustment travel: 30 mm

5. Horizontal Bottom Spindle
Motor with brake: 11.0 kW
Diameter: 40 mm
Speed: 6000 rpm
Tool cutting circle: 125–200 mm
Maximum rebate depth: 15 mm
Axial adjustment travel: 10 mm
Table plates with wooden inserts for the bottom spindle
Additional outfeed plate above the bottom spindle for wooden inserts

Feed System
Frequency-controlled feed: 1.1 kW, infinitely variable (2–12 m/min)
Double-pendulum roller opposite the left spindle
Axial adjustment travel of feed rollers opposite the left spindle: 35 mm
Durofer-coated spiked feed rollers
Pneumatic pressure for feed rollers (incl. water separator)

Cycle-controlled jointing to support manual jointing.
The infeed roller is released once the second feed roller has engaged
the workpiece. After the workpiece clears the second feed roller,
the infeed roller returns to its starting position for the next workpiece.

Additional Features:
MemorPLUS Control System
Width and height adjustment via controls (Spindles 3 and 4: radial CNC-axis controlled)
