Weinig

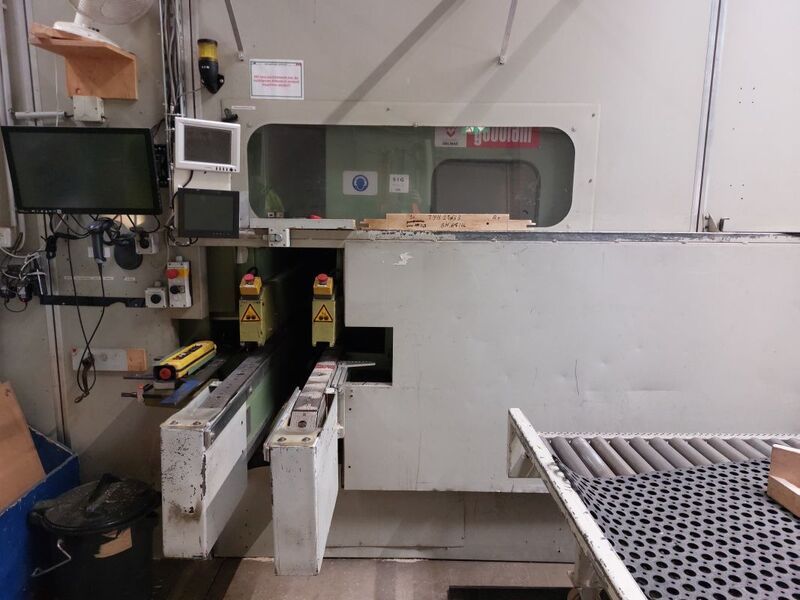

Profiling system, consisting of DET Gabianni + Weinig planing machine

DET
Make: Gabianni
Type: T-Module 80/1600
Year of construction: 1997

Automatic planer
Make: Weinig
Type: 22 BL
Year of construction: 1995

Technical data of the DET:
- 6 processing motors per side
- 2 fixed scoring units 3.2 hp / 3000 + 4500 rpm
- 2 hogging units: 12.5 hp / 3000 + 4500 rpm
- 2 hogging units: 12.5 hp / 3000 + 4500 rpm
- 2 slitting units: 12.5 hp / 3000 + 4500 rpm
- 2 free spaces
- 1 feed motor: 4 hp / 1400 rpm

Angle transfer between DET and planer
- Length: 290 - 1600 mm (1800 mm)
- Width: 18 - 150 mm
- Thickness: 5.5 - 50 mm
- Density: 600 kg/m³
- Max. output: 150 workpieces/min
- Belt conveyor after the double-end profiler
- Toothed belt conveyor with brushes as counterholder
- Cam conveyor for separation
- Toothed belt conveyor as buffer section
- Longitudinal push-off
- Roller conveyor in front of the planer
- Control system: Vipa compatible with Simens S7 300
- Safety technology
Safety gate switch: 3
Safety light barriers: 1

Technical data of the planer :
Working width and working height
- Working width: 20 - 230 mm (with tool diameter 125 mm)
- Working height: 9 - 140 mm (for tool diameter 125 mm)

Infeed table :
- Length: 2000 mm
- Dressing table adjustment range: 10 mm
- Adjustment range of jointing ruler: 10 mm

Levelling table :
- Length: 1200 mm
- Adjustment range table: 10 mm
- Adjustment range ruler: 10 mm

Dressing spindle :
- Motor power: 5.5 - 15 kW

Joining spindle :
- Motor power: 5.5 - 11 kW

Left spindle :
- Motor power: 5.5 - 11 kW

2. right spindle :
- Motor power: 5.5 - 11 kW

Upper spindle :
- Motor power: 5.5 - 22 kW

Lower spindle :
- Motor power: 5.5 - 22 kW

Universal spindle :
- Motor power: 5.5 - 11 kW

Feed rate:
- Cardan feed infinitely variable: approx. 6-36 m/min
- Motor power: 4 - 8.6 kW
