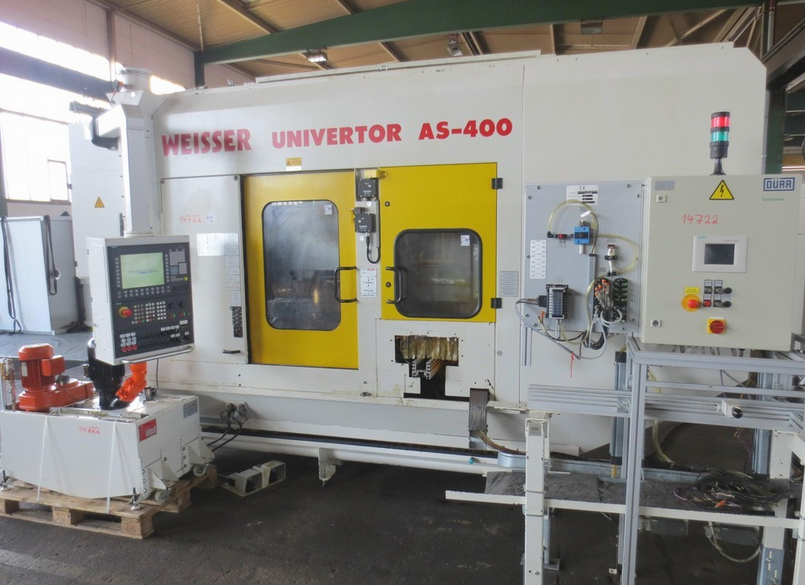

Weisser CNC control Siemens 840D 5000 rpm Univertor AS 400 2 Axis

X-axis travel 280 mm
Z-axis travel 1150 mm
Rapid traverse X-axis 30 m/min
Rapid traverse Z-axis 60 m/min
Feed range X-axis 0.1–30 m/min
Feed range Z-axis 0.1–60000 mm/min
CNC control Siemens 840D
Swing diameter max. 300 mm
Turning diameter 250 mm
Turning length 400 mm
Workpiece length max. 400 mm
Spindle bearing diameter 90 mm
Spindle head DIN 55026 Size A6
Turning speeds 1–5000 rpm
Tool turret 12 positions C4 Capto
Total power requirement 45 kW
Machine weight approx. 11 t
Machine dimensions approx. 7.0 x 5.0 x 3.2 m
Screw conveyor with chip breaker and return pumping station
NC-steady SMW-SLU-1-OLD Ø10–70 mm
12-position tool turret Sauter 0.5.460.220
NC tailstock
Artis monitoring
Pickup loading with conveyor
Without coolant system (connected to central supply)
