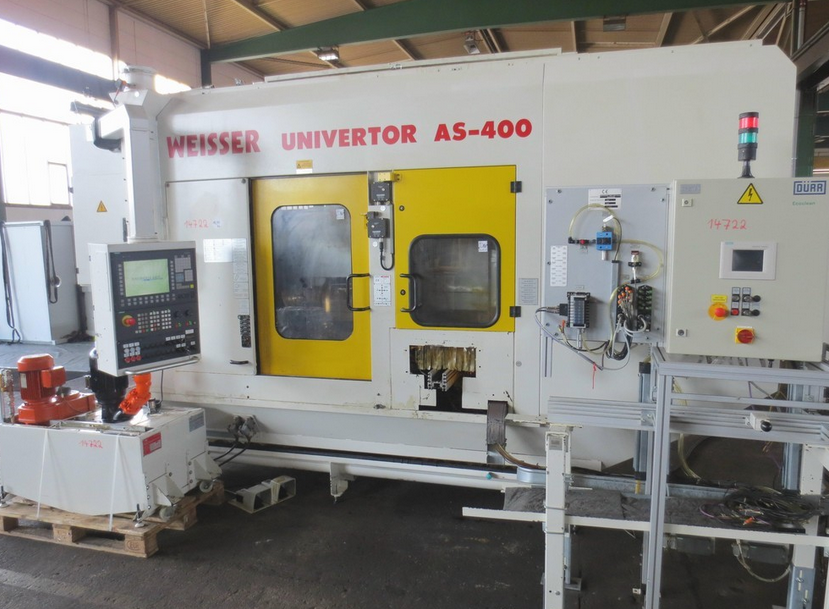

Weisser Siemens 840 D 5000 rpm Univertor AS 400 2 Axis

X-axis travel: 280 mm
Z-axis travel: 1150 mm
Control: Siemens 840 D
Turning diameter: 250 mm
Swing diameter: max. 300 mm
Turning length: 400 mm
Max. workpiece length: 400 mm
Spindle bearing diameter: 90 mm
Spindle nose: DIN 55026 A6
Spindle speed: 1 – 5000 rpm
X-axis feed: 0.1 – 30 m/min
X-axis rapid traverse: 30 m/min
Z-axis feed: 0.1 – 60000 mm/min
Z-axis rapid traverse: 60 m/min
12-position tool turret
C4 Capto
Total power: 45 kW
Weight: 11 t
Machine dimensions: 7.0 x 5.0 x 3.2 m
Screw conveyor with chip breaker
Return pumping station
NC steady rest SMW-SLU-1-OLD Ø10–70 mm
12-fold tool turret SAUTER 0.5.460.220
NC tailstock
Artis monitoring
Pickup loading
Conveyor
Without coolant system
Connected for central coolant supply
Machine inspectable under power
