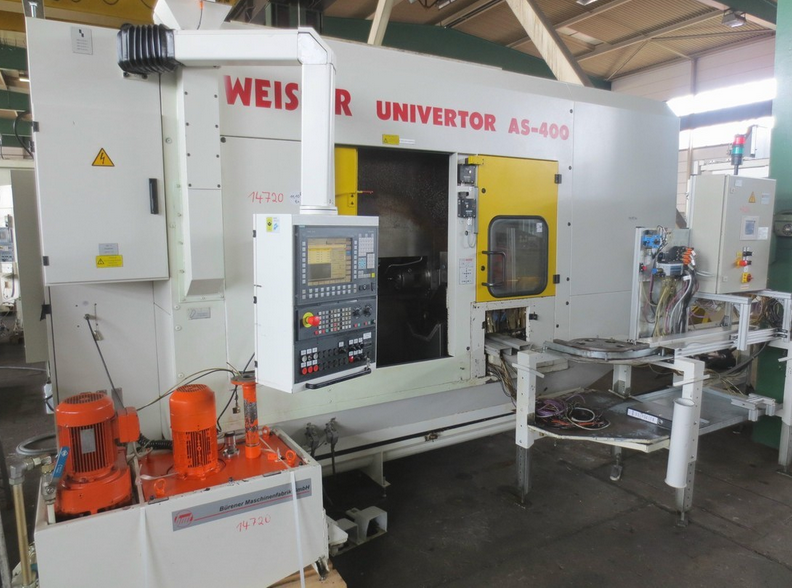

Weisser Siemens 840D 5,000 rpm Univertor AS 400 2 Axis

X-Axis Travel: 280 mm
Z-Axis Travel: 1150 mm
Feed X-Axis: 0.1–30,000 mm/min
Rapid Traverse X-Axis: 30 m/min
Feed Z-Axis: 0.1–60,000 mm/min
Rapid Traverse Z-Axis: 60 m/min

Control System: Siemens 840D
Coolant System: Not included (central supply used)

Swing Diameter: 300 mm
Turning Diameter: 250 mm
Turning Length: 400 mm

Spindle Speed: 1–5,000 rpm
Spindle Bearing Diameter: 90 mm
Spindle Head: DIN 55026 Size A6

Tool System: Capto C4
Tool Turret: 12-position SAUTER turret
NC Tailstock: Included
Steady Rest: SMW-SLU-1-OLD Ø10–70 mm
Monitoring System: Artis

Chip Conveyor: Screw conveyor with chip breaker and return pumping station
Loading System: Pickup loading incl. conveyor

Total Power Requirement: 45 kW
Machine Weight: 11 t
Machine Dimensions: 7.0 x 5.0 x 3.2 m
