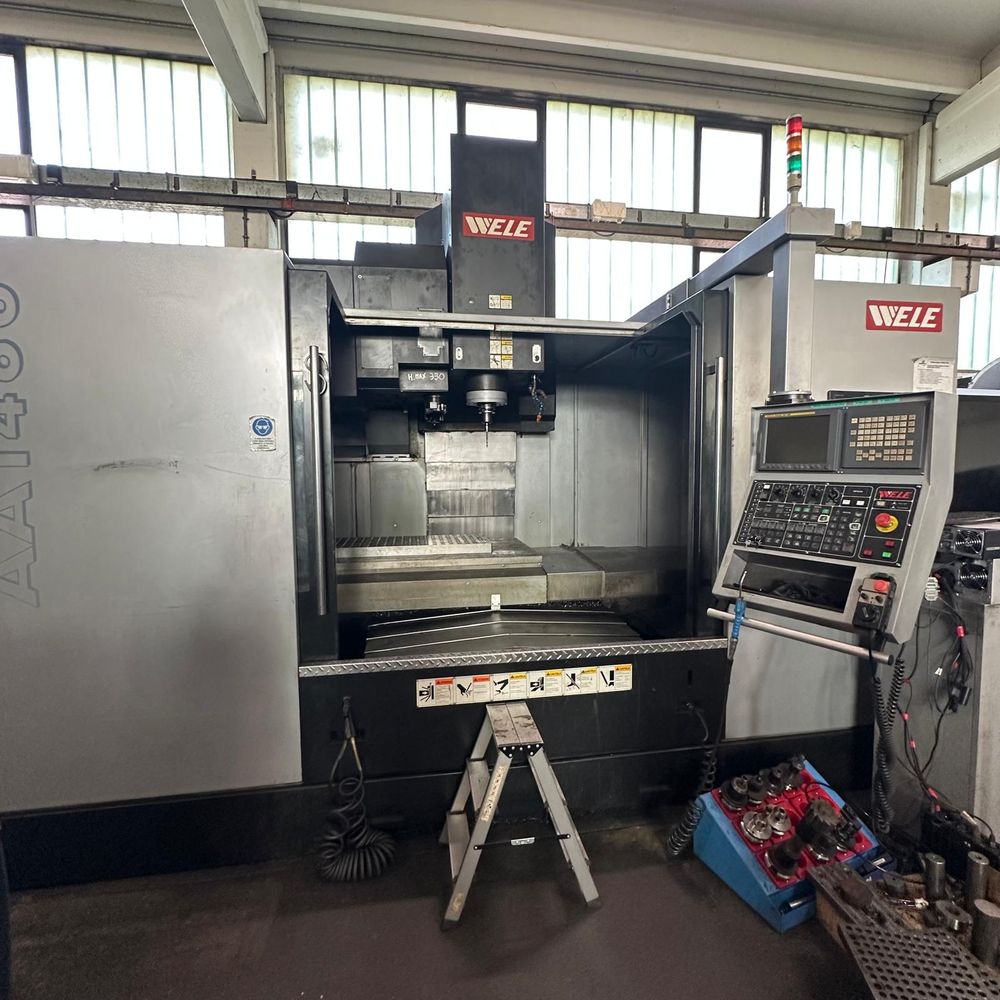

Wele AA1480#50 3 Axis
Ref :
2735083-3-MT
Condition :
Used
Manufacturer :
Wele
Model :
AA1480#50
Nb Of Axis :
3 Axis
Year(s) :
2011
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 1400 mm
Y-axis travel: 800 mm
Z-axis travel: 700 mm
Rapid traverse X-axis: 24000 mm/min
Rapid traverse Y-axis: 24000 mm/min
Rapid traverse Z-axis: 20000 mm/min
Control: FANUC 18iM
Spindle nose: BT50 ISO
Spindle speed: 6000 rpm
Spindle motor power: 18–22 kW
Max torque (continuous/30 min): 626/740 Nm
Tool stations: 30
Table dimensions: 1550 × 800 mm
Max table load: 1800 kg
Distance spindle nose to table: 200–900 mm
Distance table to floor: 980 mm
Positioning accuracy: 0.015 mm
Repeatability: 0.008 mm
