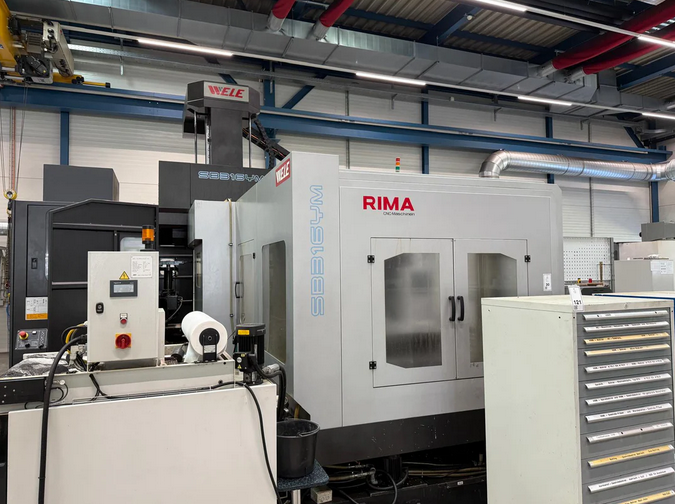

Wele SB-316YM 3 Axis

X-axis travel 3060 mm
Y-axis travel 2300 mm
Z-axis travel 800 mm
Table length 3000 mm
Table width 1500 mm
Table load max. 10000 kg
Distance between columns 1700 mm
Spindle nose BT 50
Distance from spindle to table 1200 mm
Spindle speeds stepless up to 10000 t/min
Spindle motor 22 / 30 kW
Voltage 50 Hz 3x 400 V
Total power required 60 kVA
Number of axes total 3
Tool magazine 90 positions
Tool changer with double gripper
Closed roof section
Tool blow-off device
Machine weight approx. 27000 kg
Overall dimensions Length 8300 mm
Overall dimensions Width 4650 mm
Overall dimensions Height 4350 mm
