Welex HS 3.0 40D SV 3”

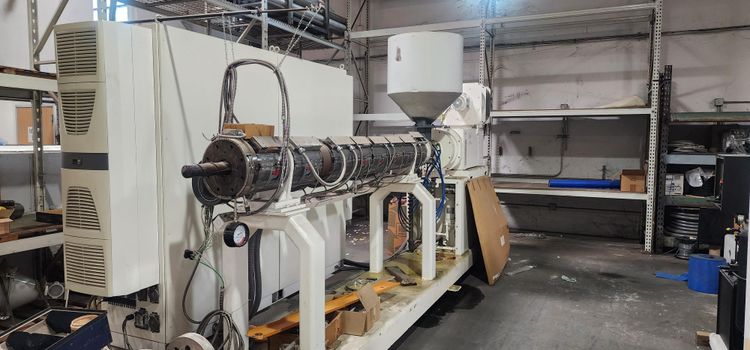

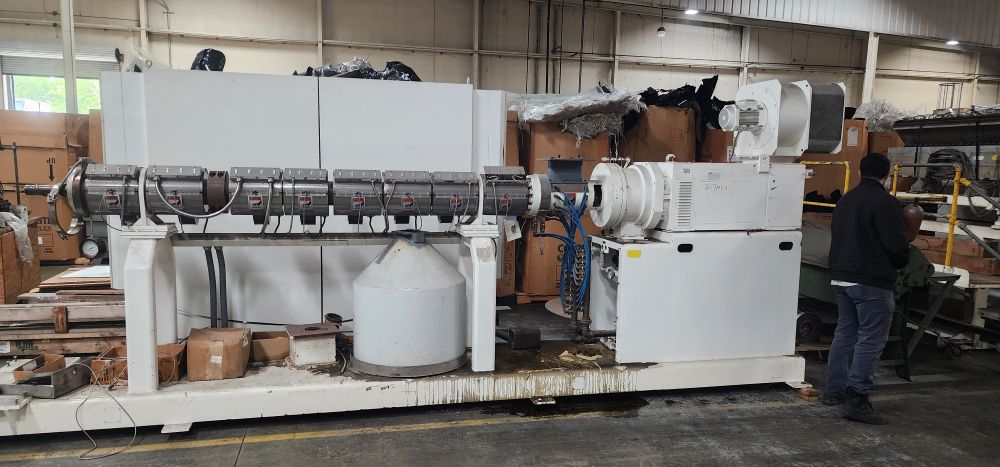

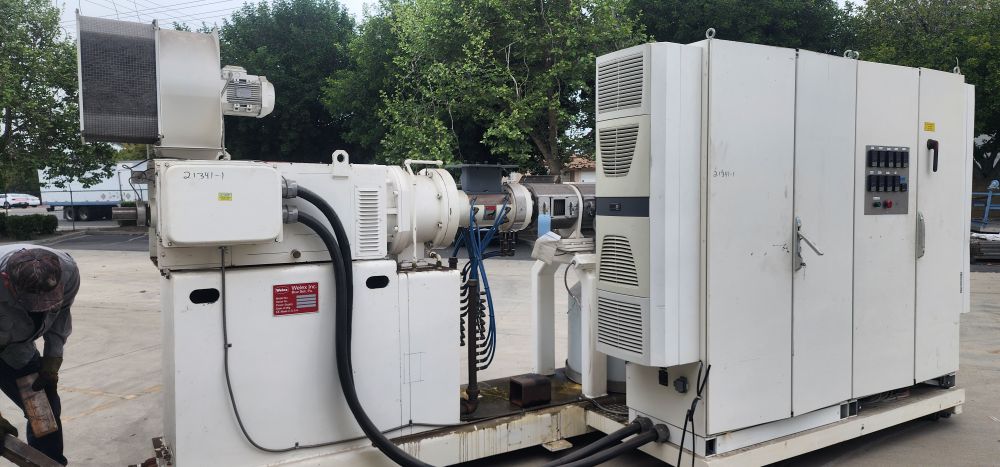

Welex HS 3.0 40D SV 3" Single Screw Extruder – 412kW, Vented/Plugged, ABB VFD, Touchscreen

We are Mega Machinery. We are currently liquidating a selection of equipment from our warehouse located in Los Angeles, CA. All machines are available for immediate sale, and shipping can be arranged upon request.

If you're interested or have any questions regarding pricing, availability, or logistics, please feel free to reach out.

Detailed Specifications:

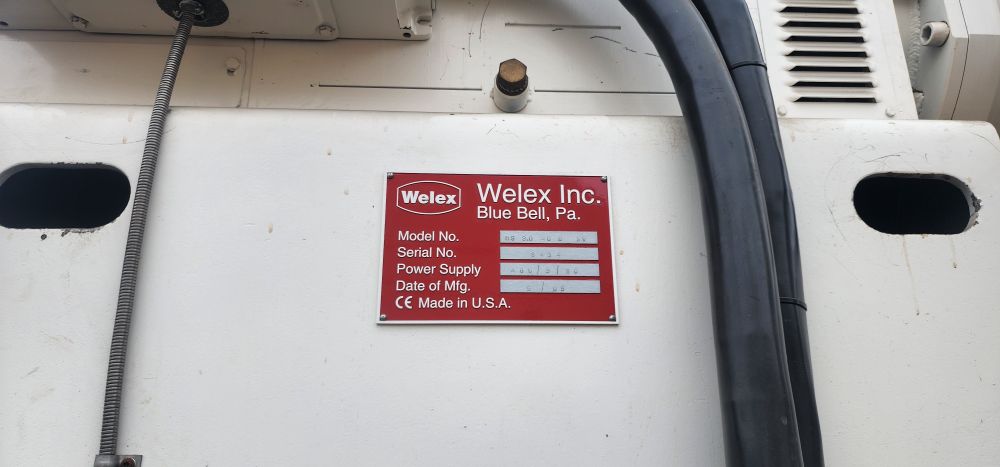

Manufacturer: WELEX

Model: HS 3.0 40D SV

Serial Number: 8454

Type: High-Speed Single Screw Extruder

Screw Diameter: 3″

L/D Ratio: 40:1

Configuration: Vented / Plugged

Barrel Center Line Height: 57"

Barrel Heating & Cooling: Electric Heated, Air Cooled

Feed Throat: 3" x 9" Oversized, Water Cooled

Year of Manufacture: 2009

Drive System & Electrical:

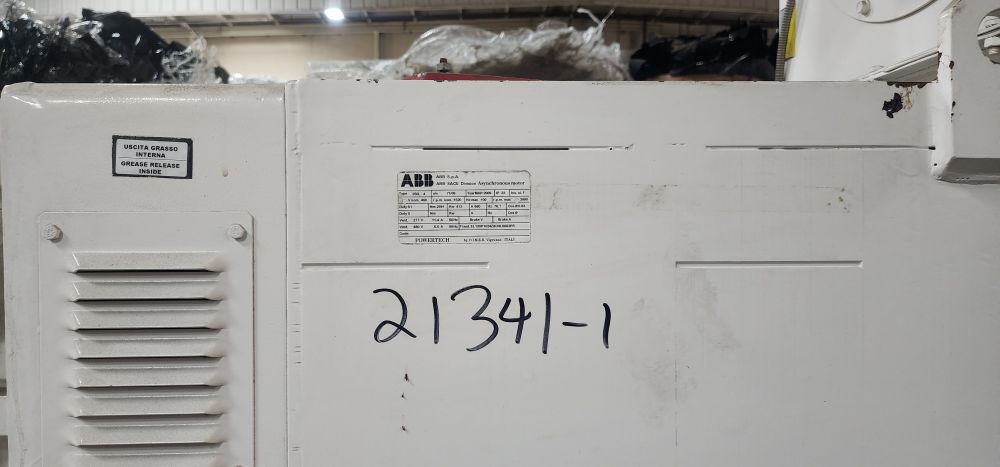

Motor: 412 kW ABB AC Motor (Approx. 550 HP)

Drive: ABB Variable Frequency Drive (VFD), 680 Amp

Electrical Input: 480V / 3 Phase / 60 Hz

Max Screw Speed: 1520 RPM

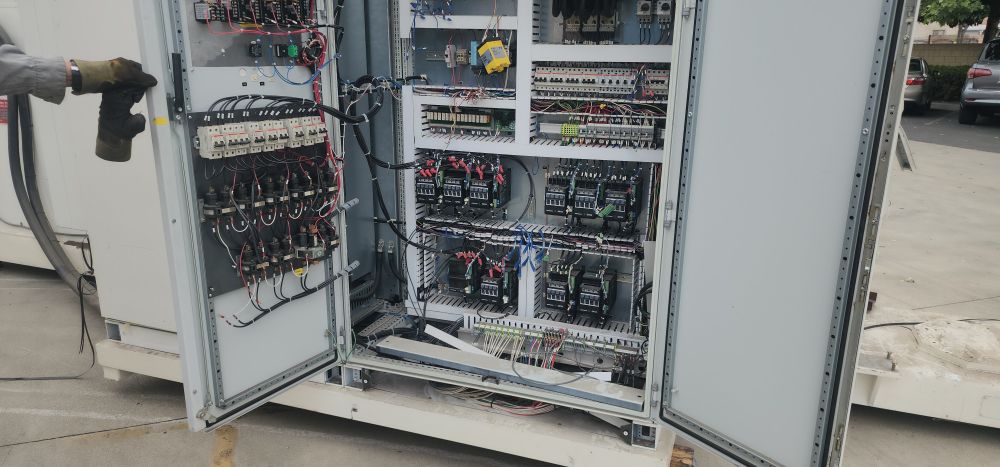

Control: Touchscreen Operator Interface

Includes:
(4) Spare Screws (2 are two-stage)

(1) Screw Installed in Machine

Condition: Excellent
Available for Inspection: Yes – by appointment
