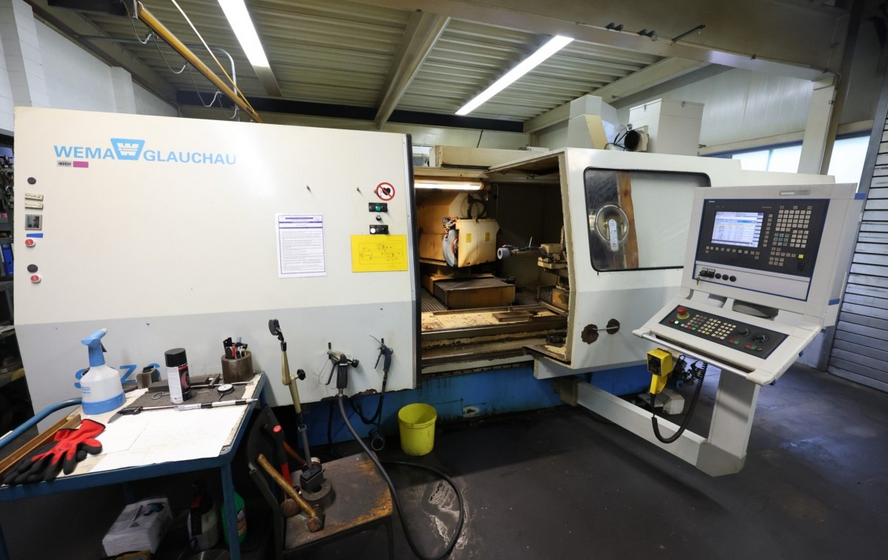

Wema GLAUCHAU SBZ 6-F

WEMA GLAUCHAU SBZ 6-F
Year: 2009

Type: Internal and Face Grinding Machine
Control: CNC
CNC type: Siemens 840 D
Maximum internal diameter: 600 mm
Maximum grinding depth: 800 mm
Maximum grinding length: 600 mm
Maximum internal grinding diameter: 600 mm
Maximum cylindrical grinding diameter: 800 mm
Maximum workpiece length: 380 mm
Maximum external grinding length: 600 mm
X1-axis travel: 150 mm
Z1-axis travel: 1100 mm
X2-axis travel: 470 mm
Z2-axis travel: 800 mm
Workpiece spindle drive power: 8.5 kW
Stepless turning speed range: 1–795 rpm

Workpiece spindle unit (U/B1/L adjustment):
U-axis travel: 300 mm
B1-axis swivel angle: -0.5° / +12°
Set-up speed: 10 rpm
Spindle head size: A8 (DIN 55026)
Through-hole: 58.5 mm
Maximum workpiece diameter: 830 mm
Maximum workpiece length (overhung clamping): 800 mm
Maximum workpiece length (between centers): 800 mm
Maximum load capacity at spindle head: 6100 N

Internal grinding device (Z1/X1/B2):
Z1-axis travel: 1100 mm
X1-axis travel: 150 mm
B2-axis swivel angle: 270°
Manual longitudinal adjustment: 780 mm
Internal grinding spindle drive power: 7.5 kW
Grinding block mounting hole diameter: 100 mm / 125 mm
Grinding block mounting length: 220 mm
Maximum sanding diameter: 600 mm
Maximum sanding depth: 800 mm

External and surface sanding device (Z2/X2):
Z2-axis travel: 800 mm
X2-axis travel: 470 mm
B2-axis swivel angle: 270°
External grinding spindle drive power: 7.5 kW
Grinding block mounting hole diameter: 140 mm
Maximum sanding diameter: 800 mm
Maximum sanding length: 600 mm
Maximum grinding wheel dimensions: Ø 450 x 50 x Ø 127 mm
