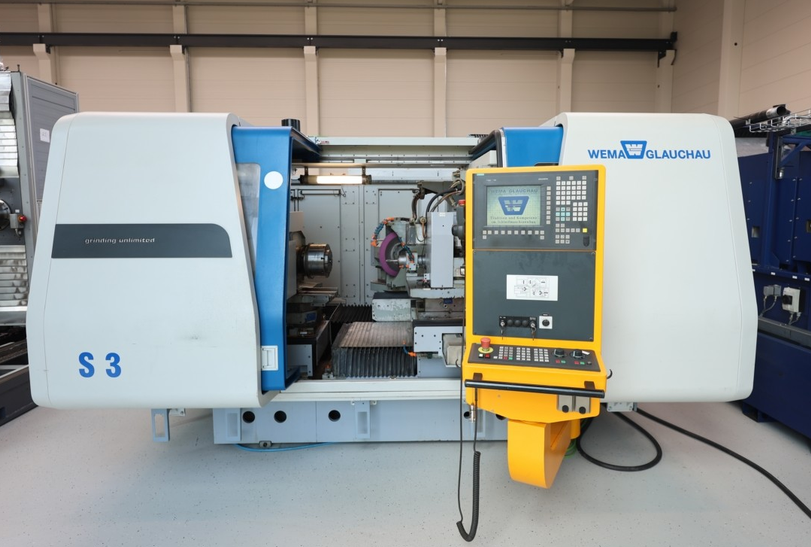

Wema GLAUCHAU SU 3-R

X1-Axis Travel: 200 mm
Z1-Axis Travel: 470 mm
X2-Axis Travel: 325 mm
Z2-Axis Travel: 470 mm
B1-Axis Tilt: -1° / +12°
B1 Longitudinal Adjustment: -20 / +30 mm
B2-Axis Tilt: 1/1000°
Control: CNC
Internal Grinding Diameter: 300 mm
Grinding Depth: 300 mm
Internal Grinding Spindle Power: 3.5 kW
External Grinding Spindle Power: 16.5 kW
Cylindrical Grinding Diameter: 120 mm
Grinding Wheel Size: 400 mm
Workpiece Spindle Unit: Ø500 x 50 x Ø127 mm
Workpiece Spindle Power: 470 kW
Workpiece Spindle Speed: 3.8 rpm
Sanding Belt Length: 400 mm
Spindle Head Load Capacity: 1–895 kg
Centre Height Above Swing Bridge: 200 mm
Total Power Requirement: 200 kW
Machine Weight: 47 t
Machine Dimensions: 3.54 x 2.83 x 2.3 m
Pneumatic Dressing Wheel
Coolant System with Paper Belt Filter
Central Lubrication
Spindle Cooling
Documentation
