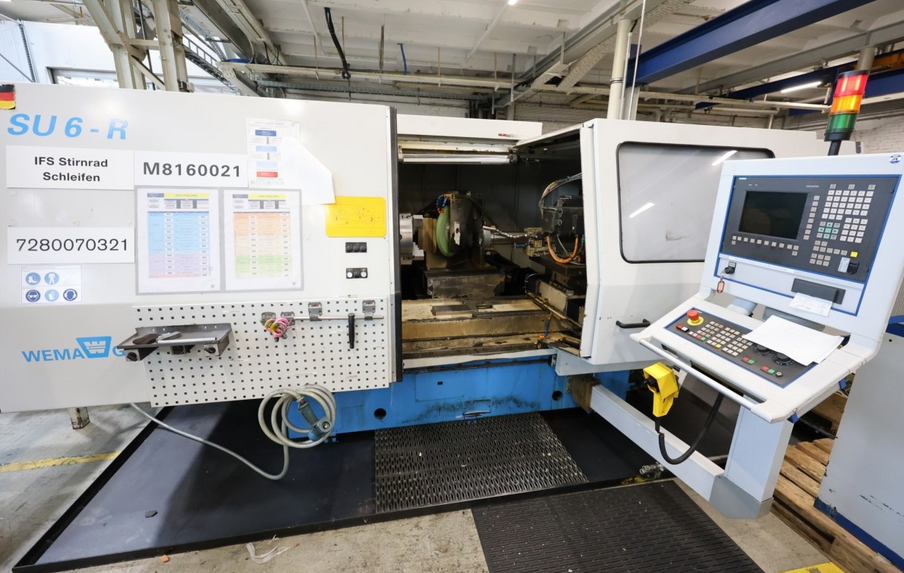

Glauchau, Wema SU 6-R

Grinding diameter cylindrical max. 650 mm
Grinding diameter internal max. 600 mm
Grinding depth max. 600 mm
Control Siemens Sinumerik 840 D
Internal diameter max. 600 mm
Grinding length max. 600 mm
External grinding length max. 600 mm
Workpiece length max. 380 mm
Turning speed range stepless 1-795 rpm
Workpiece spindle travel U axis 300 mm
Workpiece spindle swivel angle B1 axis -1°/+12°
Workpiece spindle speed range 1-795 rpm
Workpiece spindle setup speed 10 rpm
Spindle head size A 8 DIN 55026
Spindle through bore 58.5 mm
Workpiece diameter max. 830 mm
Workpiece length max. 600 mm
Load capacity spindle head max. 6100 N
Internal grinding device travel Z1 axis 800 mm
Internal grinding device travel X1 axis 150 mm
Internal grinding device swivel angle B2 axis 270°
Internal grinding spindle power 7.5 kW
Internal grinding block mounting bore 100 mm
Internal grinding block mounting length 100 mm
Internal grinding diameter max. 600 mm
Internal grinding depth max. 860 mm
Manual longitudinal adjustment internal grinding axis 530 mm
External/surface grinding device travel Z2 axis 800 mm
External/surface grinding device travel X2 axis 470 mm
External grinding spindle power 5.5 kW
External grinding block mounting bore 120 mm
External grinding diameter max. 6500 mm
External grinding length max. 600 mm
Grinding wheel diameter max. 500 mm
Various grinding spindles
Various flanges/grinding wheel holders
Various clamping jaws
Coolant system
Oil mist filter
Cooler
Technical documentation
