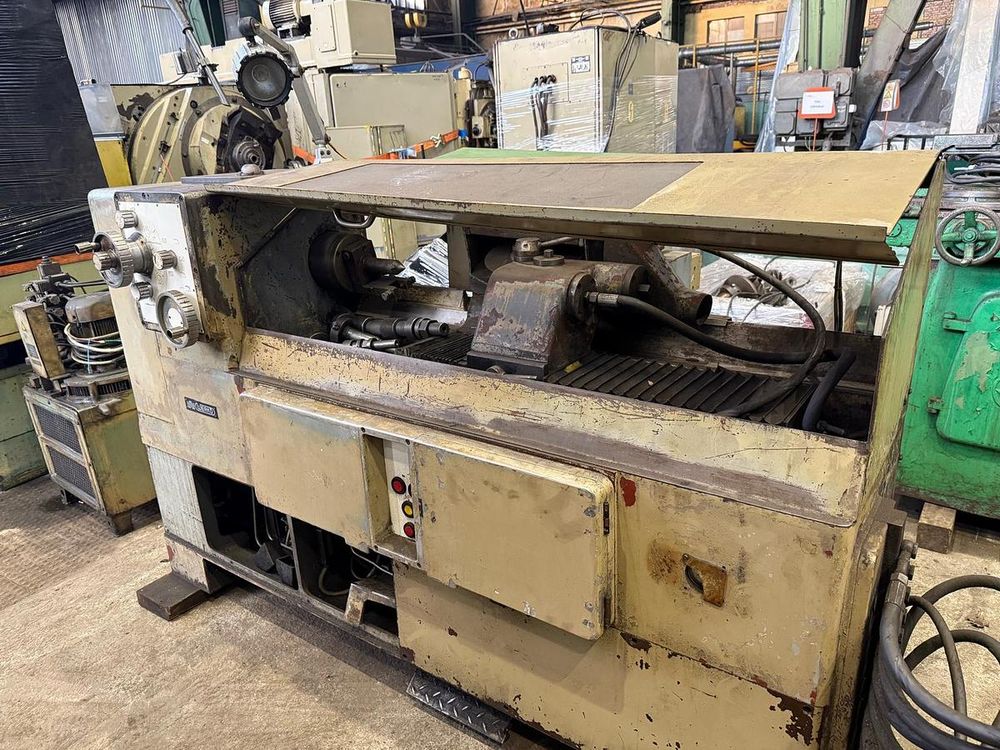

WERKO SWFW 250

WERKO SWFW 250

Maximum milling diameter 260 mm
Maximum milling length 400 mm
Maximum tool weight 80 kg
Module range 1–20 mm
Maximum chip groove depth 60 mm
Chip groove helix pitch 220–10,500 mm
Radial head travel 130 mm
Vertical head travel 50 mm
Head swivel range ±30°
Maximum saddle travel 500 mm
Control cabinet dimensions 1300×700×1960 mm
Machine dimensions 2450×1410×1600 mm
Machine power 6 kW
Rated voltage 380 V
Control cabinet weight 700 kg
Total machine weight 2500 kg
