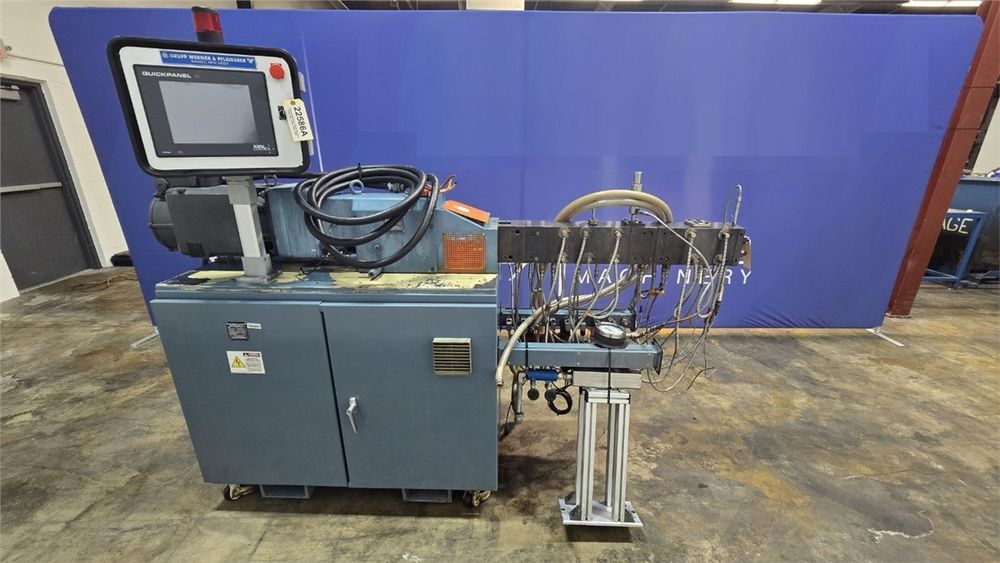

Krupp, Werner ZSK-25 Extruder

25mm Krupp Werner ZSK-25 Extruder, L/D: 36:1, Side Feeder
9 Barrel Segments, Barrel Vents in Zone 6 & 8
5 Temperature Control Zones
Infeed Height: 48"
2" x 2" Square Feed Throat
1120 Screw RPM
40 HP Siemens VFD Duty Spindle Style Motor, Type:1PH8133 1HG03 2BA1
480/3/60, 41.0 A, 25.0 kW (33.5 HP), 94.7 Hz, 2800 RPM, cosf 0.83, Duty S1
Allen Bradley PowerFlex 755 AC VFD, Cat. No: 20G11ND052
Input: 480/3/60, 47.7A
Output: 0-460/3/60, 52A (Normal Duty) - 40A (Heavy Duty)
P.I.V. Antrieb Speed Reducer, Type: 21.1P82M
Gearbox Rated Output Speed 1200 RPM
Gearbox Rated Output Torque @ Shaft: 65 Lbs/Ft
2.5:1 Ratio
5 Eurotherm 2216e Temp Control Panels Inside The Cabinet
Total Control Quickpanel HMI
Analog Pressure Gauge
100 Amp Main Disconnect
Approximate Dimensions: 96" L x 38" W x 73" H
